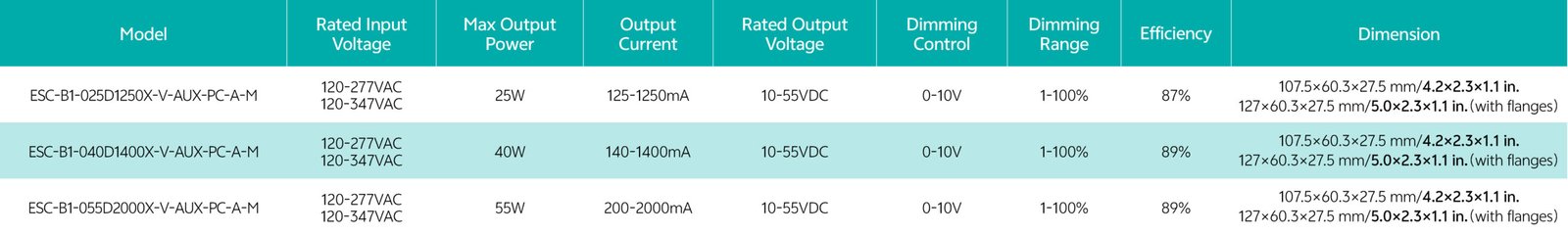

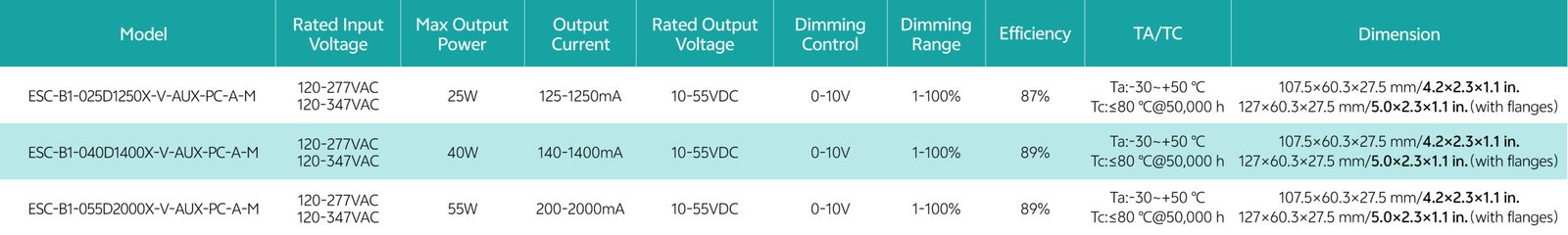

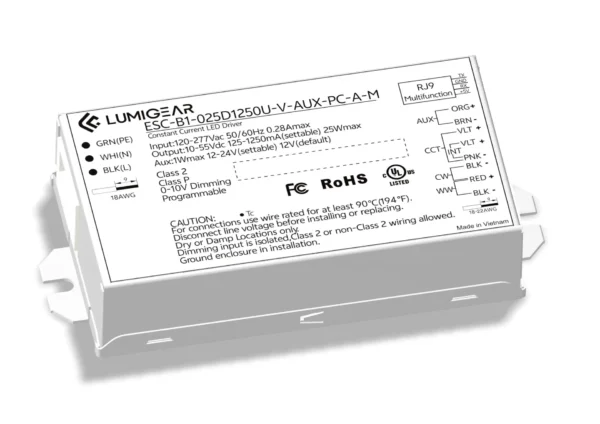

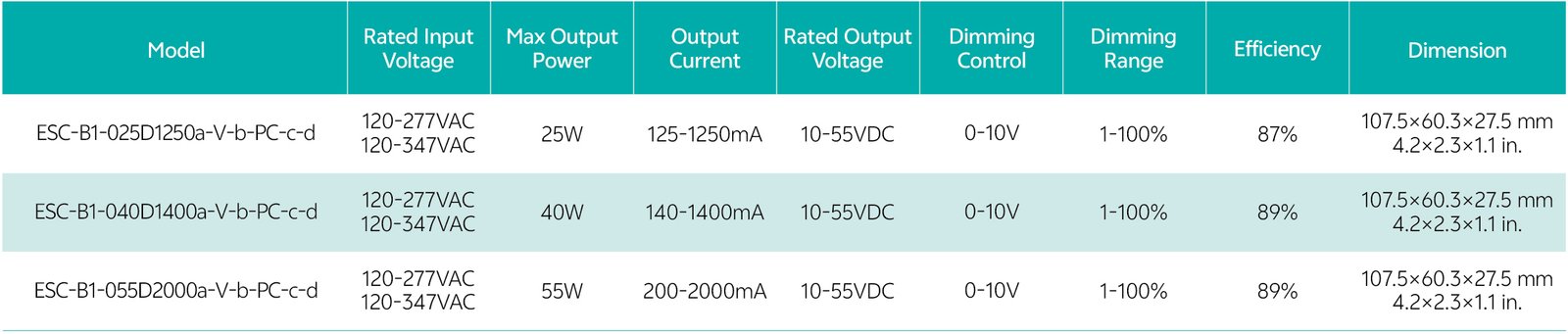

ESC-B1-25W|40W|55W

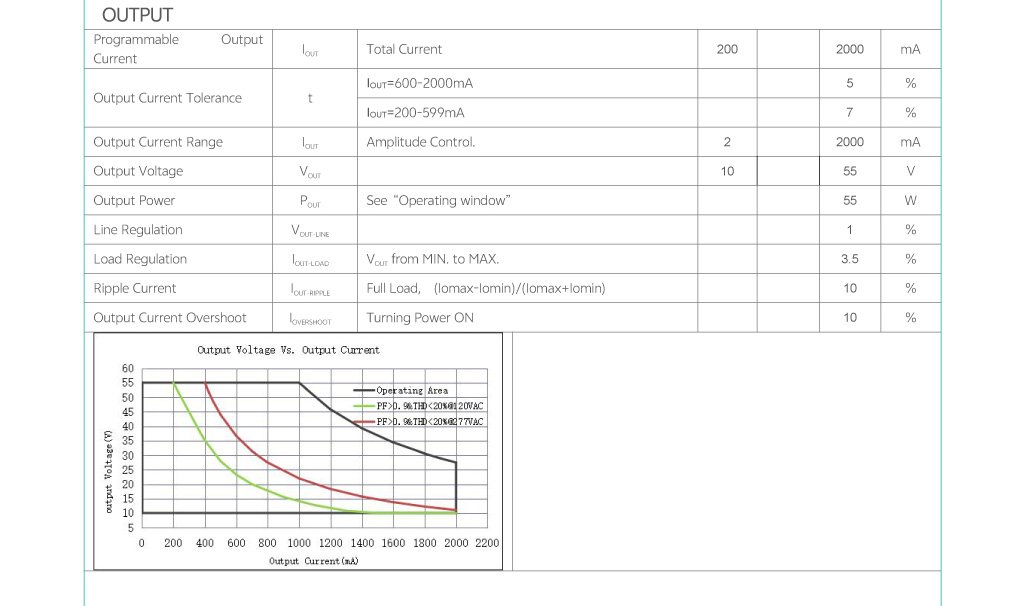

• Wide current range coverage: 125-2000 mA
• Wide voltage range coverage: 10-55 VDC
• Compact form factor, metal sheet case

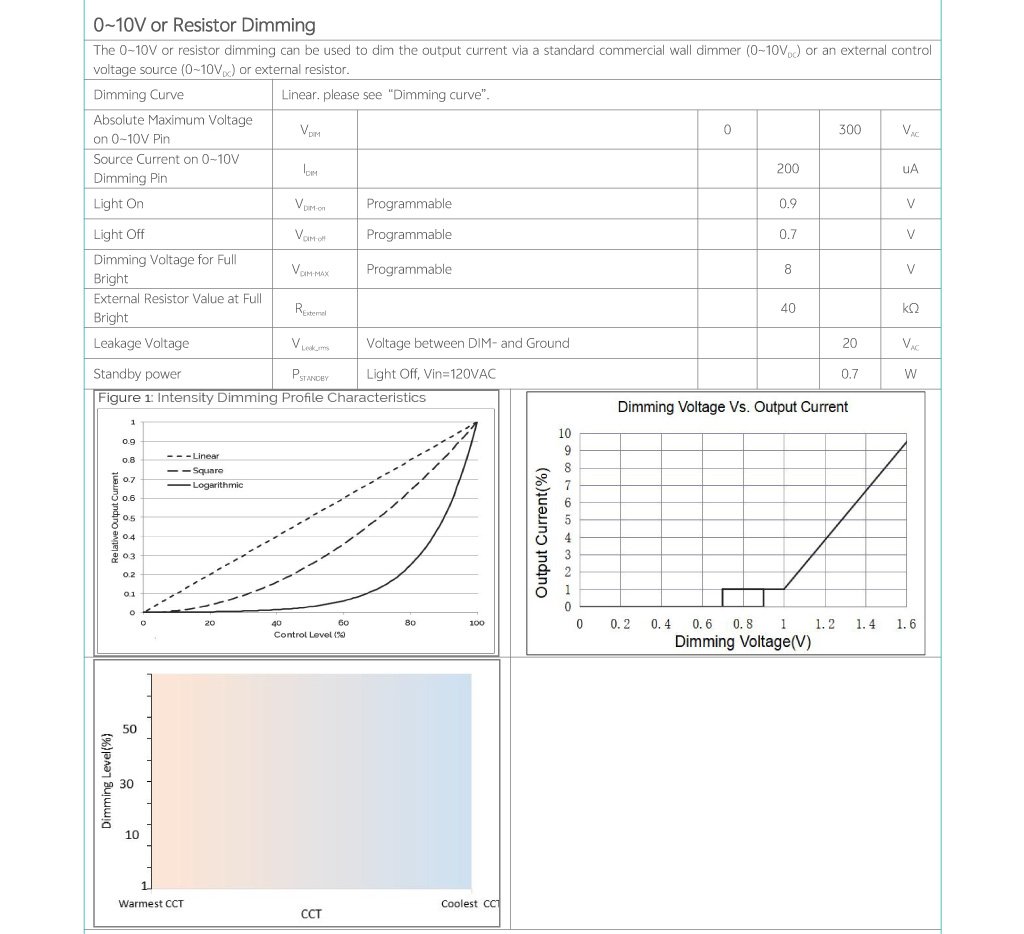

• Two Isolated 0-10V dimming Interfaces,dimming down to true 1%
• Flicker‐free, excellent camera compatibility

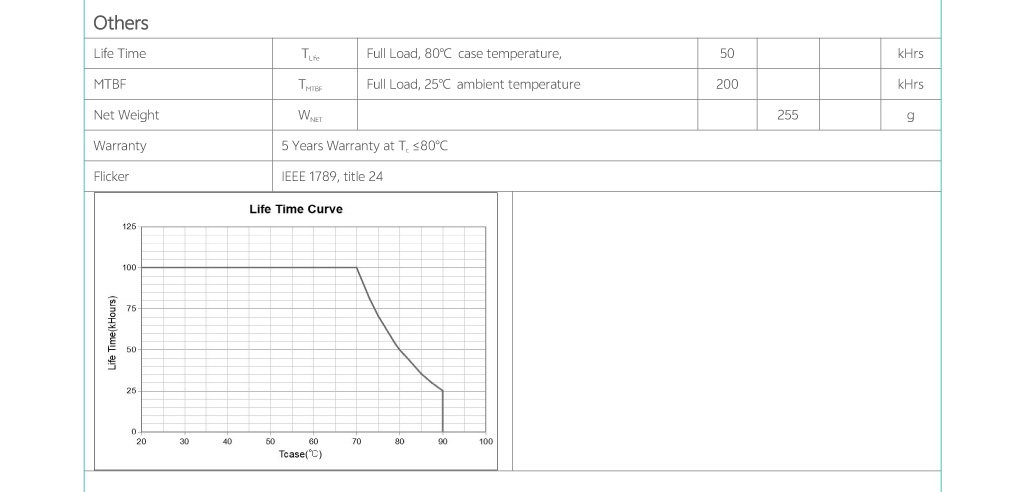

• Nominal lifetime up to 50,000 hours
• 5‐year warranty

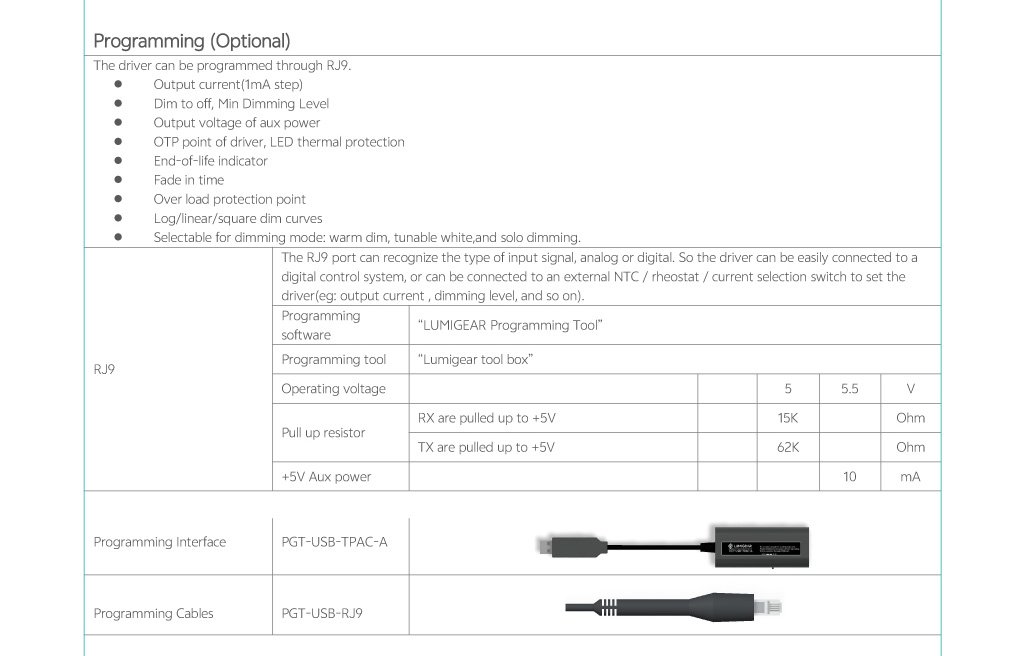

• Programmable Features:

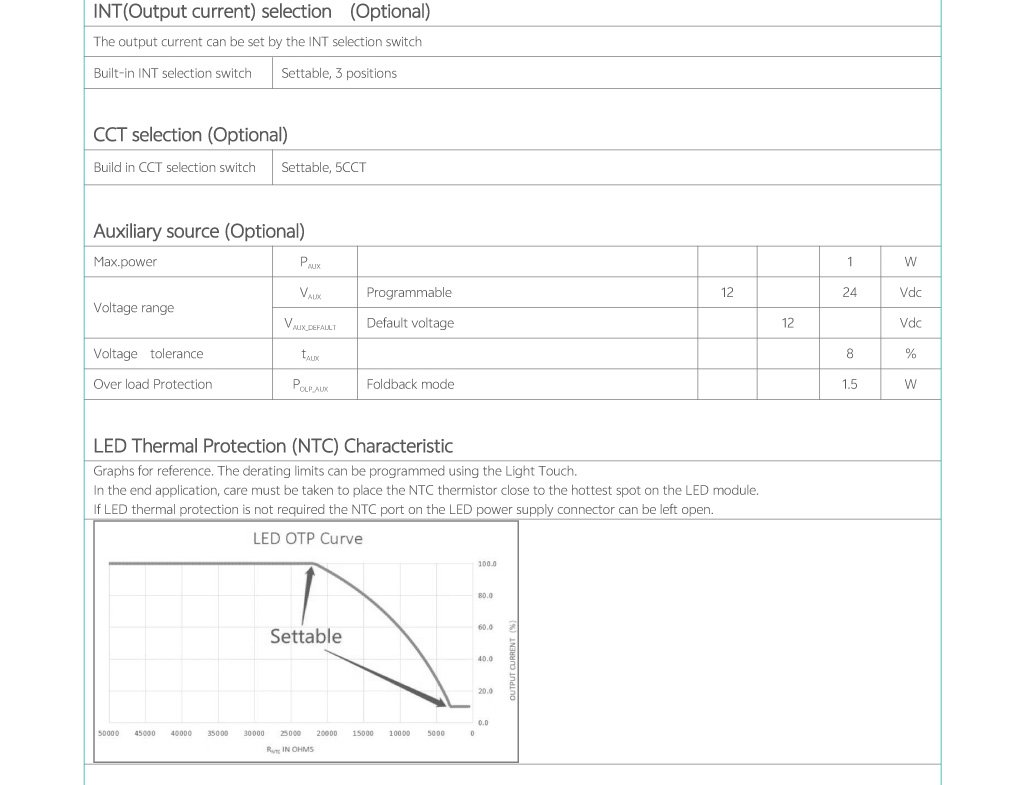

• Output current, dim to off, min dimming level,output voltage of aux power
• Selectable dimming modes: warm dimming,tunable white, and solo dimming
• Log/linear/square dimming curves

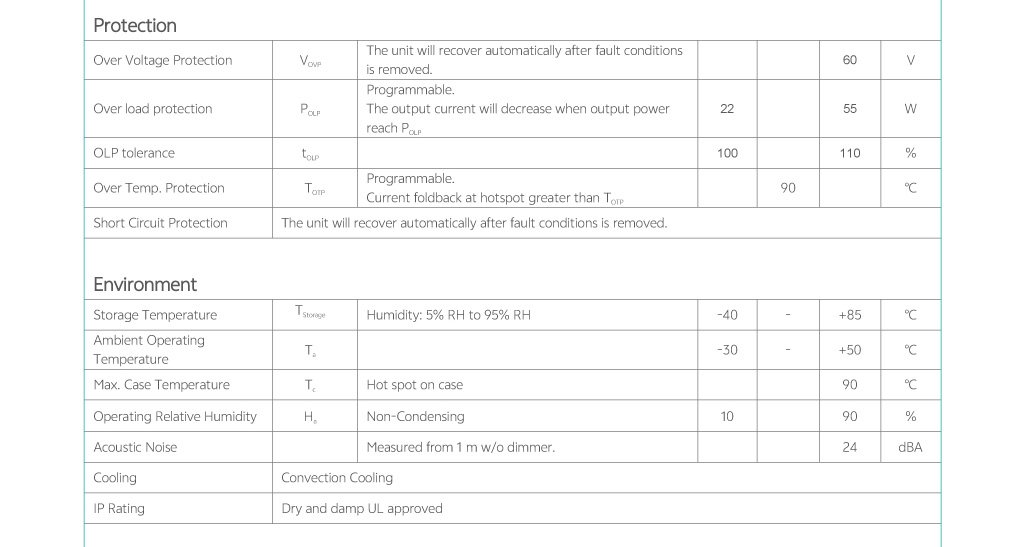

• End‐of‐life indicator, fade in time,over load protection point
• OTP point of driver , LED thermal protection

             .           .
