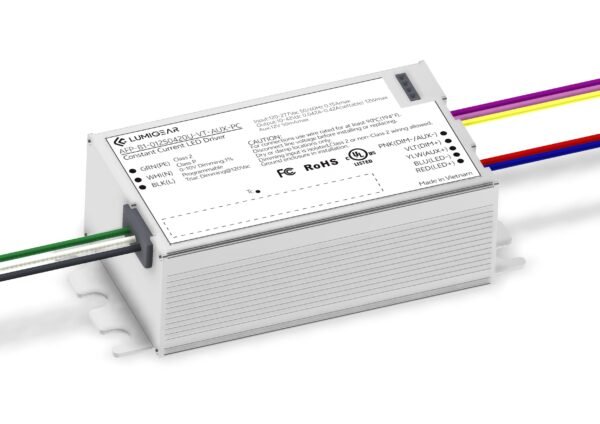

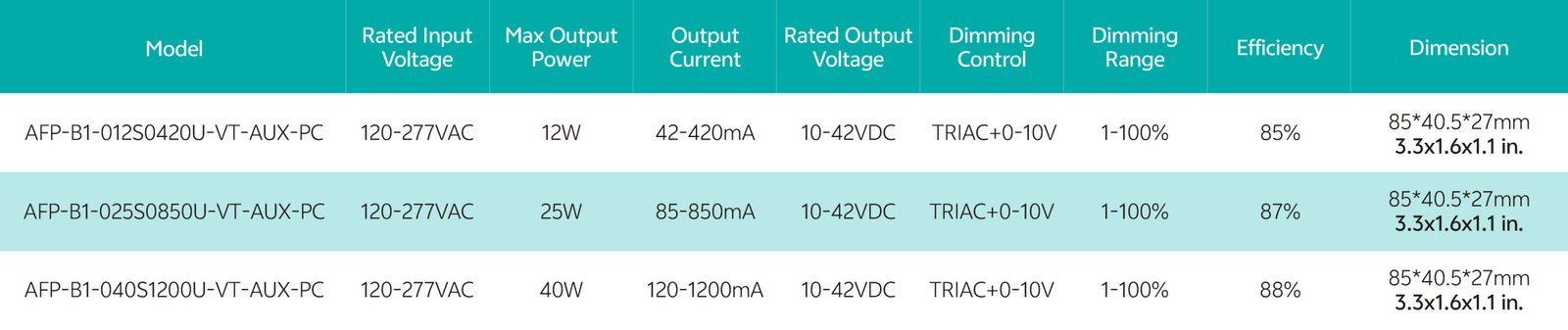

AFP-B1 Family: 12W 25W 40W

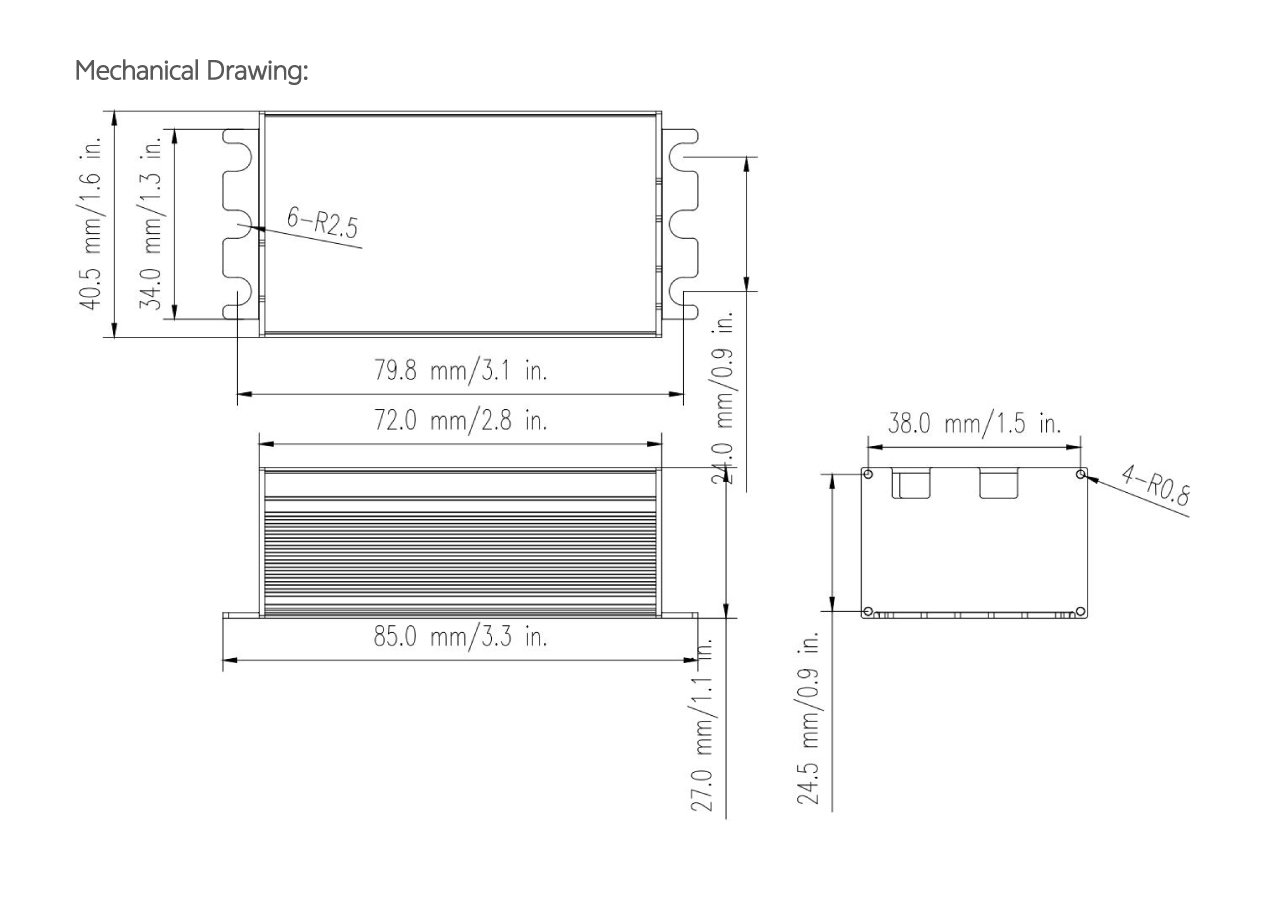

• Extreme compact form factor

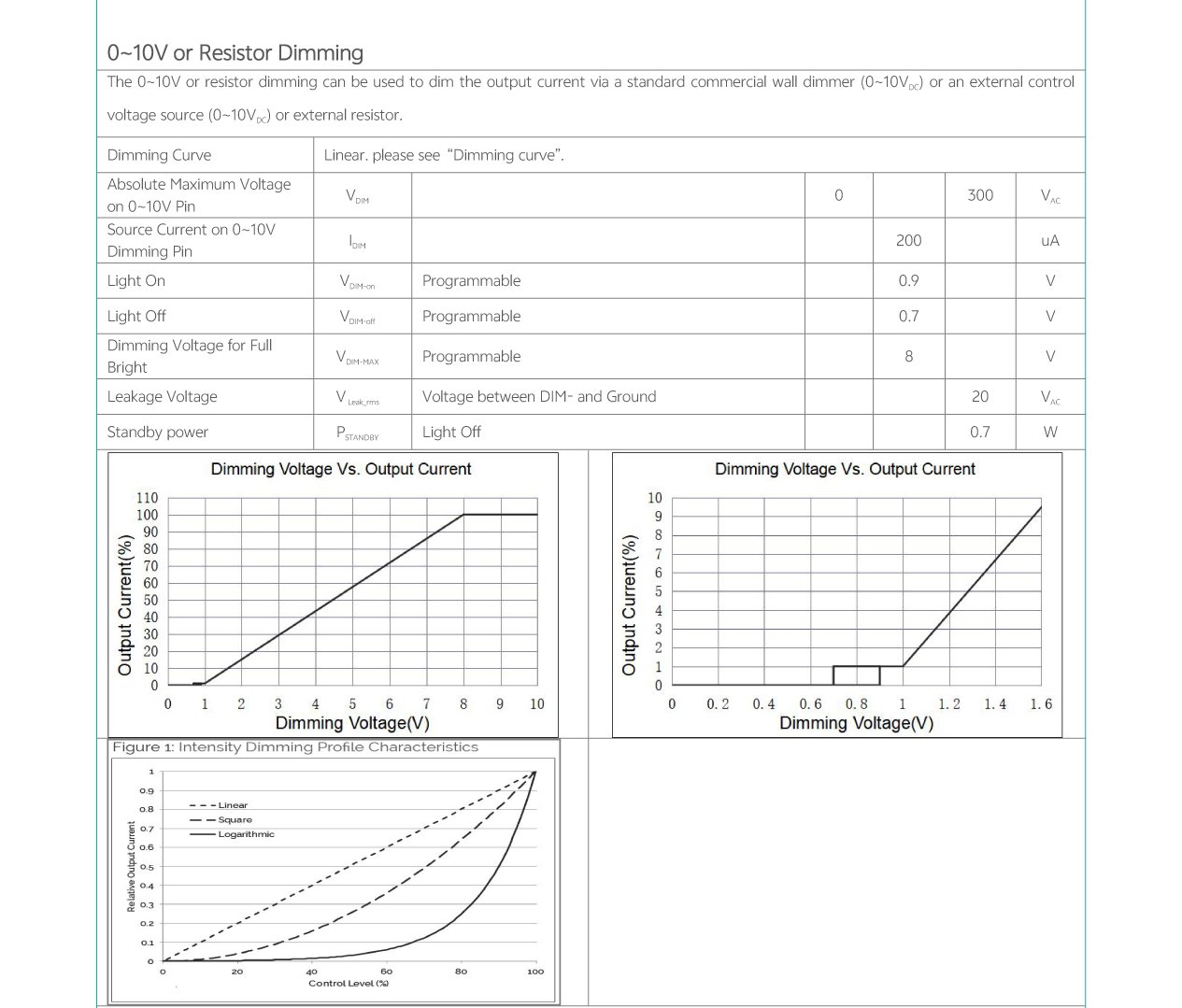

• Five‐in‐one dimming: 0-10V,1-10V,MLV,ELV,TRIAC
• True 1% dimming over full output current range
• Wide current range coverage: 42-1200 mA
• High power density design, white aluminum sheet metal case

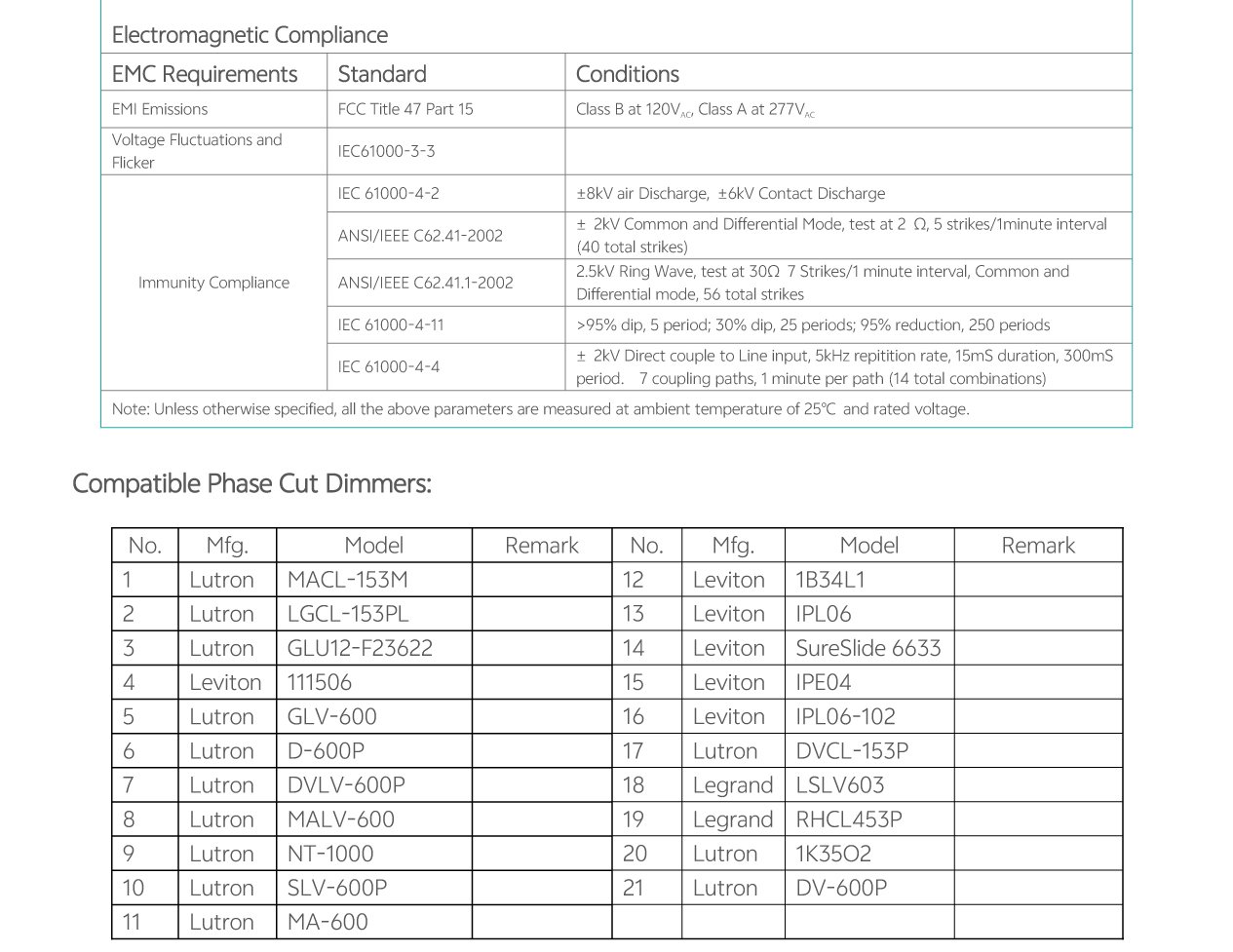

• Complies with phase cut dimming and isolated 0-10V dimming,dimming down to true 1%
• Suitable for indoor use
• Flicker‐free, excellent camera compatibility

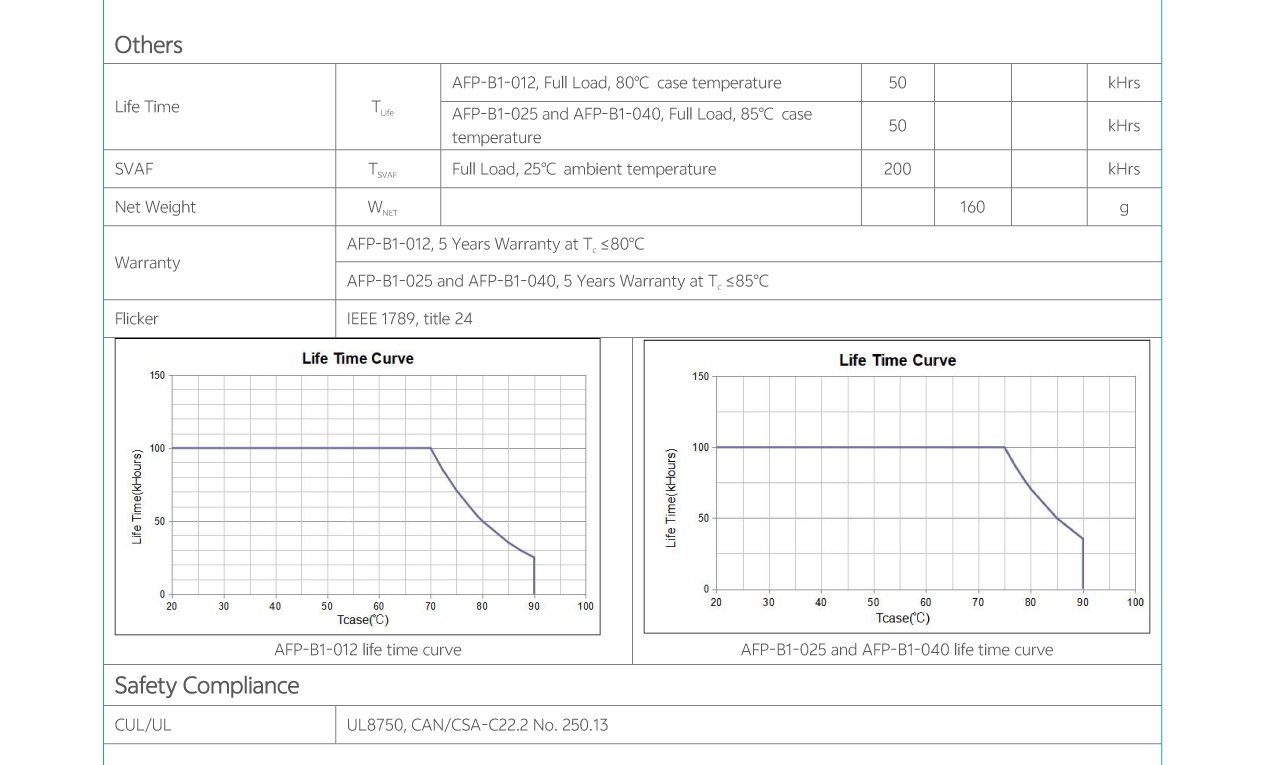

• Nominal lifetime up to 50,000 hours
• 5‐year warranty

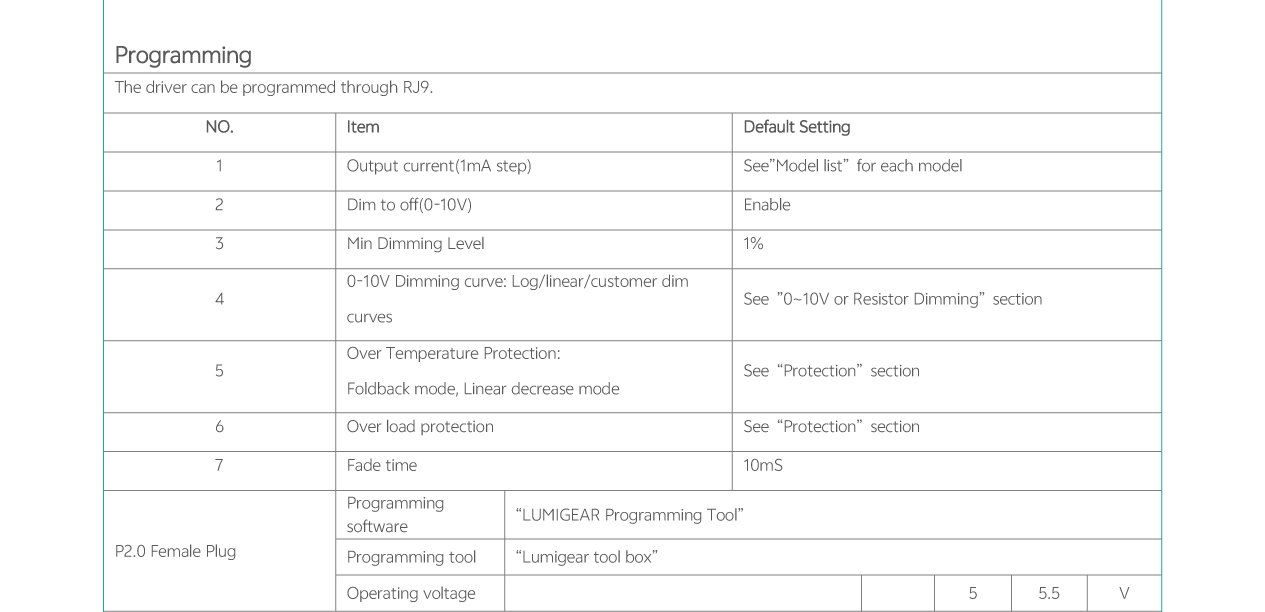

• Programmable Features
• Programmable conduction angles with turn‐on &turn‐off for TRIAC & ELV
• Dim to off, min dimming level
• Output current(1mA step)
• Dimming curve: log/linear/square dimming curves

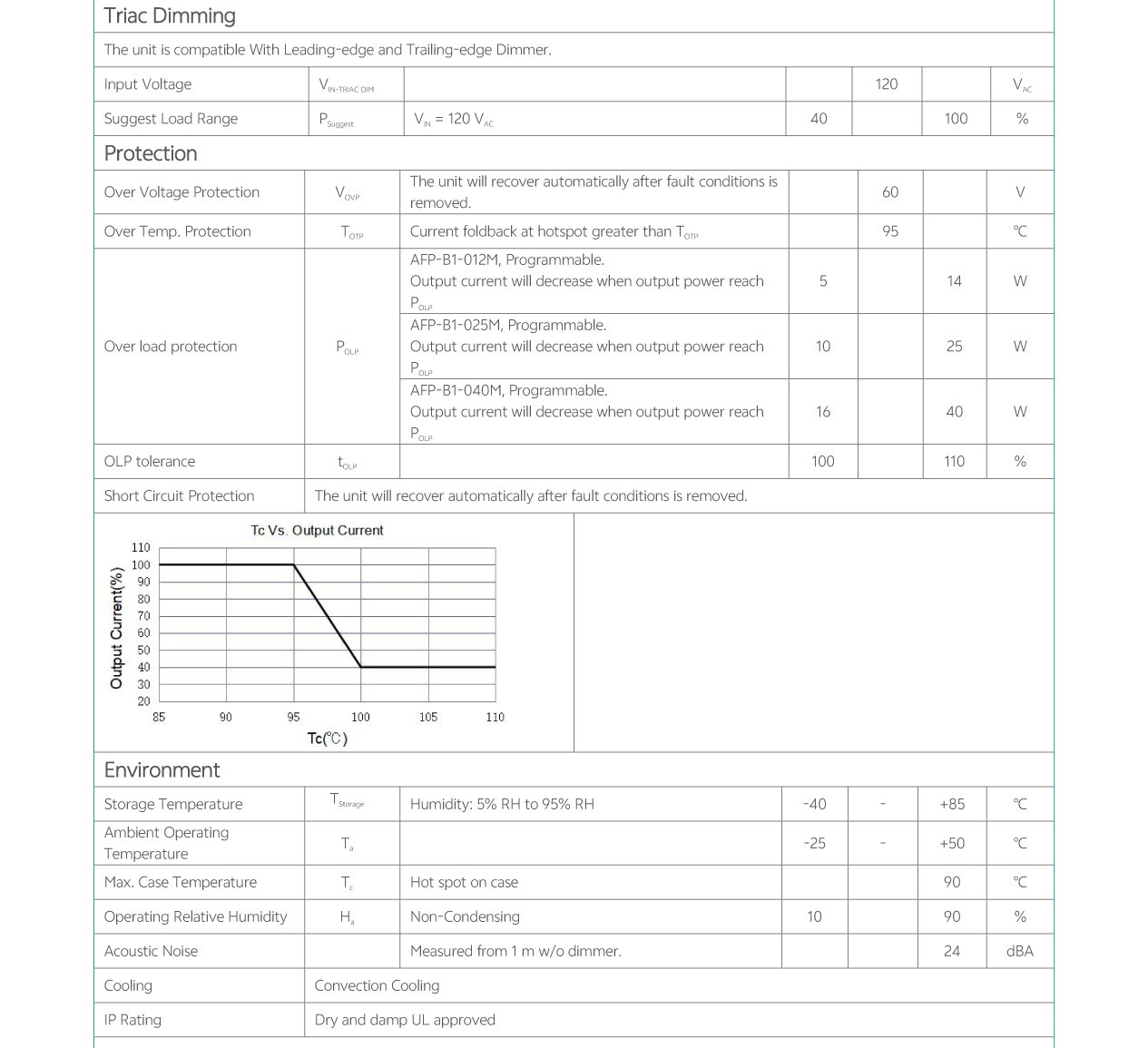

• OTP mode: foldback mode, linear decrease mode
• Dimming fade time
• Overload protection

             .           .
