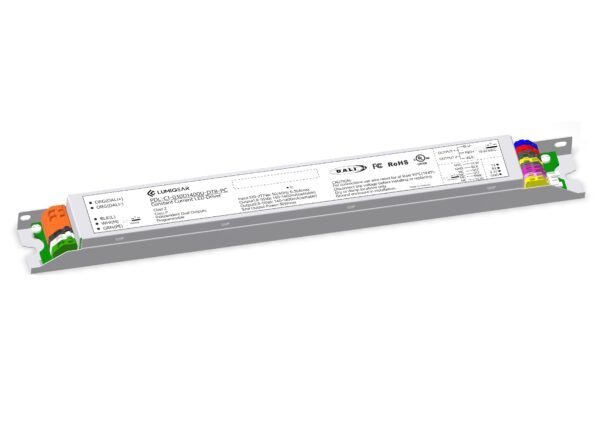

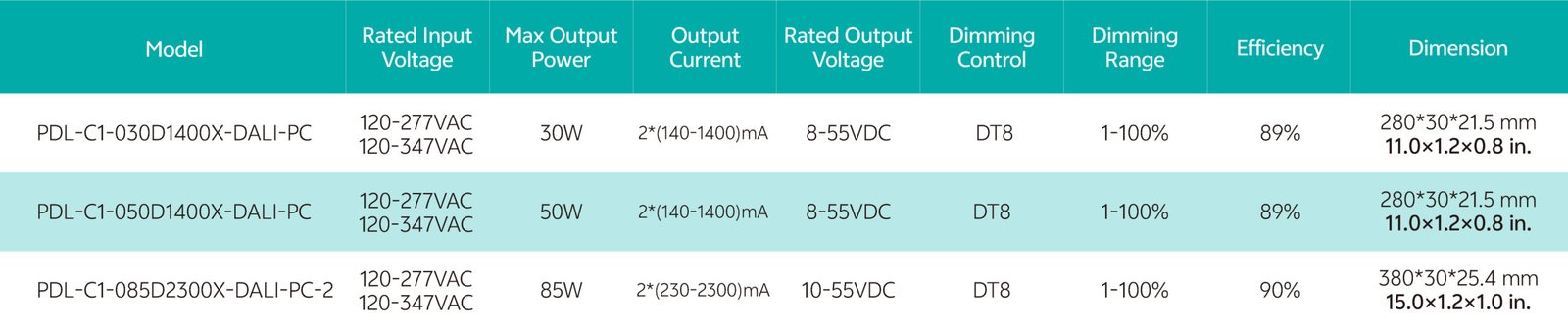

PDL-C1 Family: 30W 50W 85W

• Wide current range coverage: 140-2300 mA
• Wide voltage range coverage: 8-55 VDC

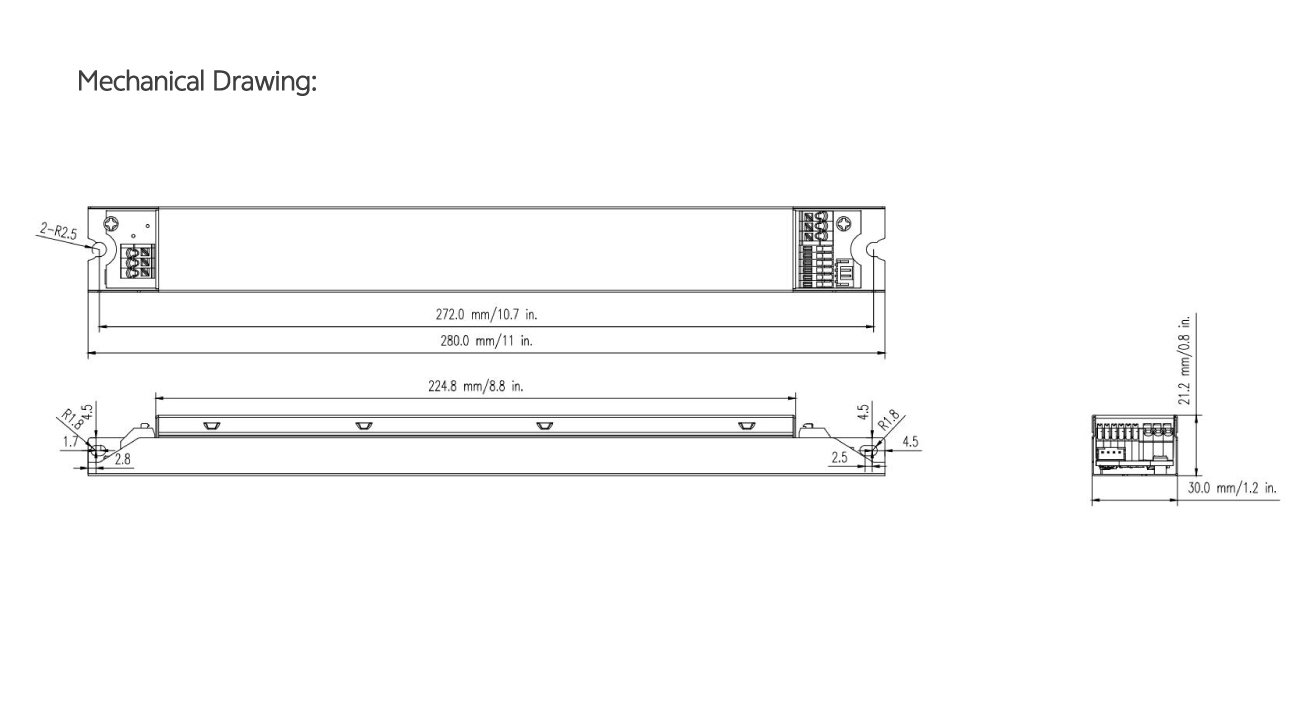

• Linear form factor, metal sheet case(white), side feed
• Dimmable built‐in constant current independent dual outputs LED driver, dimmimg down to true 1%.
• DALI-2 Standard: IEC62386-101{ed2.0}-2014,IEC62386-102{ed2.0}-2014, IEC62386-207{ed2.0}-2018,IEC62386-209{ed1.0}-2011
• Suport DALl‐2 Part: 250 251252 253
• Low standby power: <0.7W@120VAC
• Suitable for indoor use

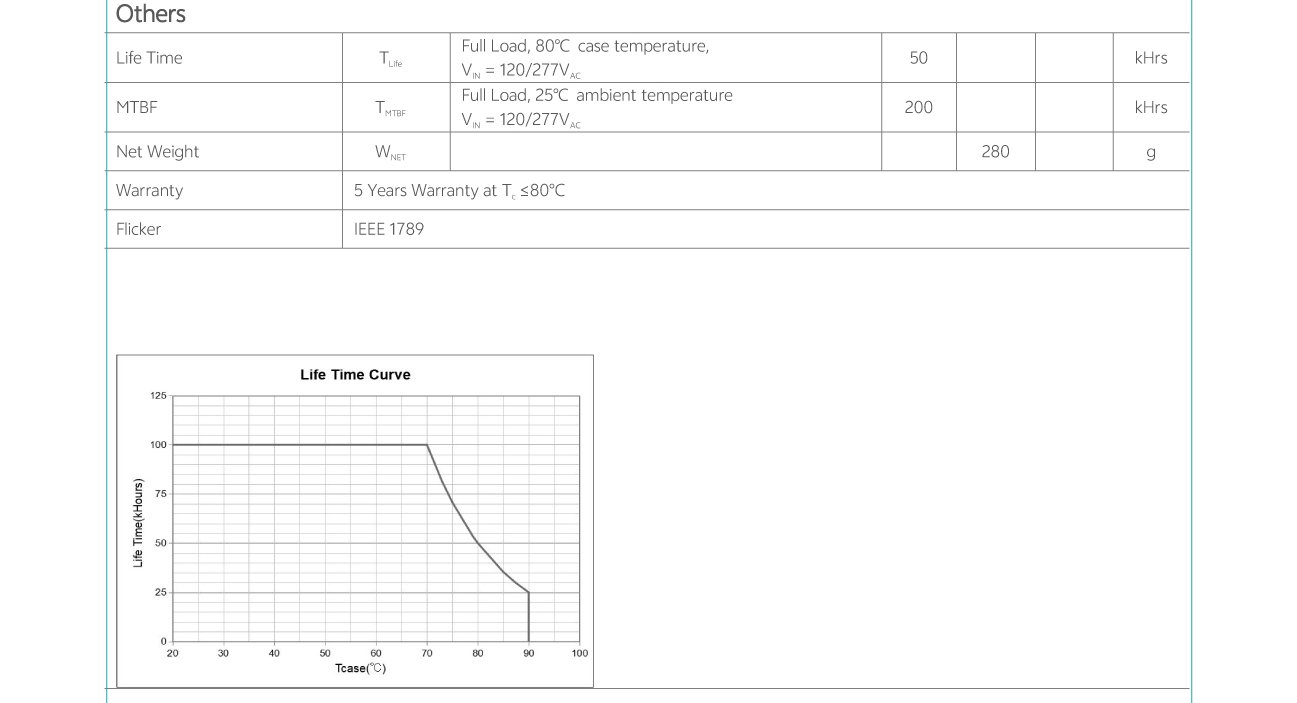

• Nominal lifetime up to 50,000 hours
• 5‐year warranty

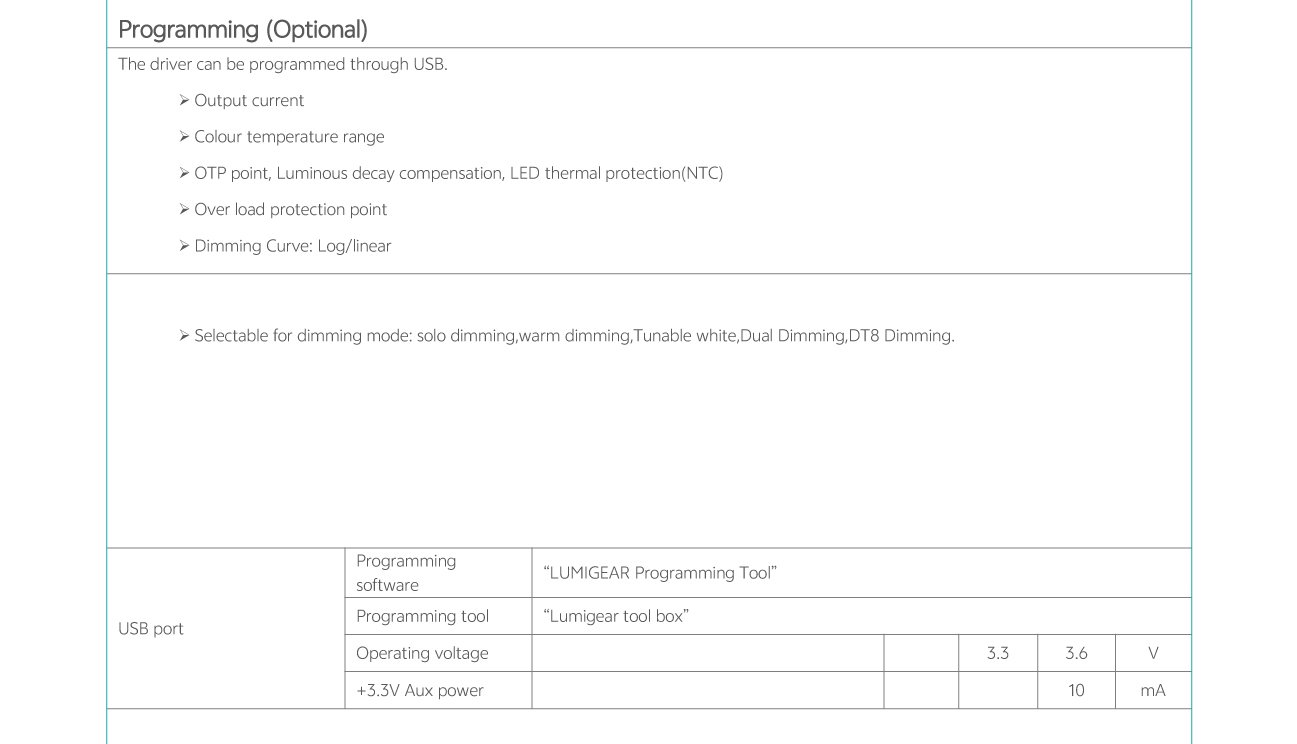

• Programmable Feature：
• Selectable dimming modes:solo dimming, warm dimming, tunable white, dual dimming, DT8 dimming.

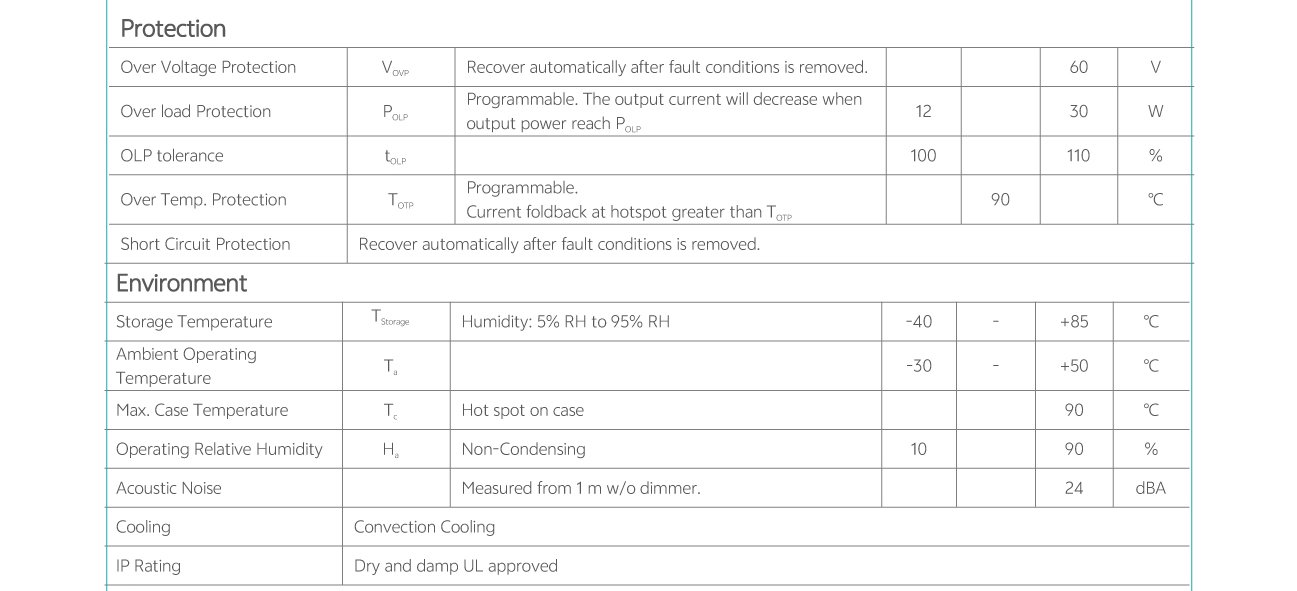

• Overload protection point

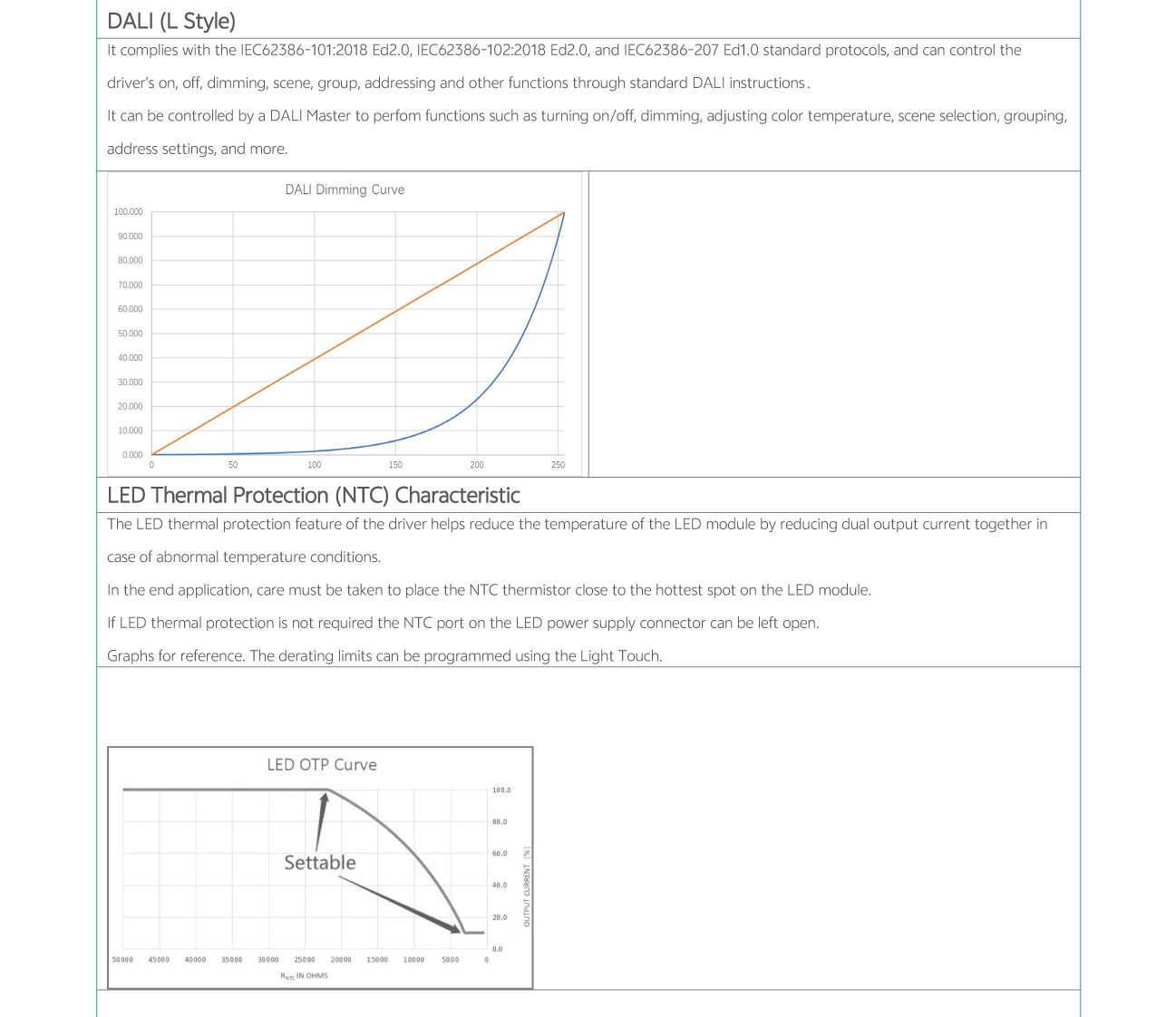

• Dimming curve: log/linear
• OTP point, luminous decay compensation, LED thermal protection(NTC)
• Colour temperature range

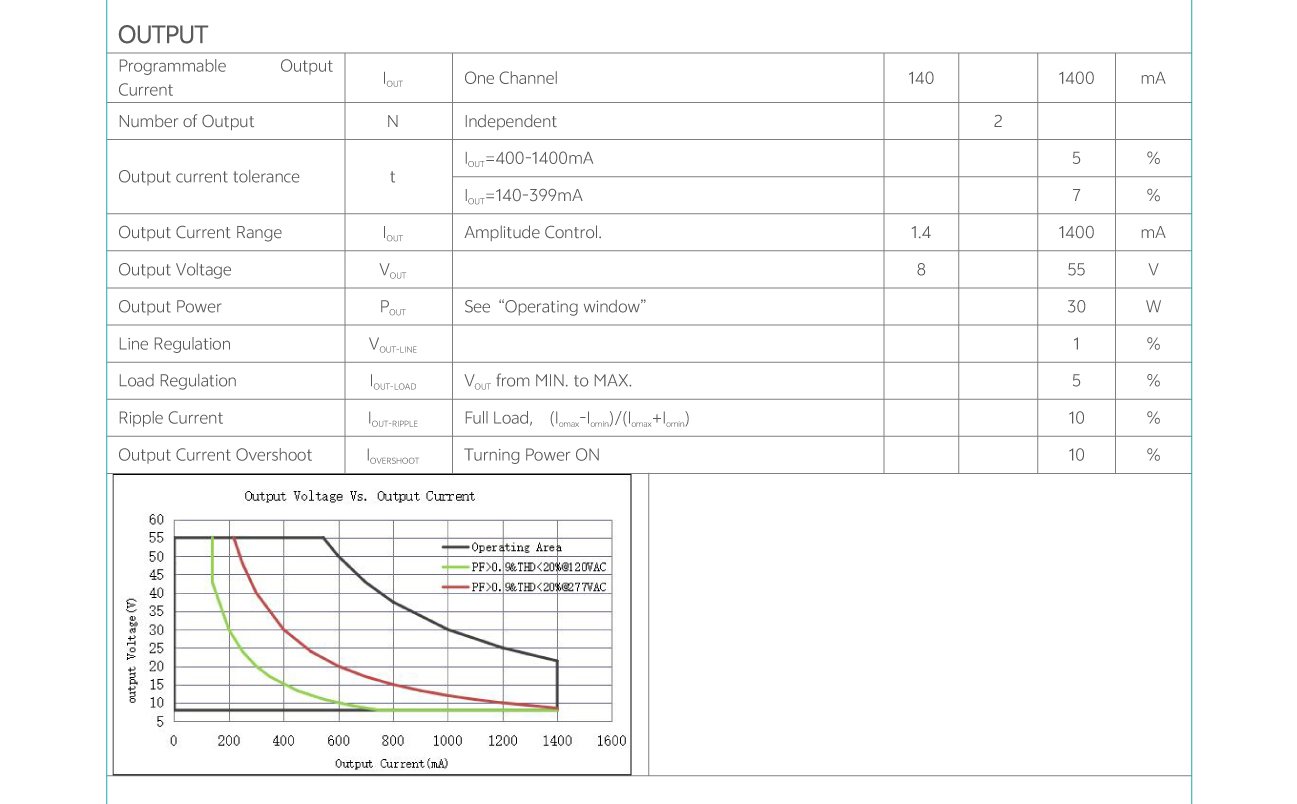

• Output current

             .           .
