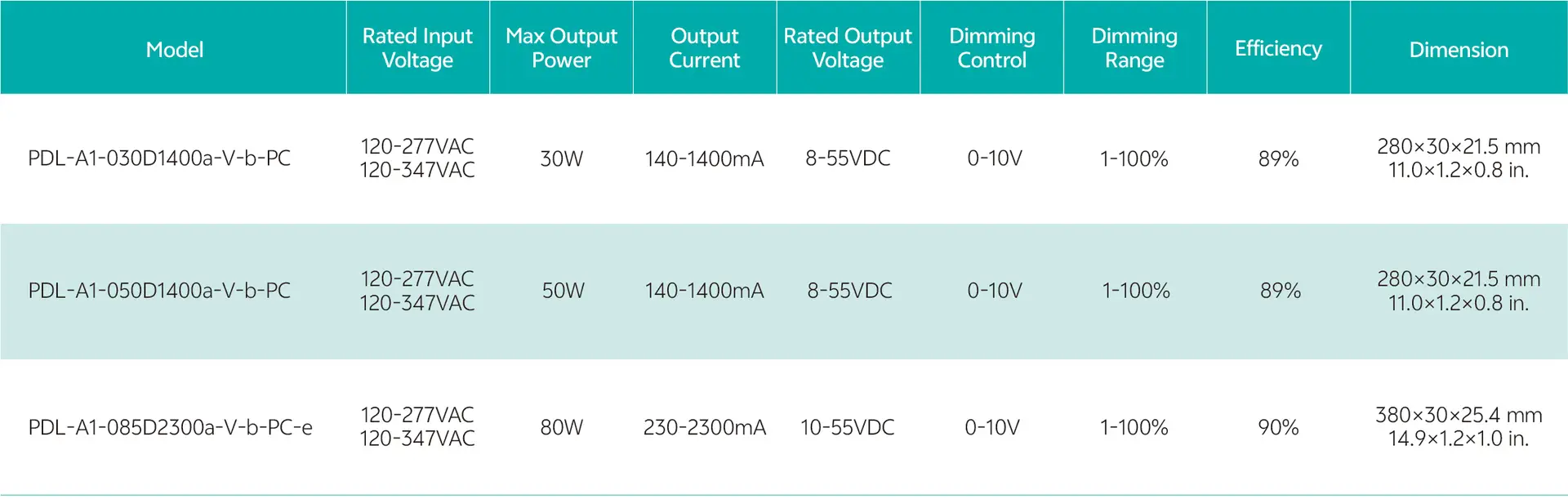

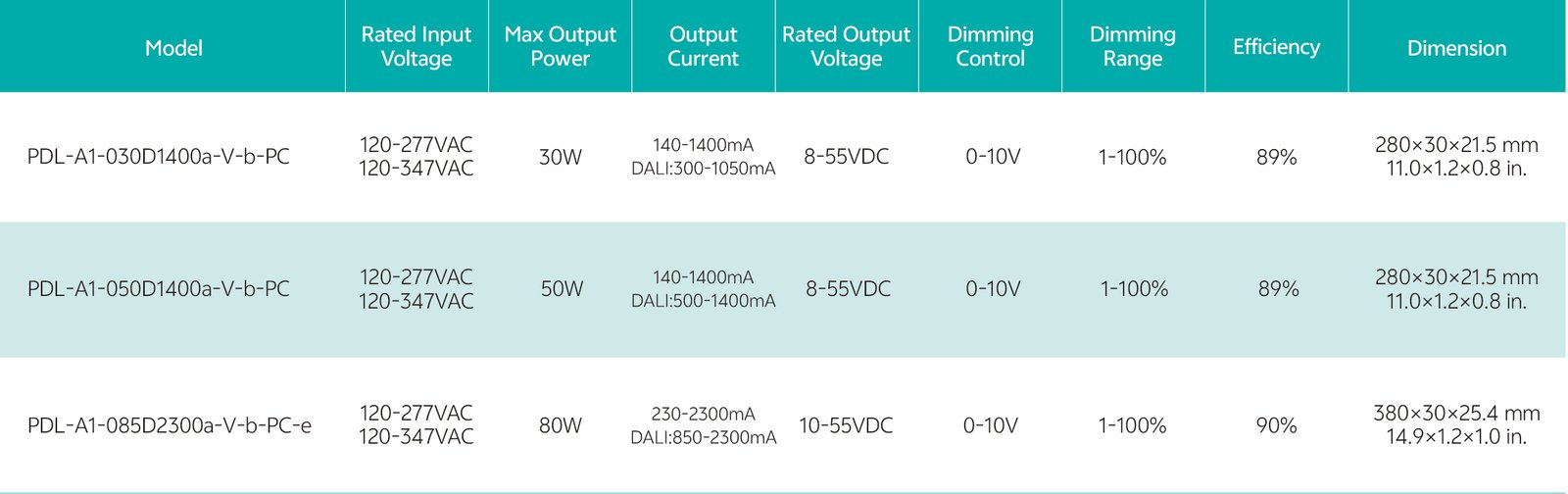

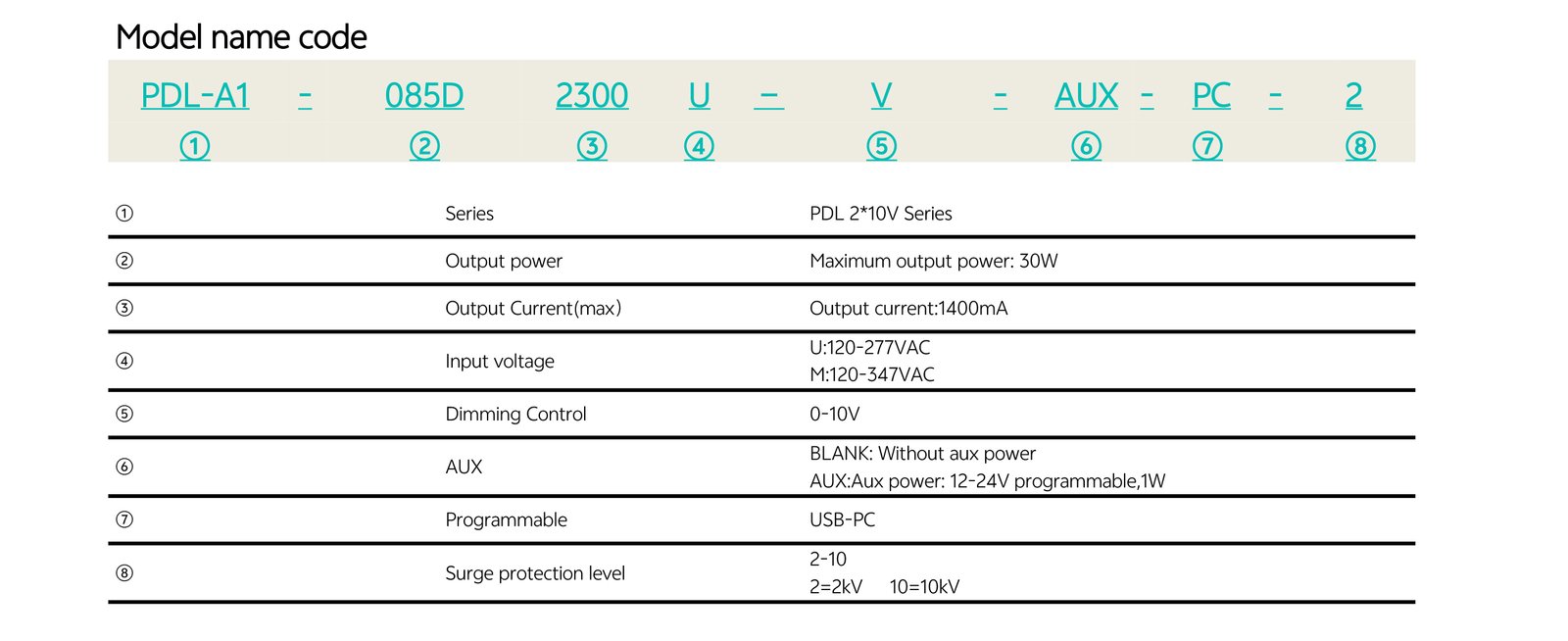

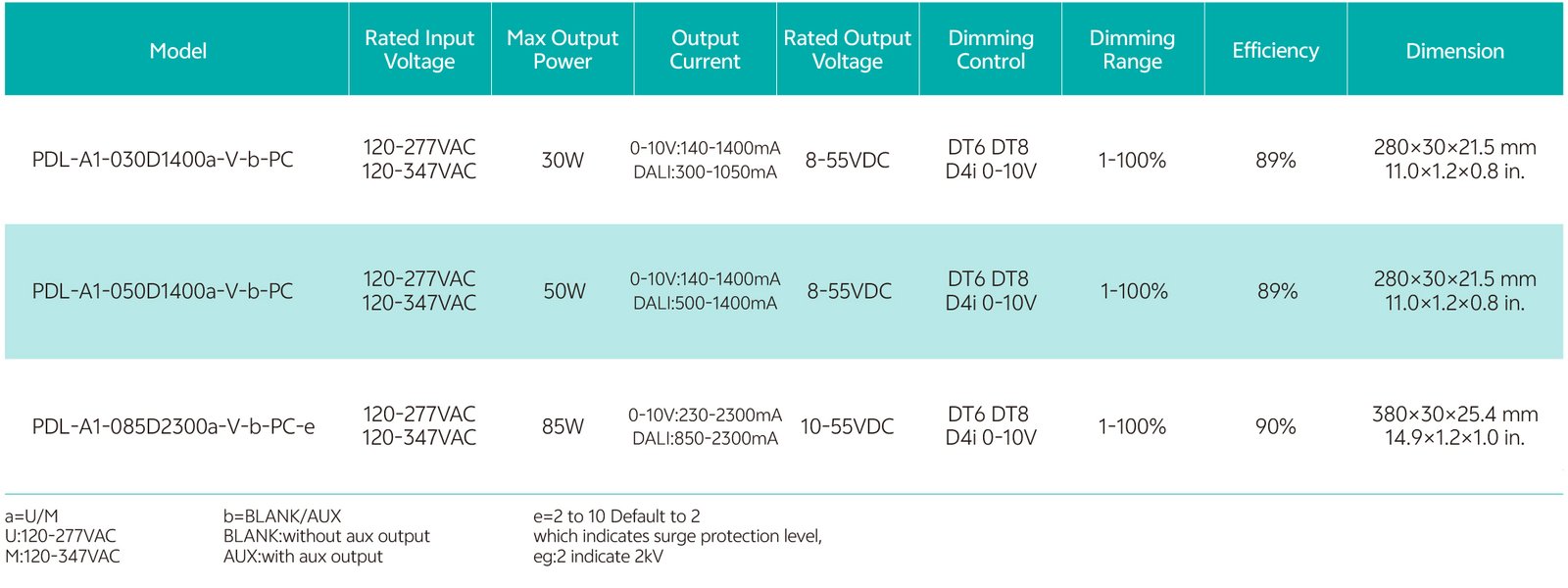

PDL-A1-30W|50W|85W

• Universal AC Input Voltage(120-277VAC)

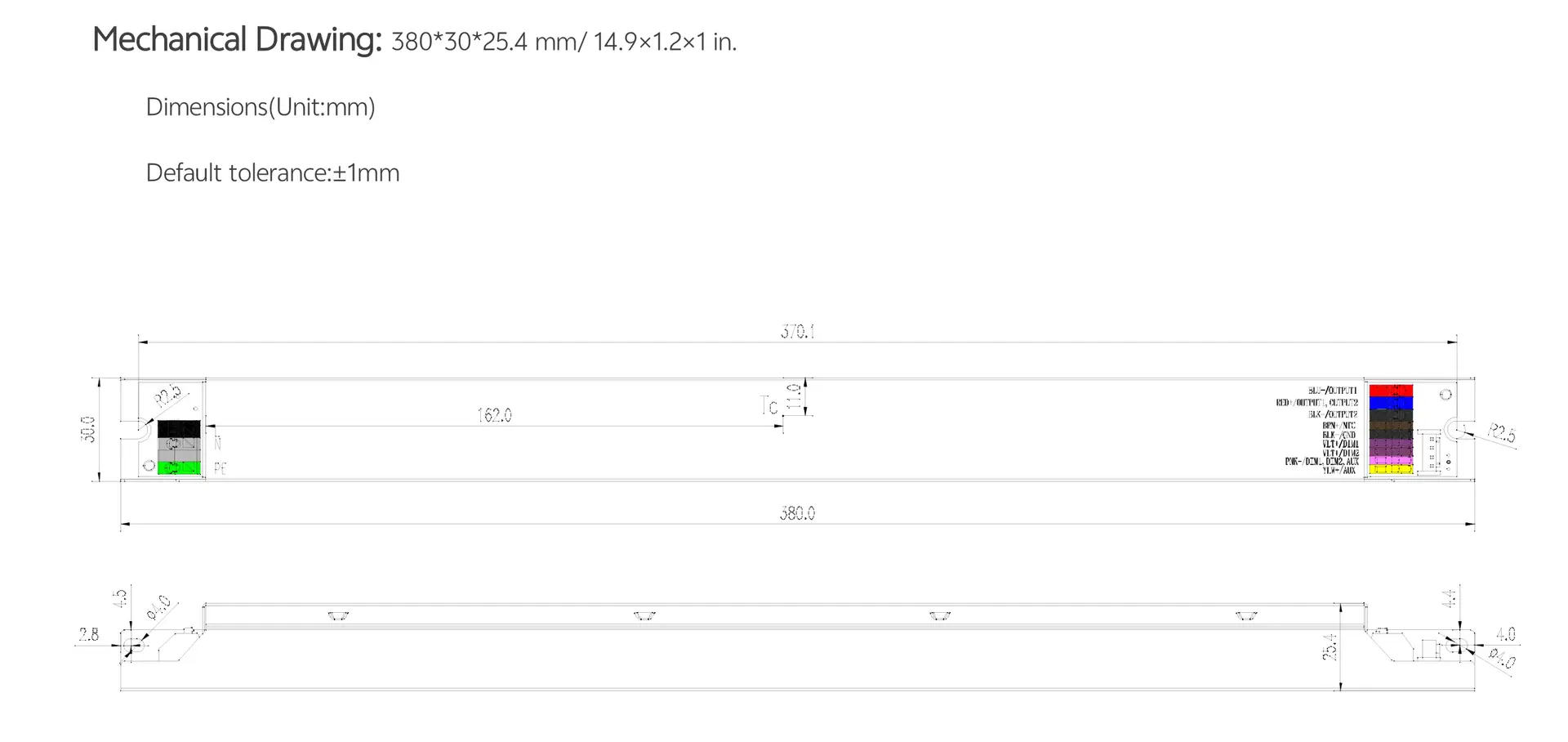

• Linear form factor, Metal sheet case(White), Side feed
• Two Isolated 0-10V dimming interfaces,dim down to true 1%, independent dual outputs
• Low standby power: <0.7W@120VAC
• Suitable for indoor use
• Flicker free, excellent camera compatibility, spec-grade smoothness
• UL Class2, Class P

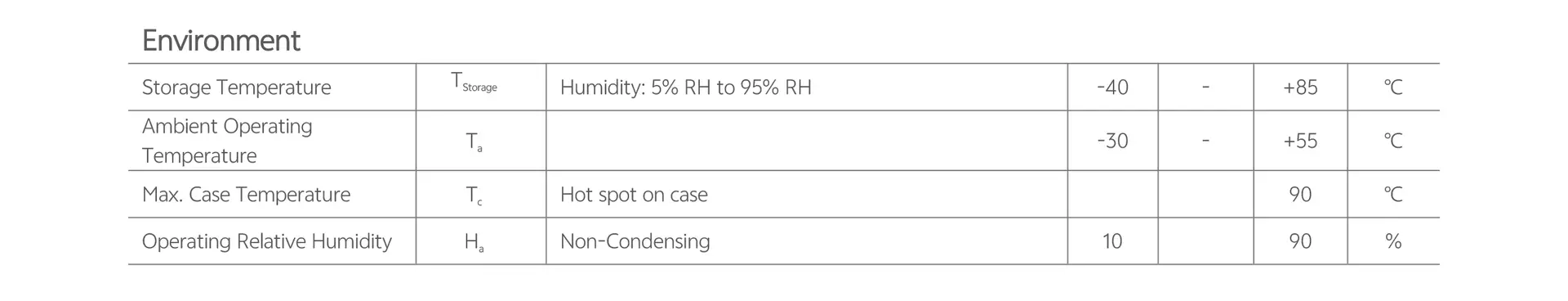

• Operating temperature: -30℃~+55℃

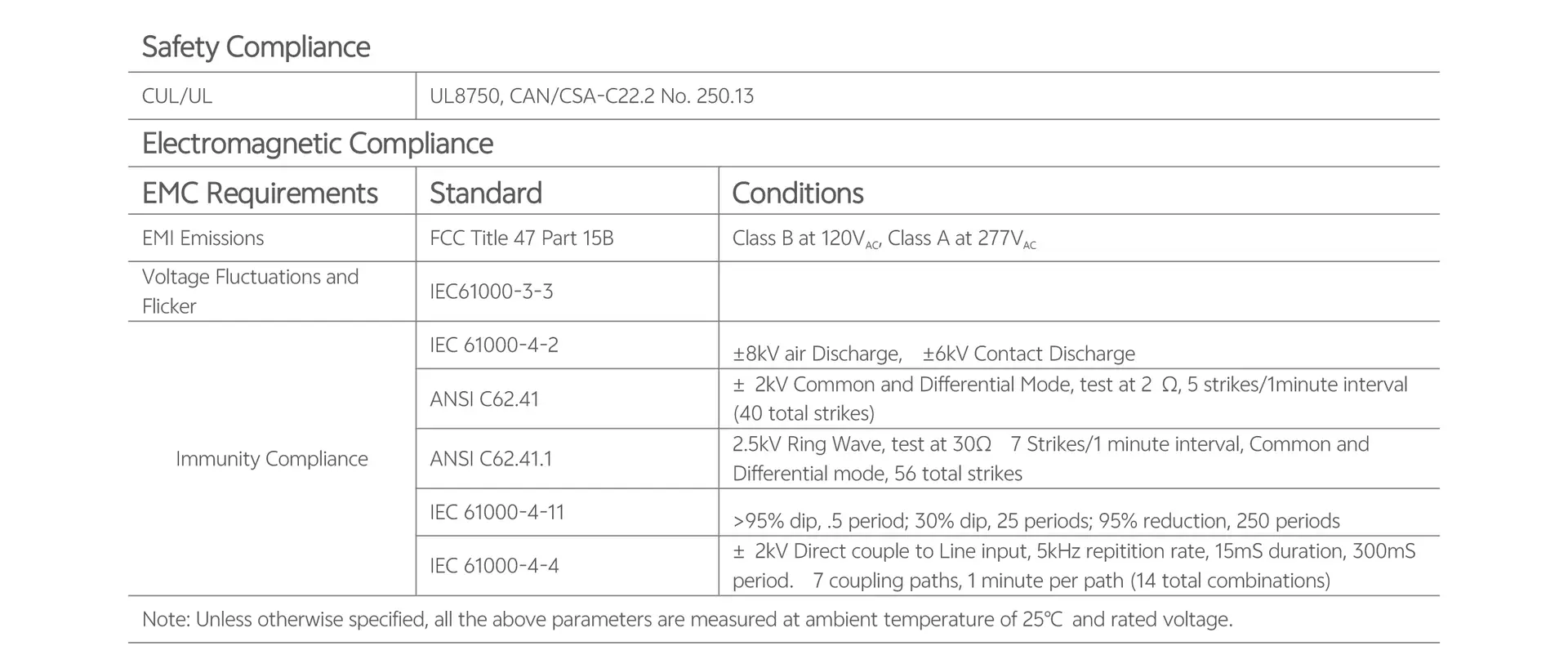

• ComplyIEEE1789, UL8750

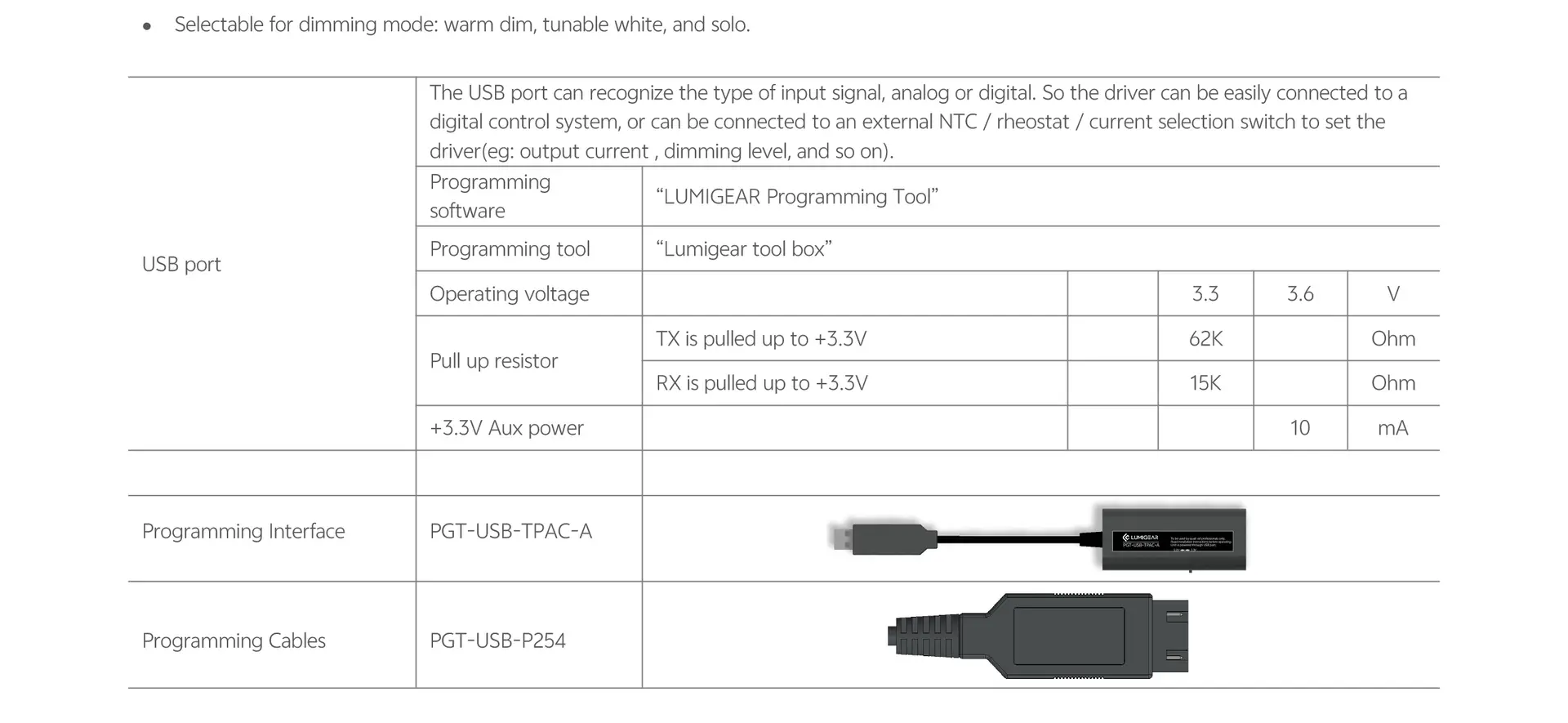

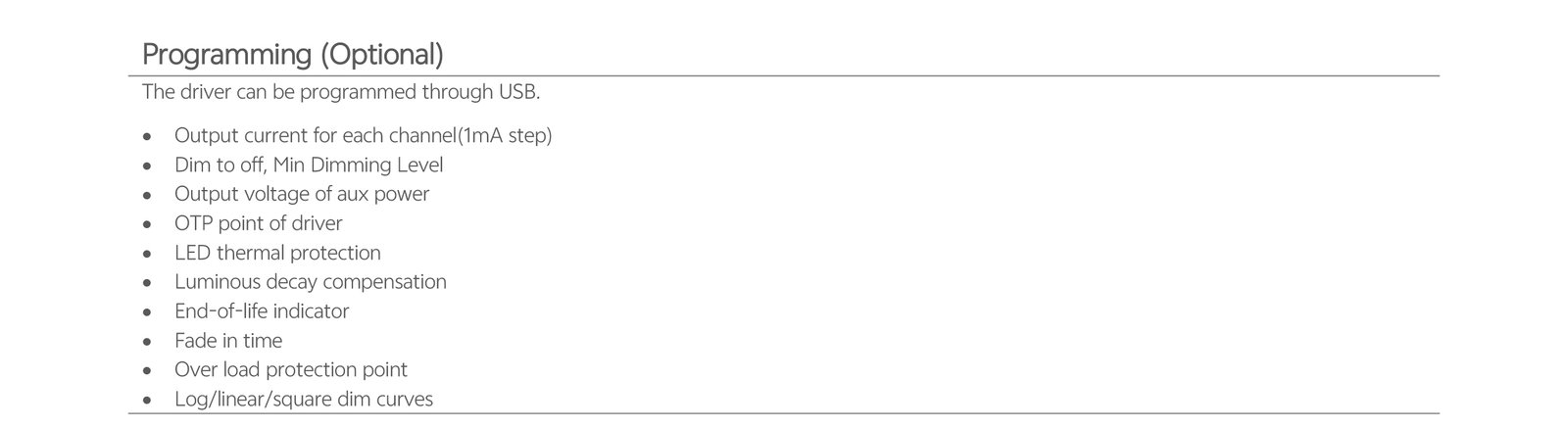

• Programmable Feature：
• Output current, Dim to off, Min Dimming Level, Output voltage of aux power

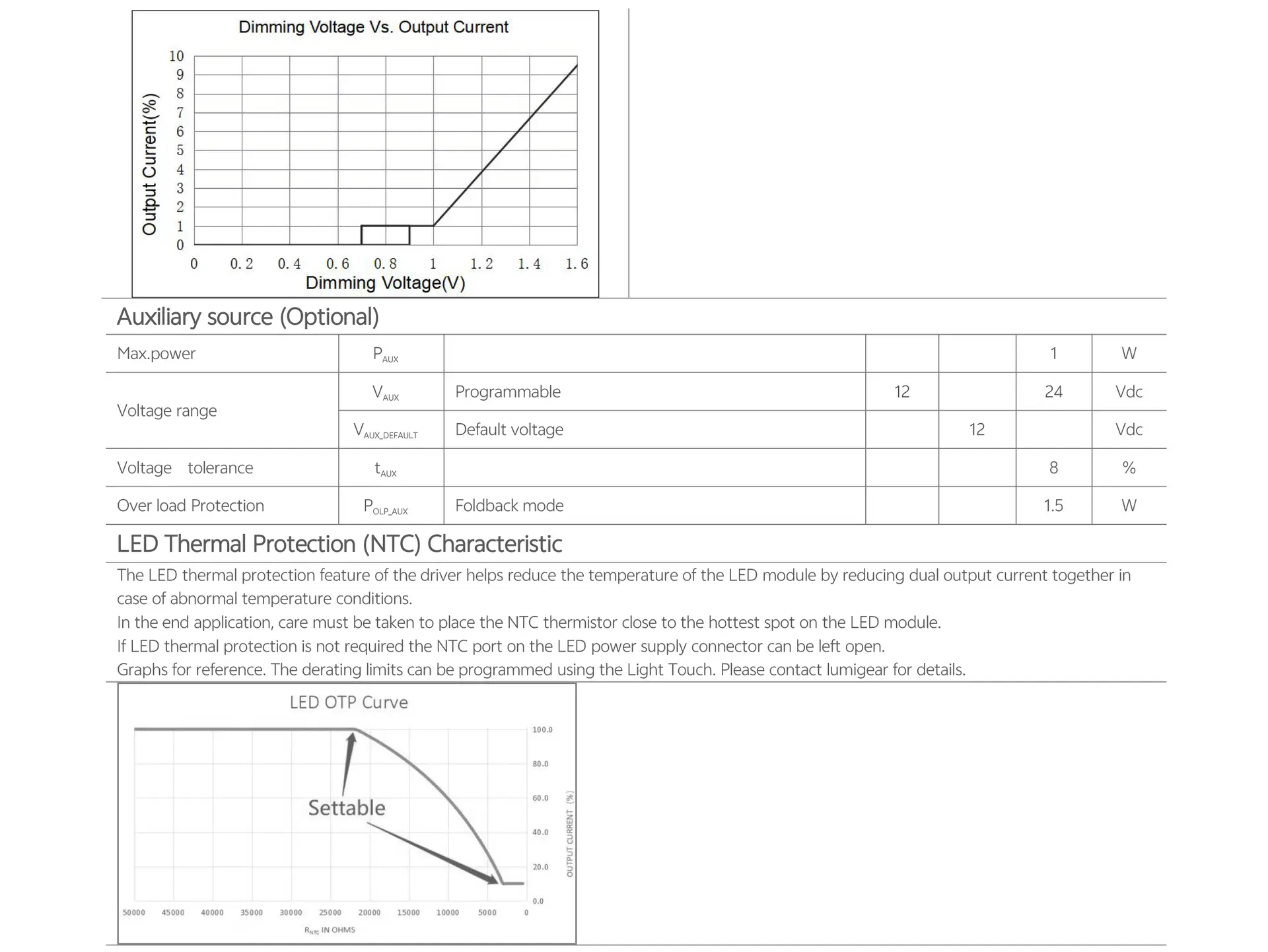

• OTP point , Luminous decay compensation, LED thermal protection(NTC)

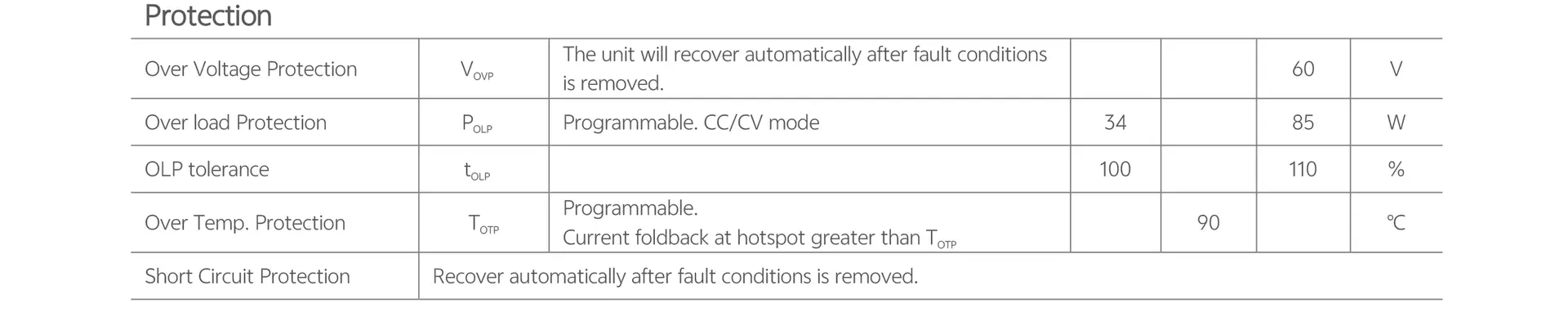

• End-of-life indicator, Fade in time, Over load protection point

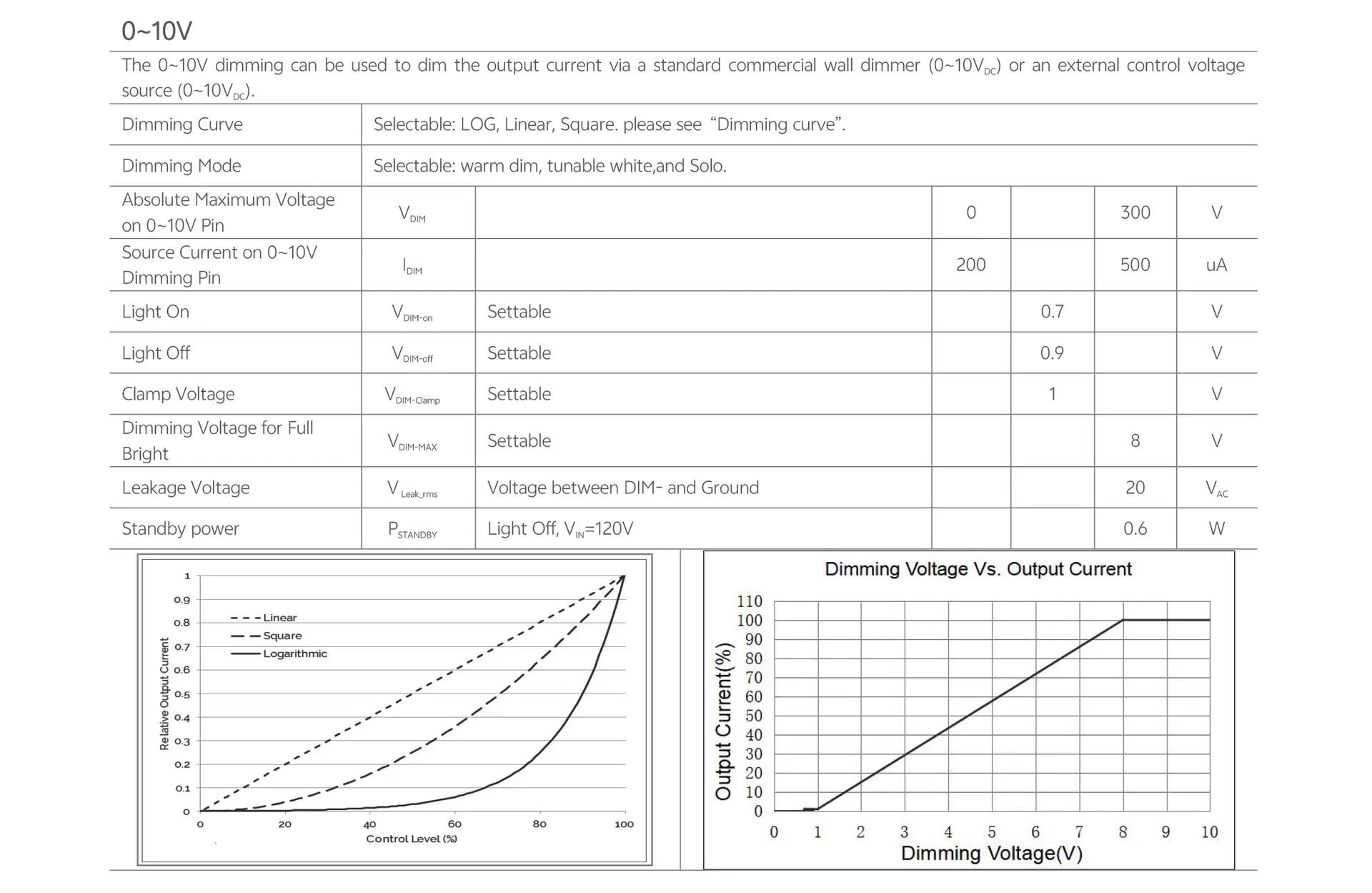

• Log/linear/square dim curves
• Selectable for dimming mode: warm dim, tunable white,and Solo

             .           .
