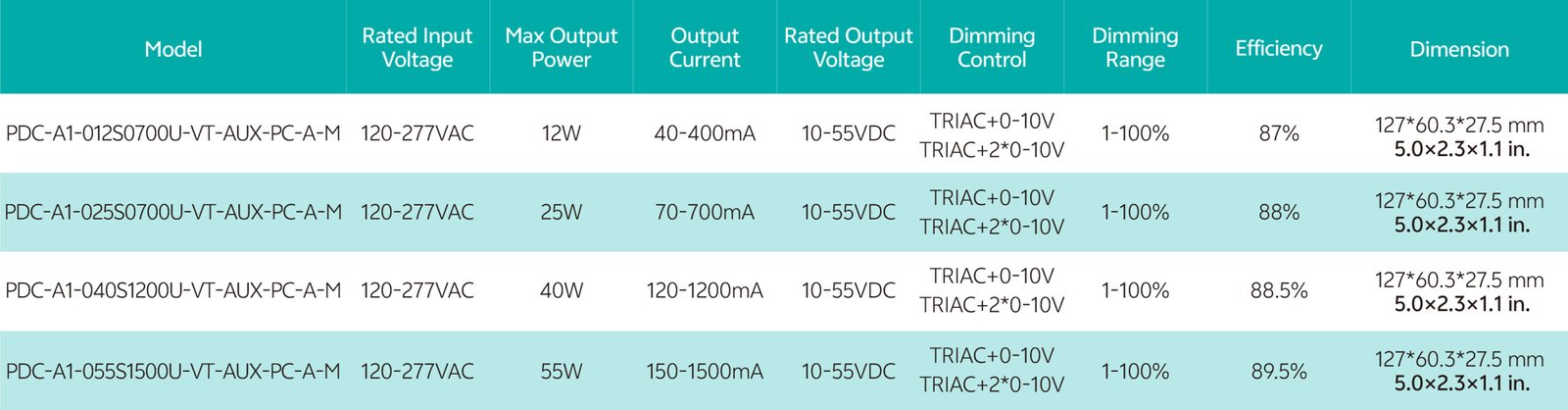

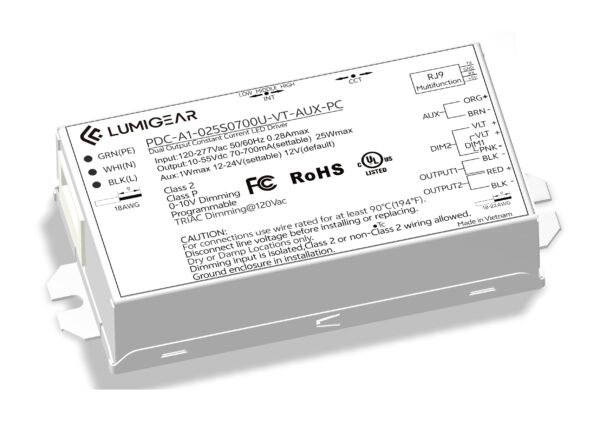

PDC-A1 Family: 25W 40W 55W

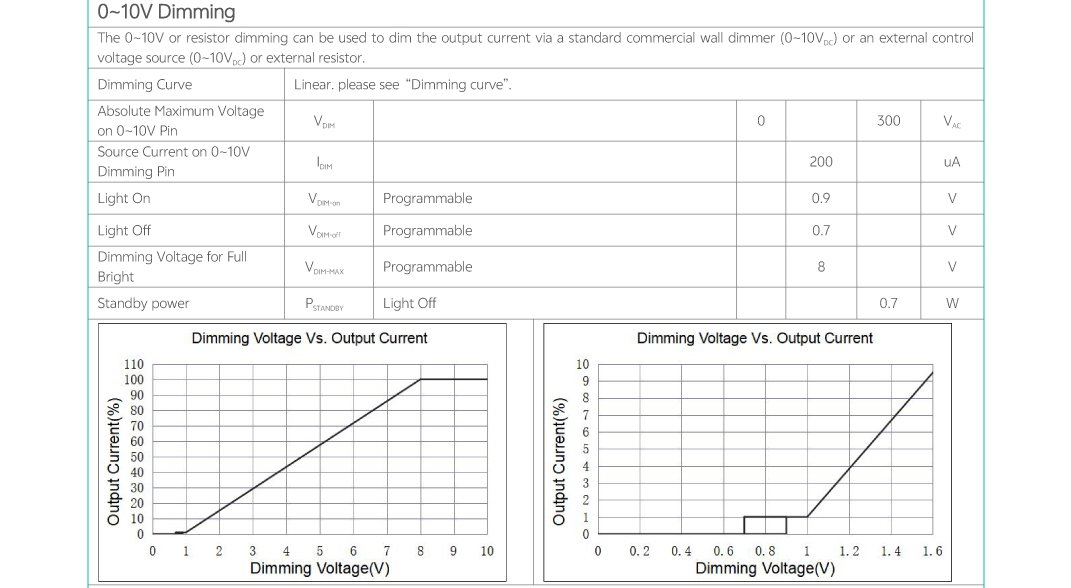

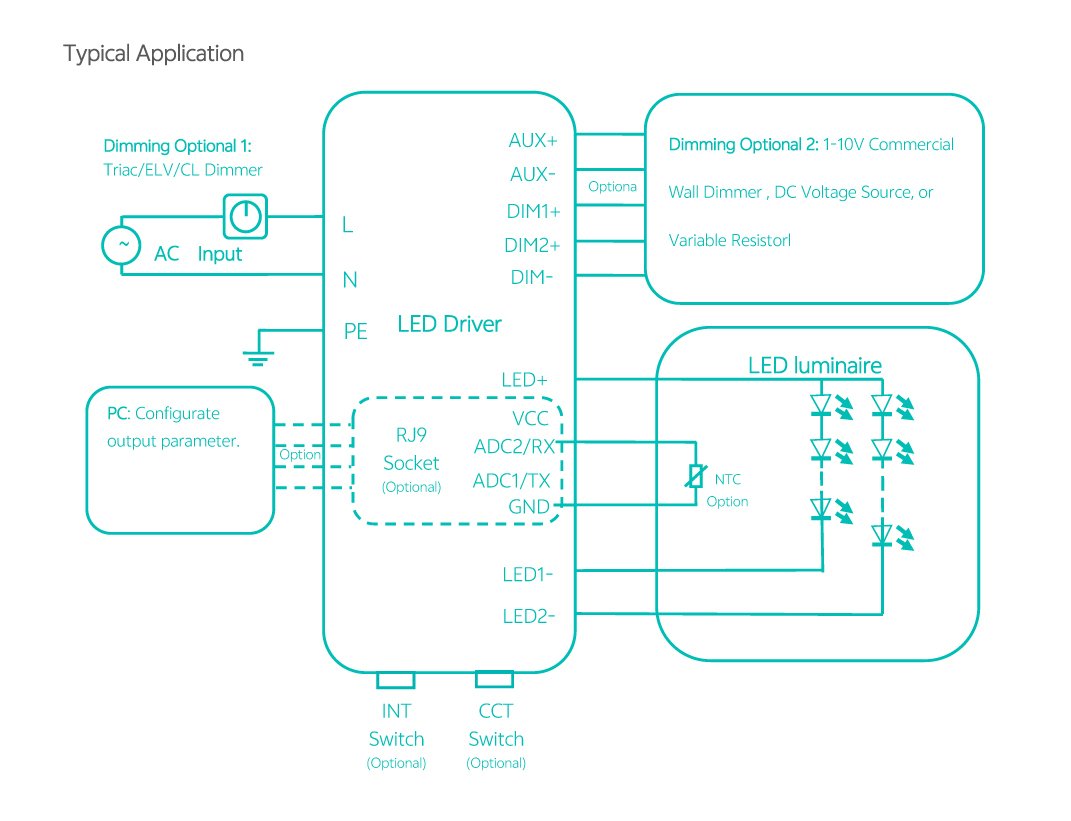

• Five‐in‐one dimming: 0-10V,1-10V,MLV,ELV,TRIAC

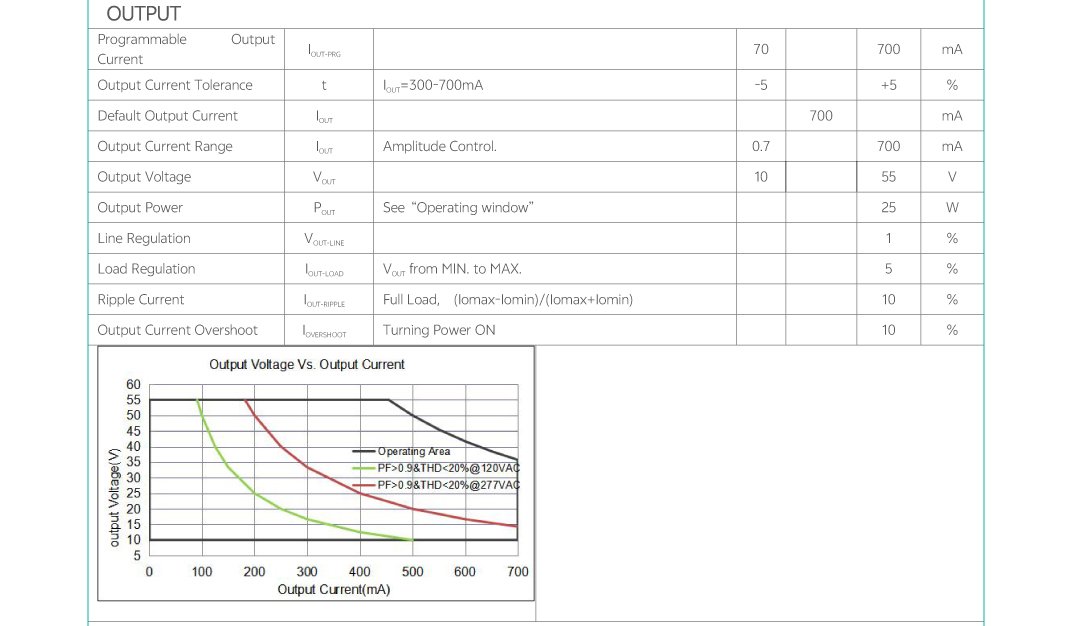

• Wide current range coverage: 40-1500 mA
• Wide voltage range coverage: 10-55 VDC

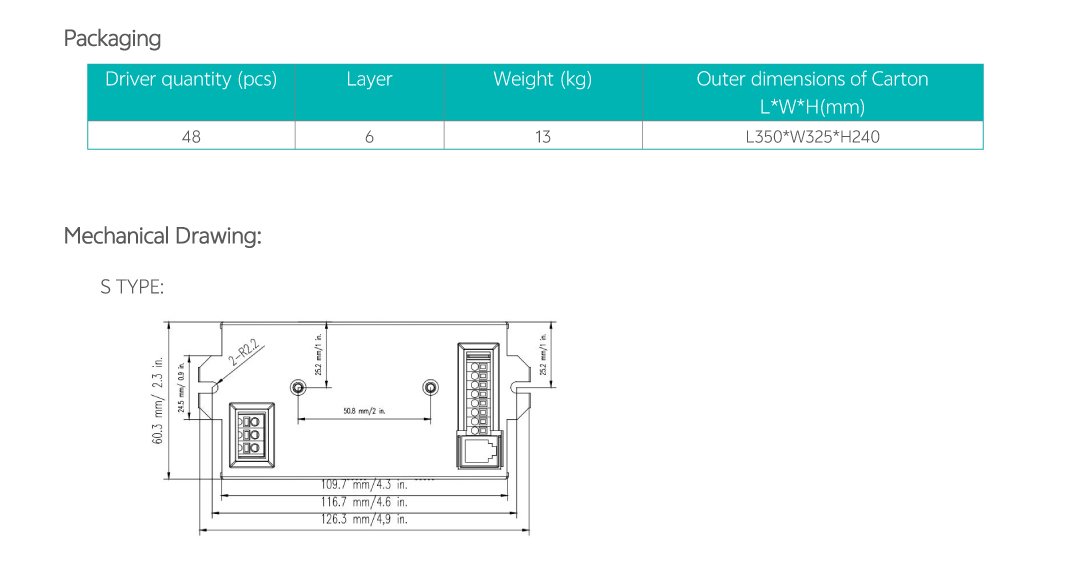

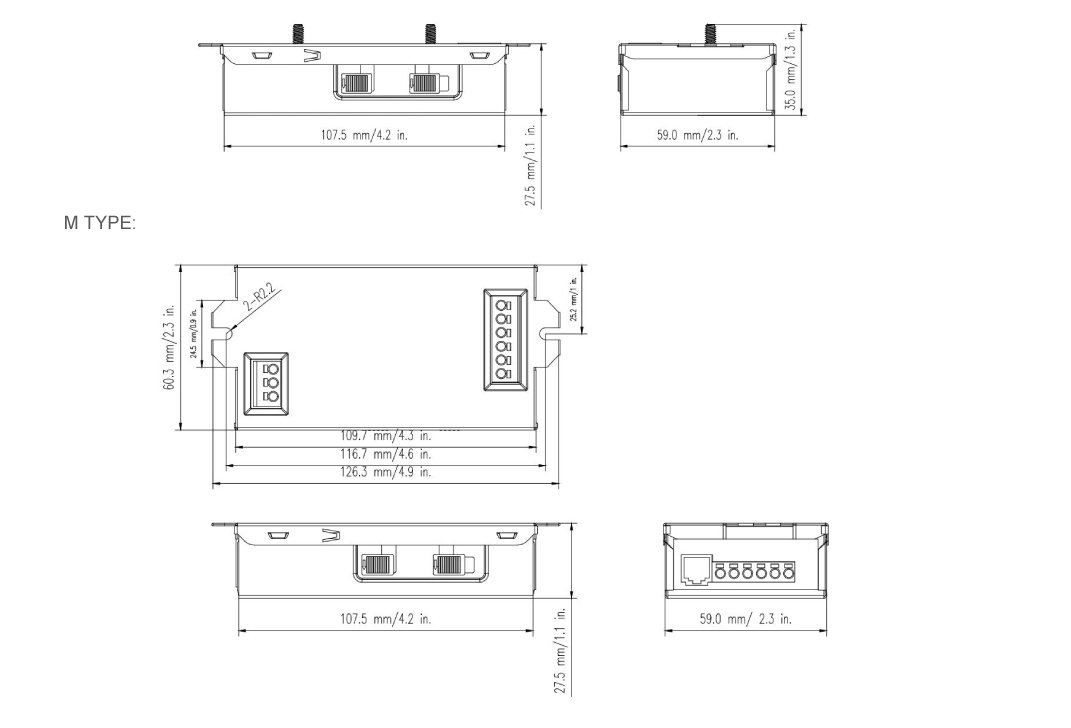

• Compact form factor, metal sheet case(white)

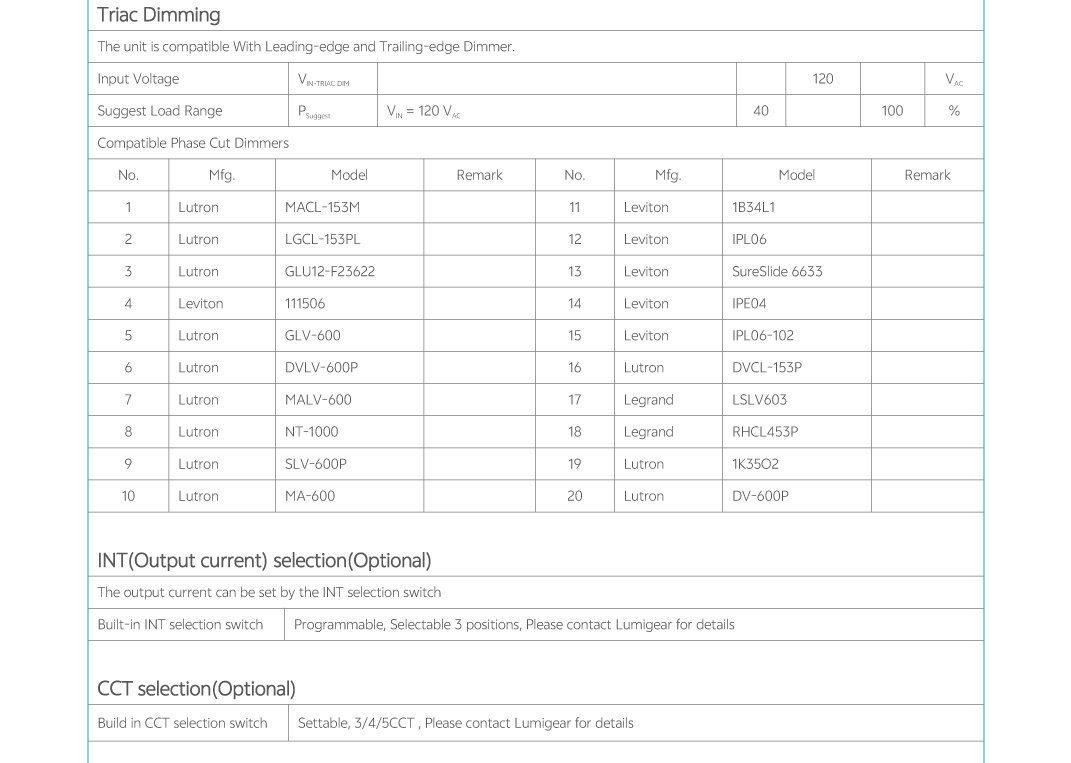

• TRIAC dimming + isolated 0-10V dimming ,dimming down to true 1%
• Suitable for indoor use

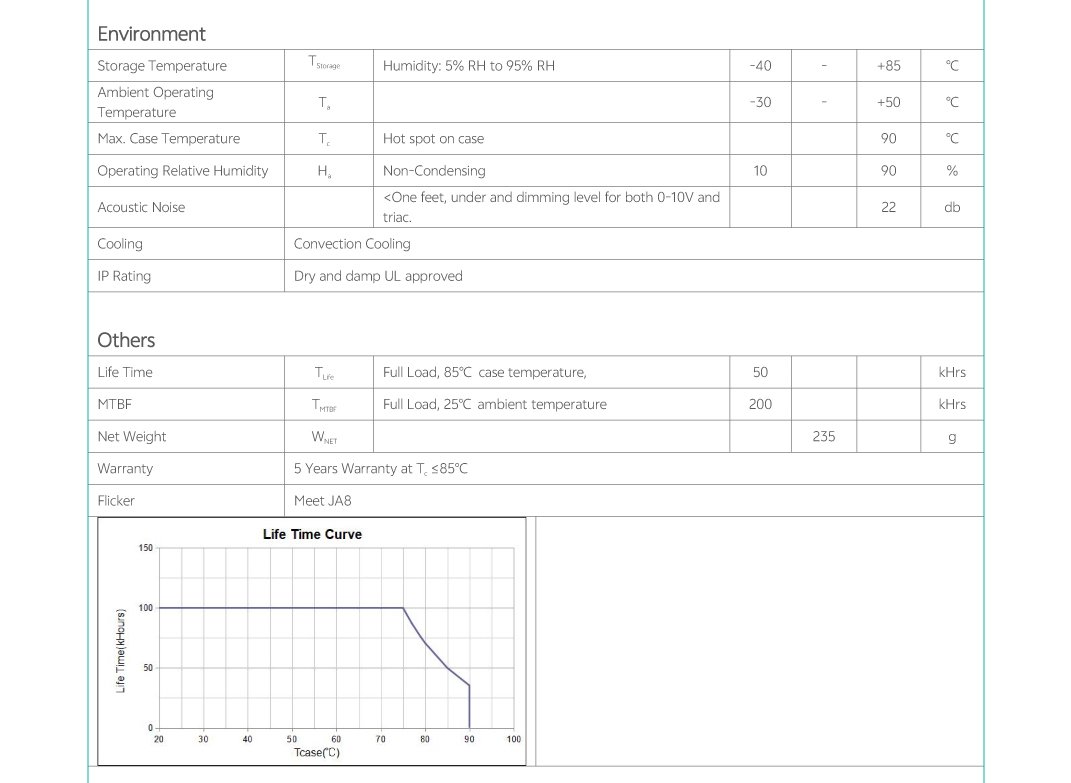

• Nominal lifetime up to 50,000 hours
• 5‐year warranty

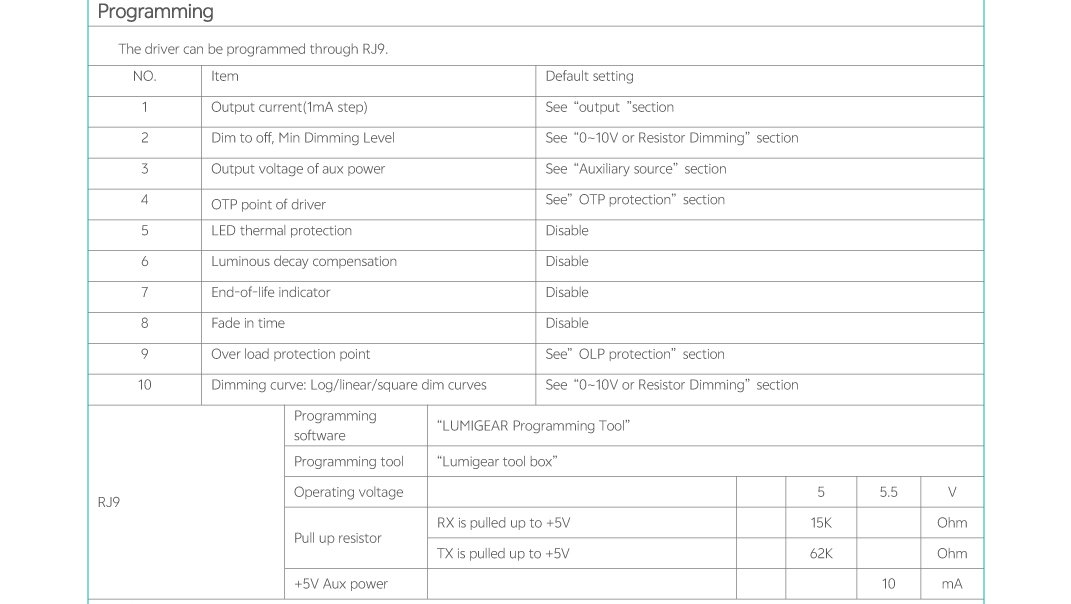

• Programmable Features:
• OTP point of driver, LED thermal protection,luminous decay compensation
• Log/linear/square dimming curves
• Output current, dim to off, min dimming level

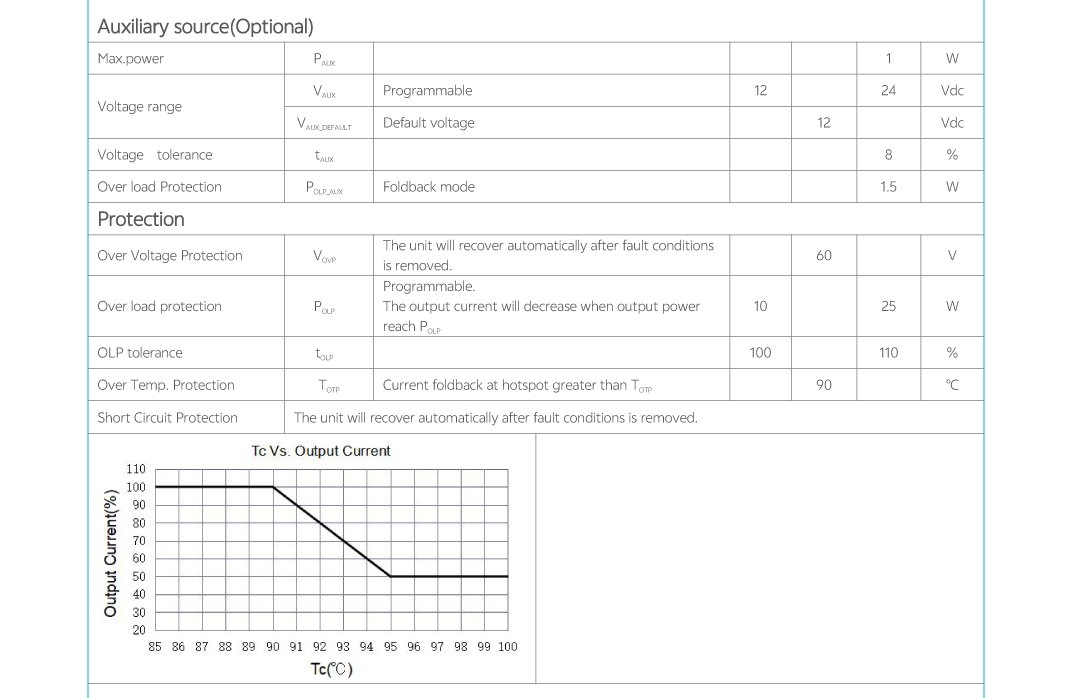

• Output voltage of aux power

             .           .
