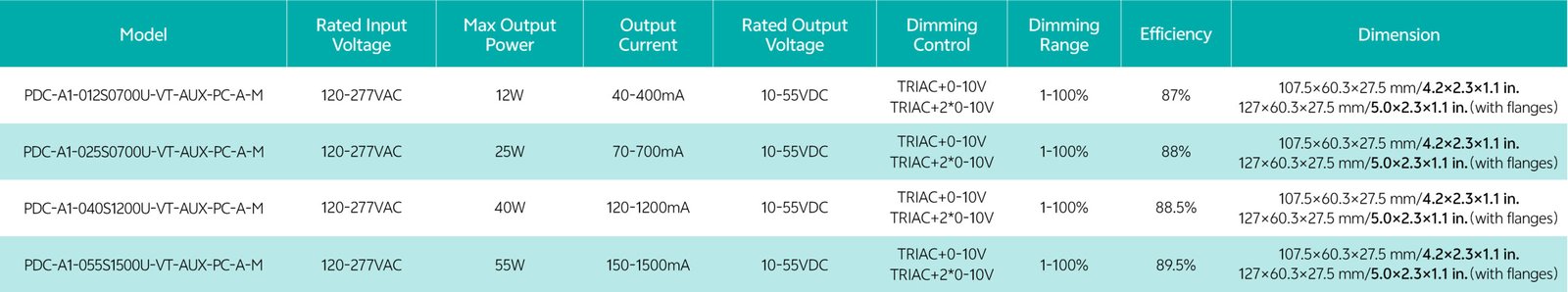

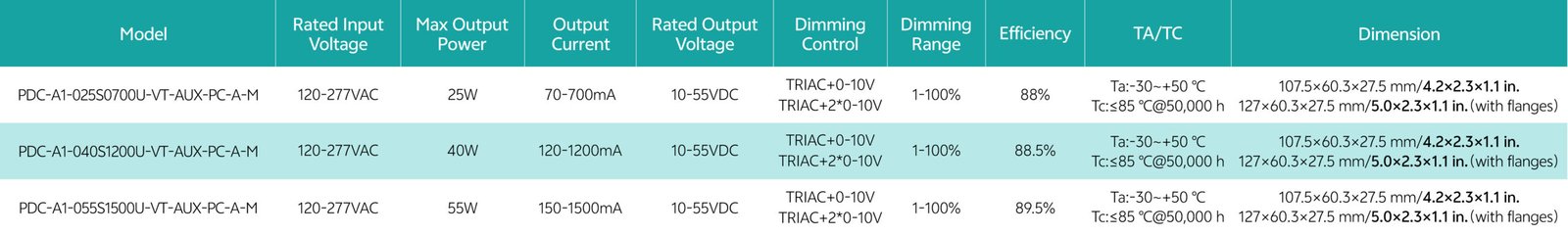

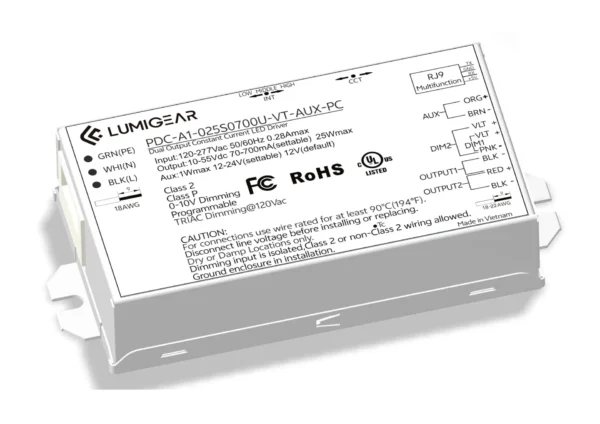

PDC-A1-25W|40W|55W

PDC-A1-25W|40W|55W

  • Five‐in‐one dimming: 0-10V,1-10V,MLV,ELV,TRIAC
  • Wide current range coverage: 40-1500 mA
  • Wide voltage range coverage: 10-55 VDC
  • Compact form factor, metal sheet case(white)

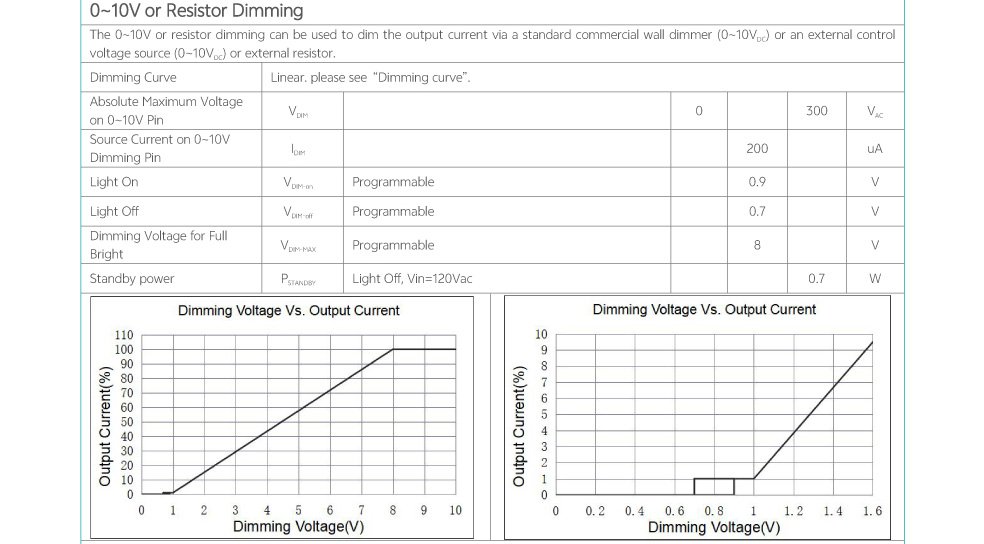

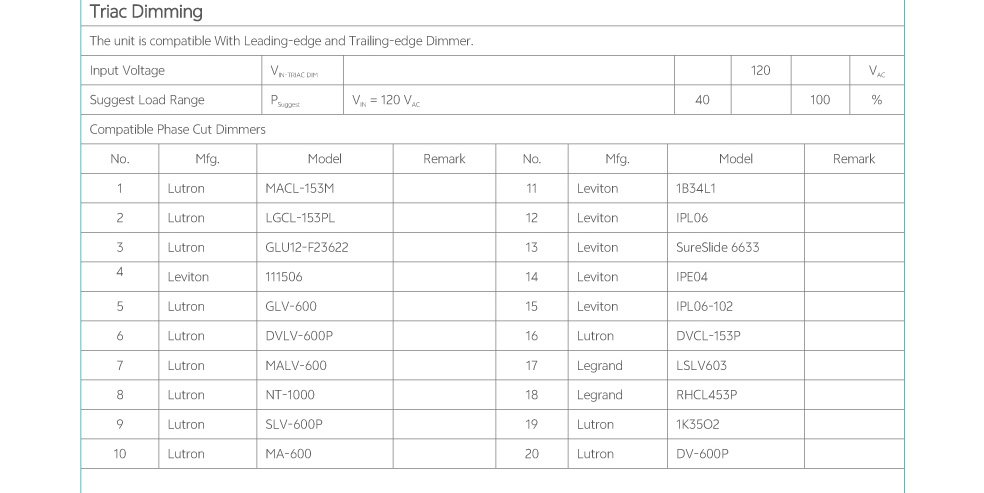

  • TRIAC dimming + isolated 0-10V dimming ,dimming down to true 1%
  • Suitable for indoor use

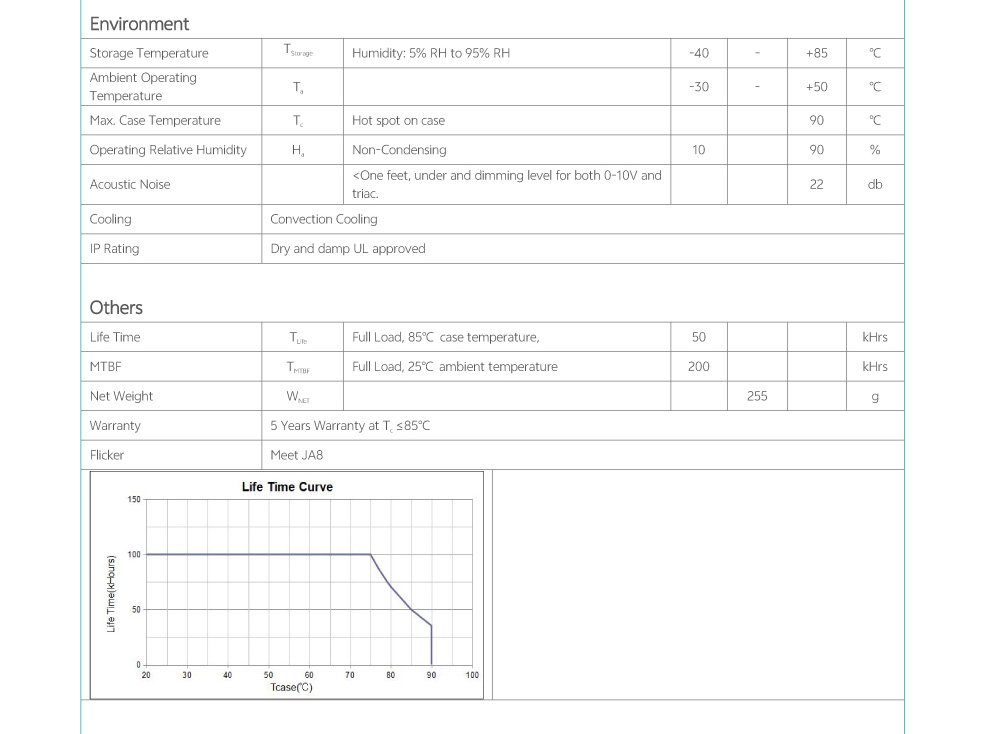

  • Nominal lifetime up to 50,000 hours
  • 5‐year warranty

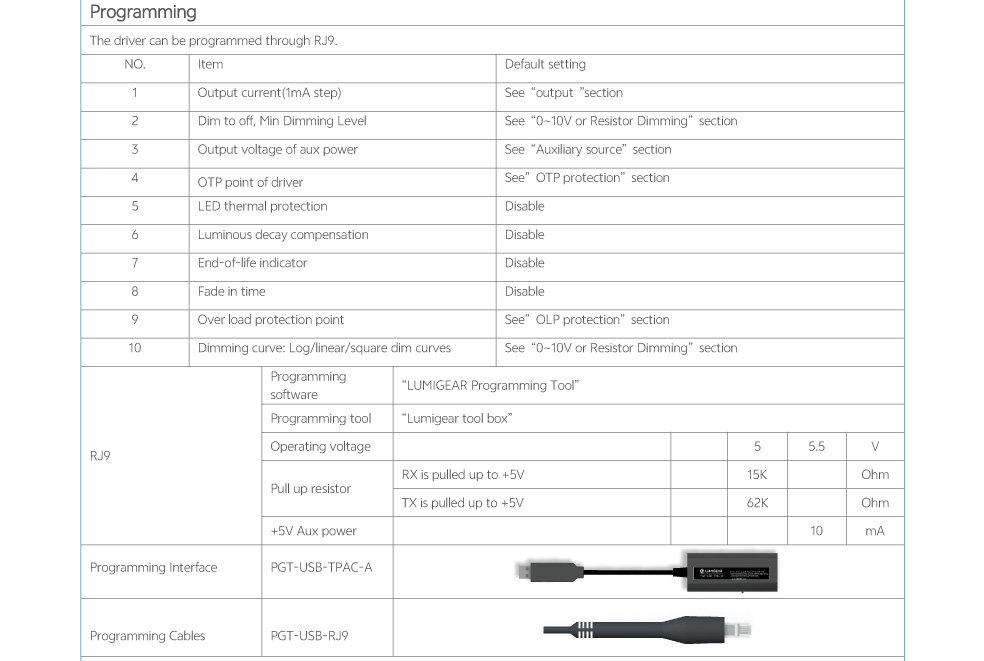

  • Programmable Features:

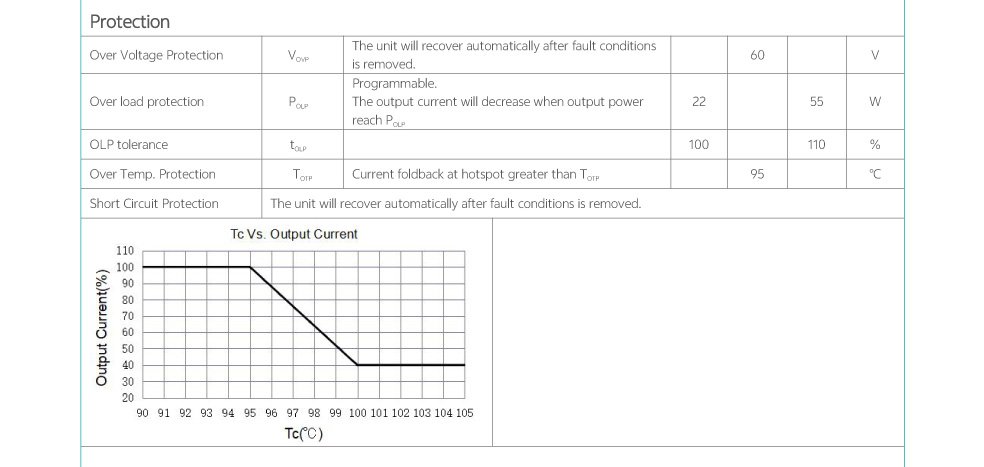

  • OTP point of driver, LED thermal protection,luminous decay compensation
  • Log/linear/square dimming curves

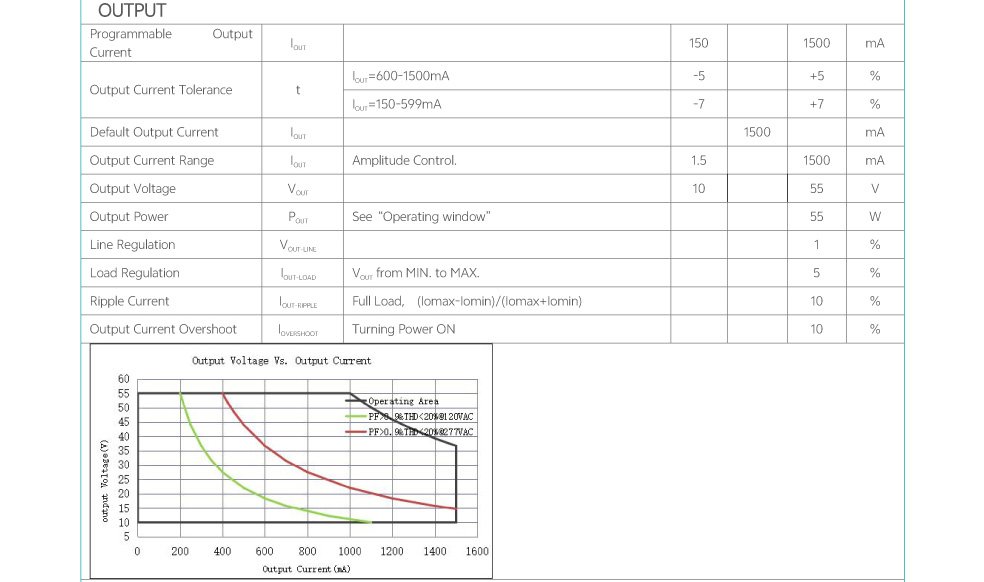

  • Output current, dim to off, min dimming level

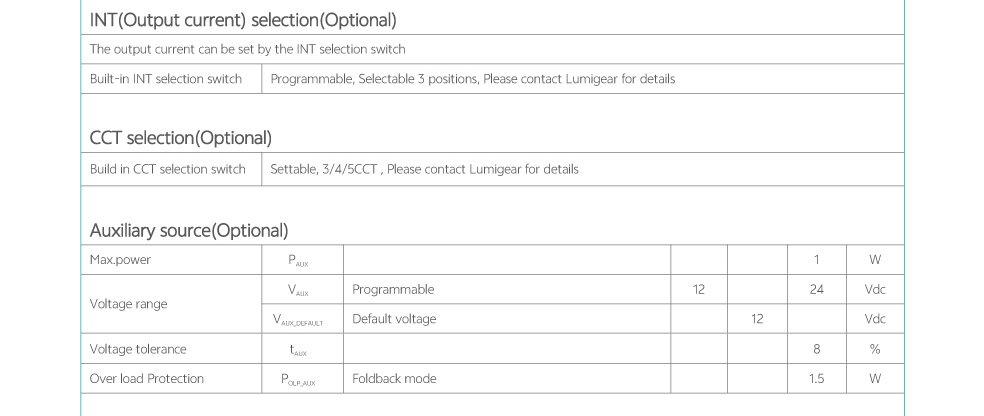

  • Output voltage of aux power
