Model List
CVW-A1-96W
- Five‐in‐one dimming: 0-10V,1-10V,MLV,ELV,TRIAC
- 12V-48V output voltage options
- Linear form factor, compact design
- Isolated 0-10V dimming, dimming down to 0.1%
- Flicker‐free, excellent camera compatibility, spec‐grade smoothness
- All‐round protection: SCP, OVP, OTP, OPP(CC/CV mode, especially suitable for LED strip)
- IP66 design for indoor and outdoor installations(wet location)
- Constant voltage PWM style output
- Class2, Class P
- Operating temperature: -35℃~+55℃
- Complies with IEEE1789(≥1% dimming), UL8750
- Nominal lifetime up to 50,000 hours
- 5‐year warranty

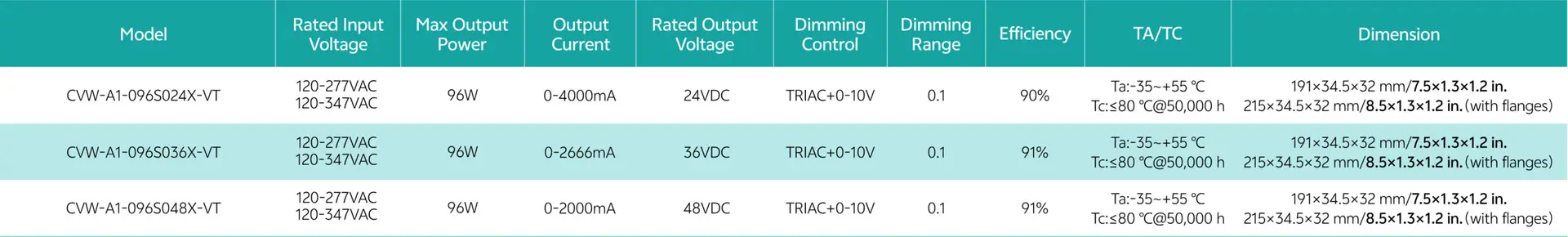

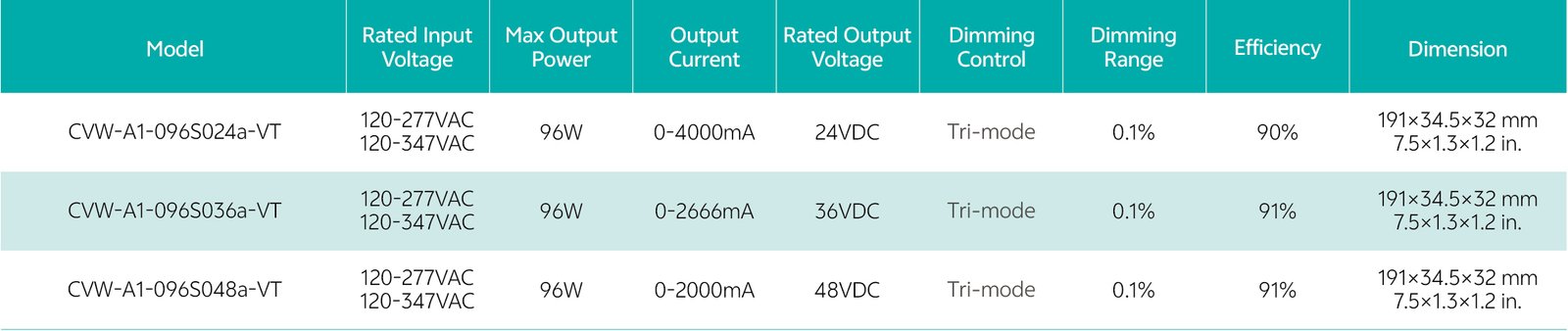

Specifications
Optional Function
- Input voltage: 120-277VAC or 120-347VAC
- Complies With Leading-edge/Trailing-edge Dimmer
- Wide Load Range from 10% to 100%(TRIAC Dimming)
- Aux power, 12V/50mA
