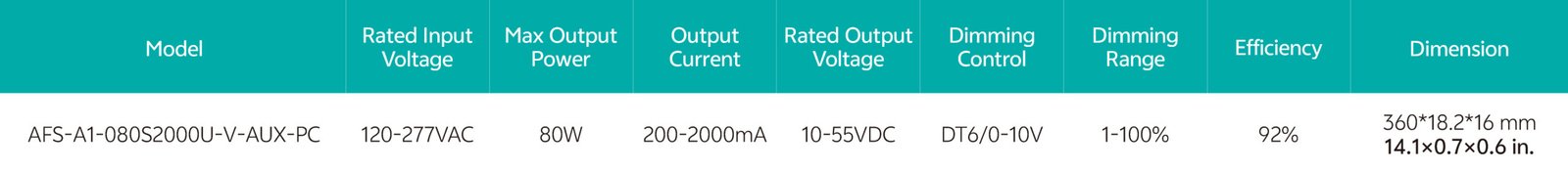

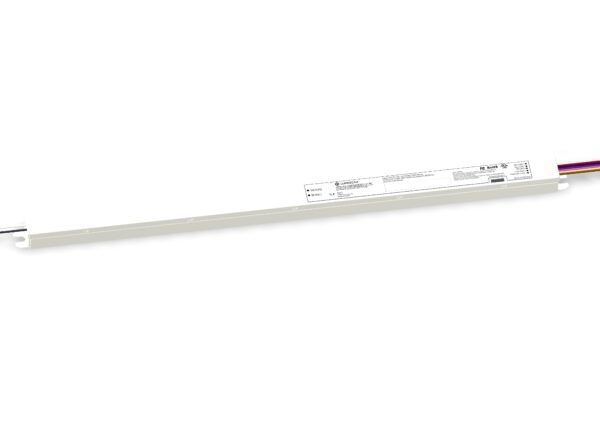

AFS-A1 Family: 80W

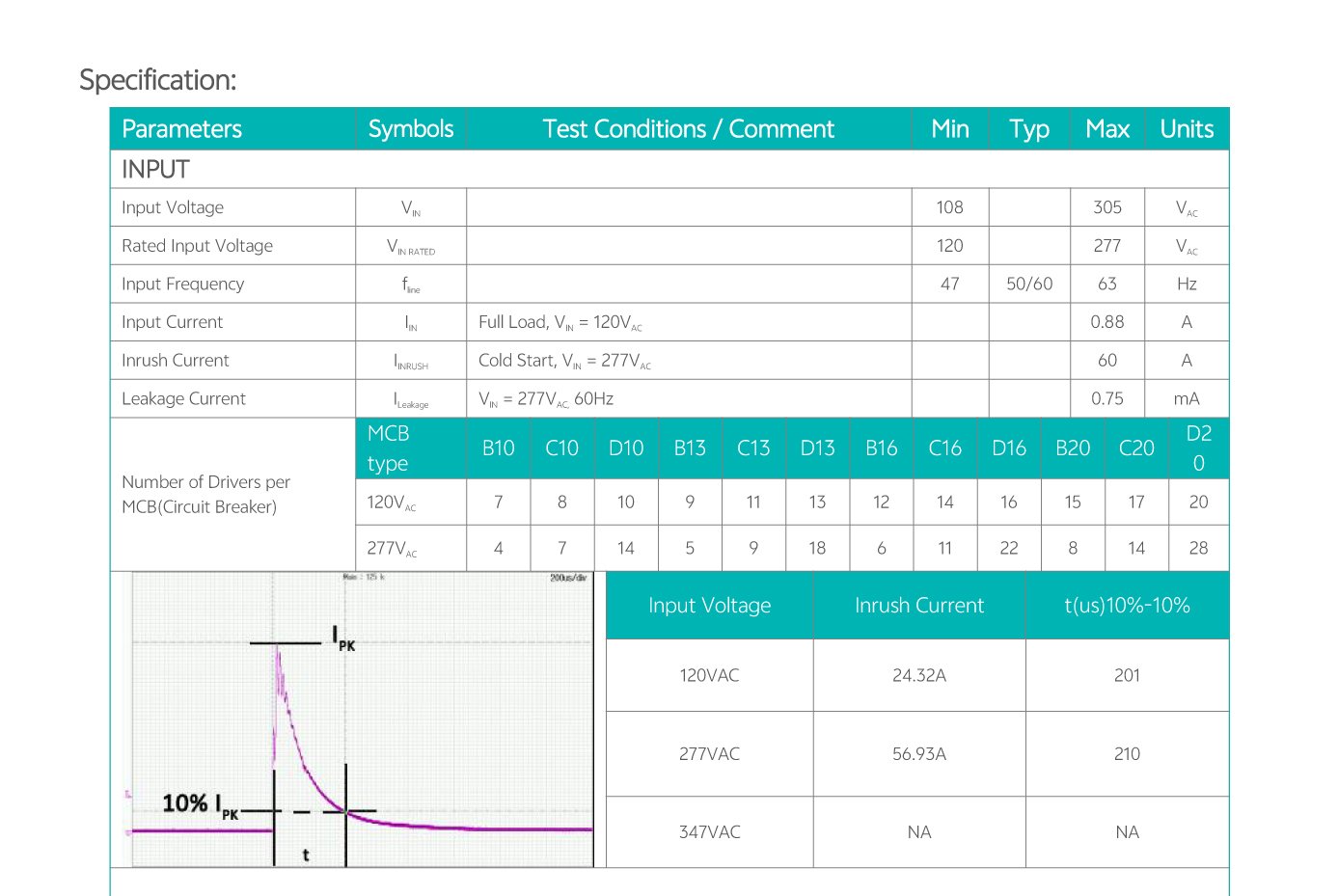

• Universal AC Input Voltage(120-277VAC)

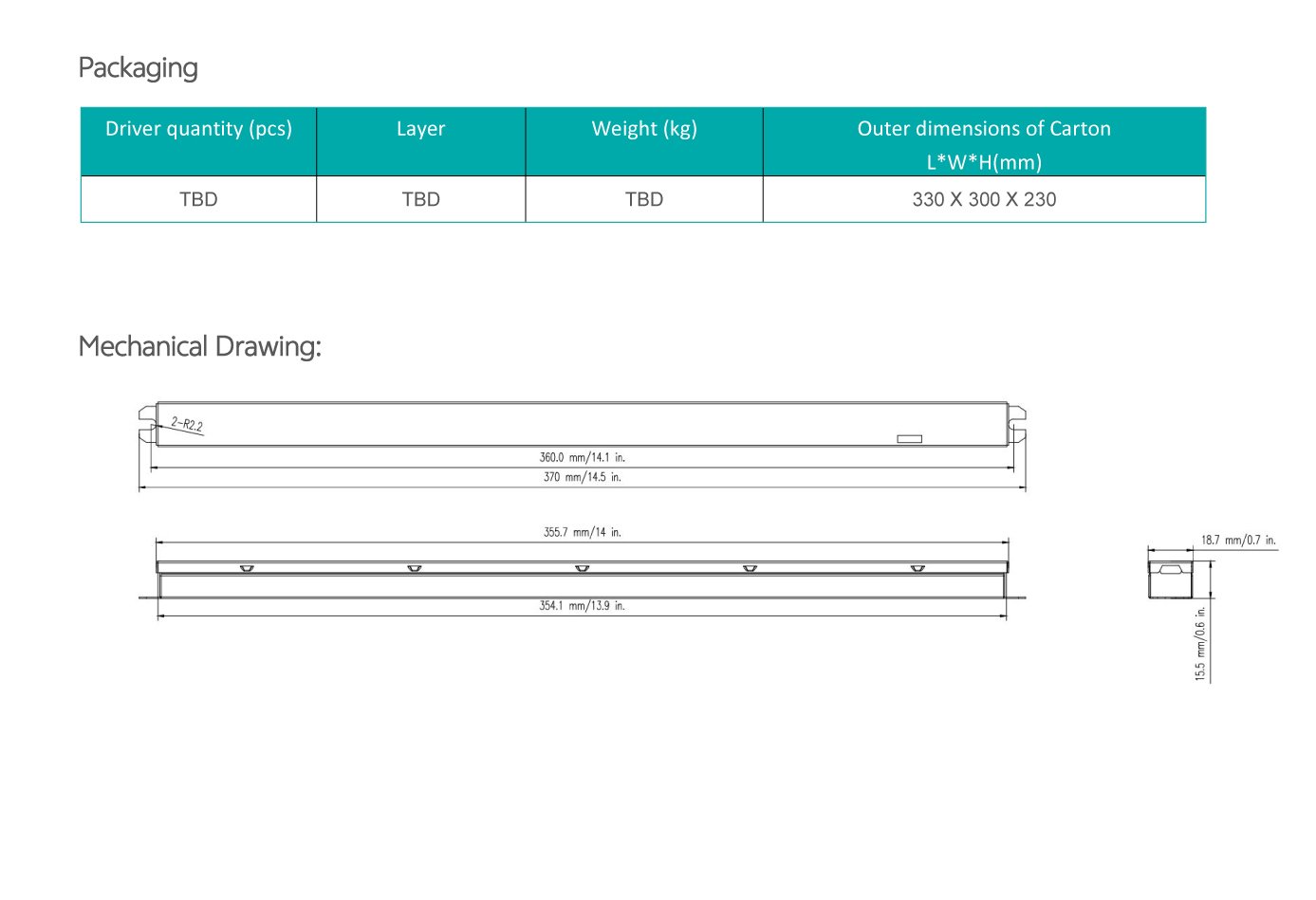

• Linear form factor, Metal sheet case(white), Side feed

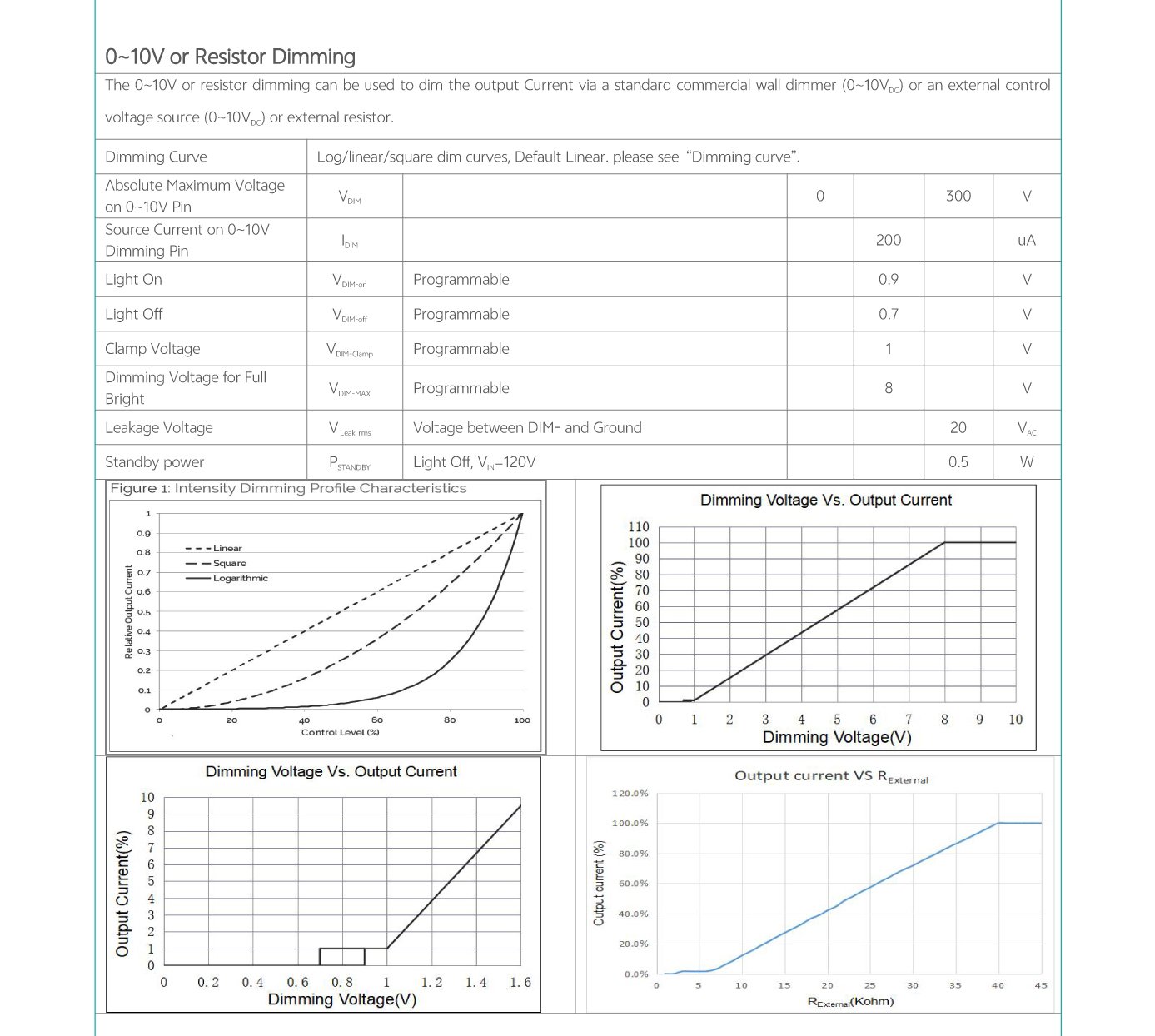

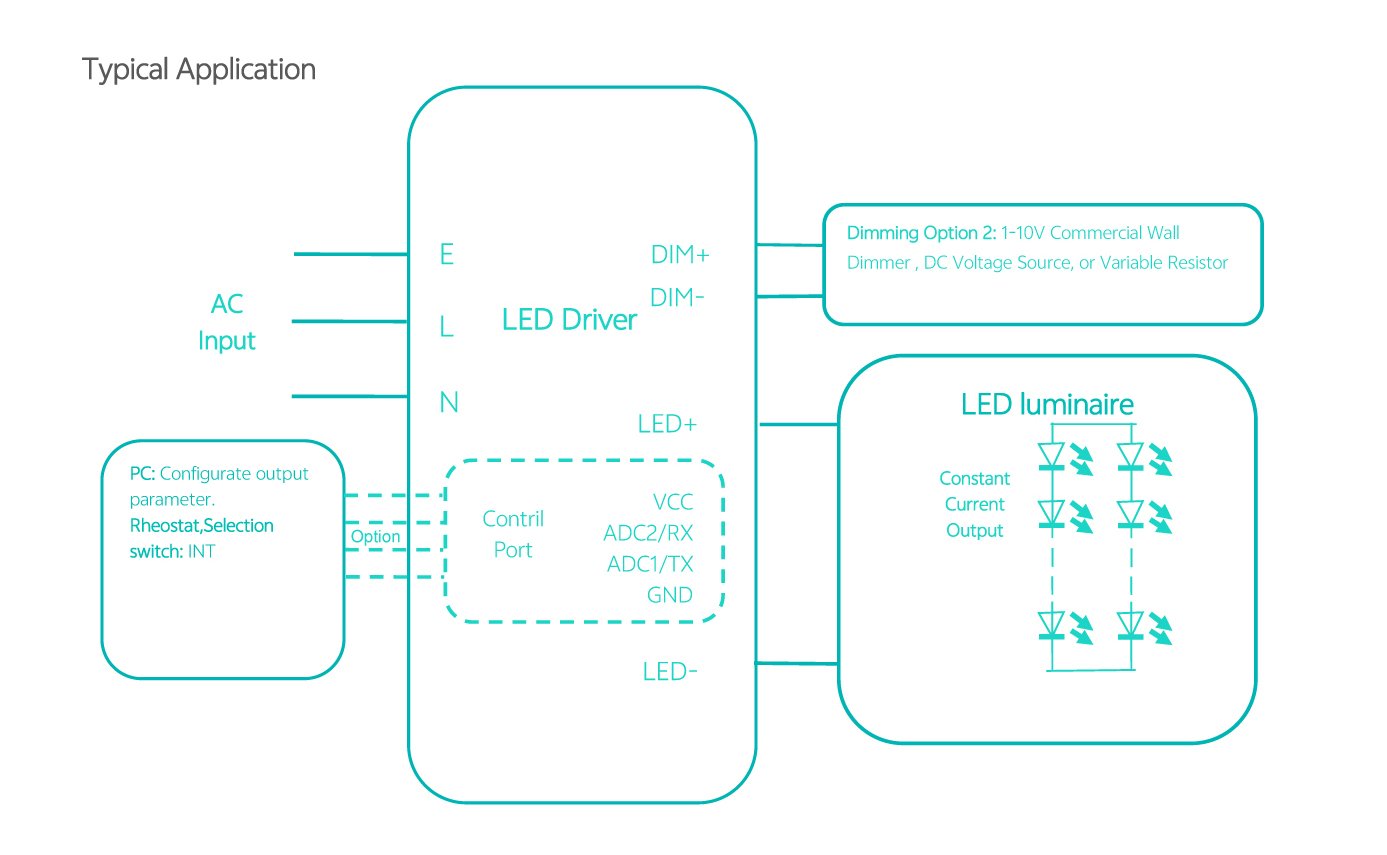

• Isolated 0-10V dimming interface, dim down to true 2.0mA
• Low standby power: <0.5W@120VAC
• Suitable for indoor use
• Flicker free, excellent camera compatibility, spec-grade smoothness

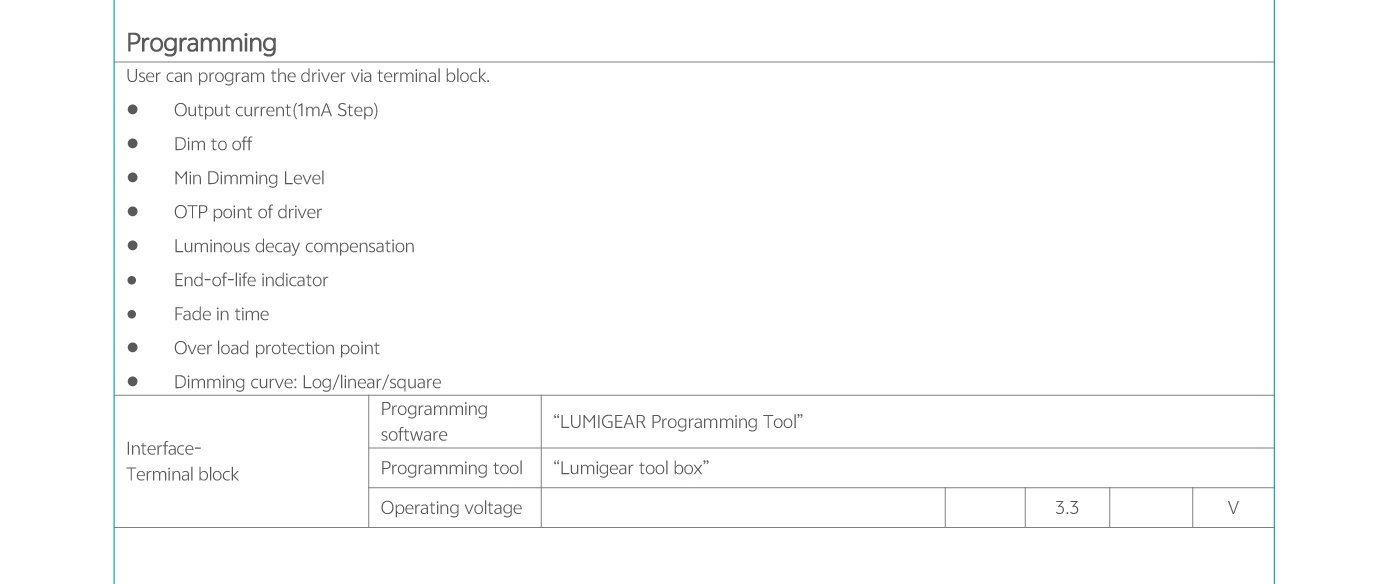

• USB Programmable Feature:
• Output current, Dim to off, Min Dimming Level
• OTP point of driver, Luminous decay compensation,
• End-of-life indicator, Fade in time, Over load protection point
• Dimming curve: Log/linear/square dim curves

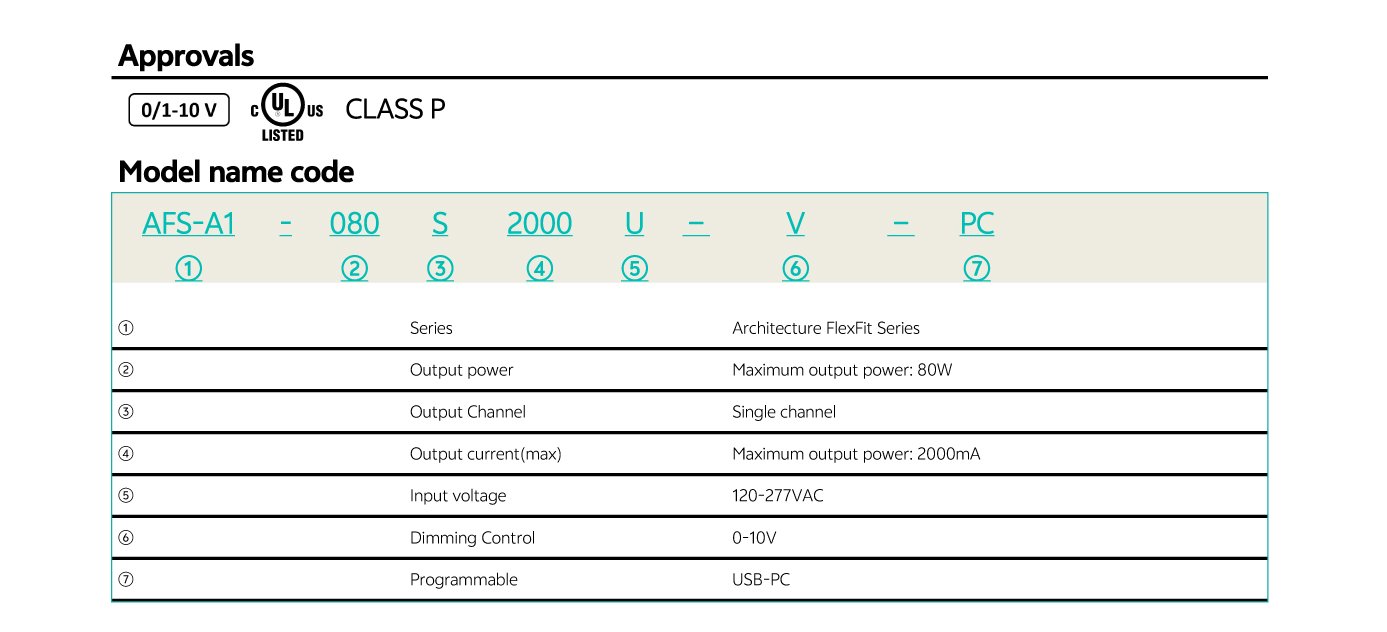

• Class2, Class P
• Operating temperature: -30℃~+50℃
• Comply with IEEE1789, UL8750, Category A ring wave 2.5kV

             .           .
