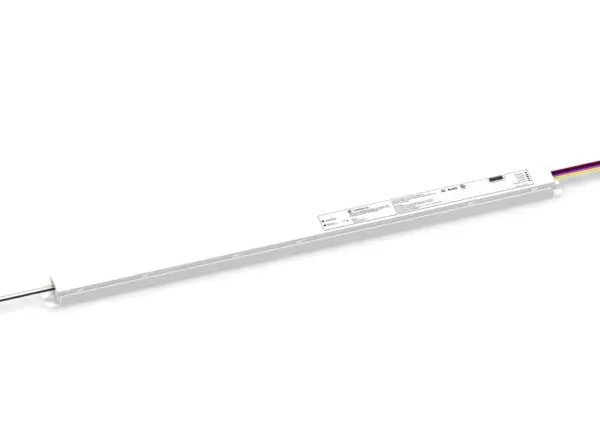

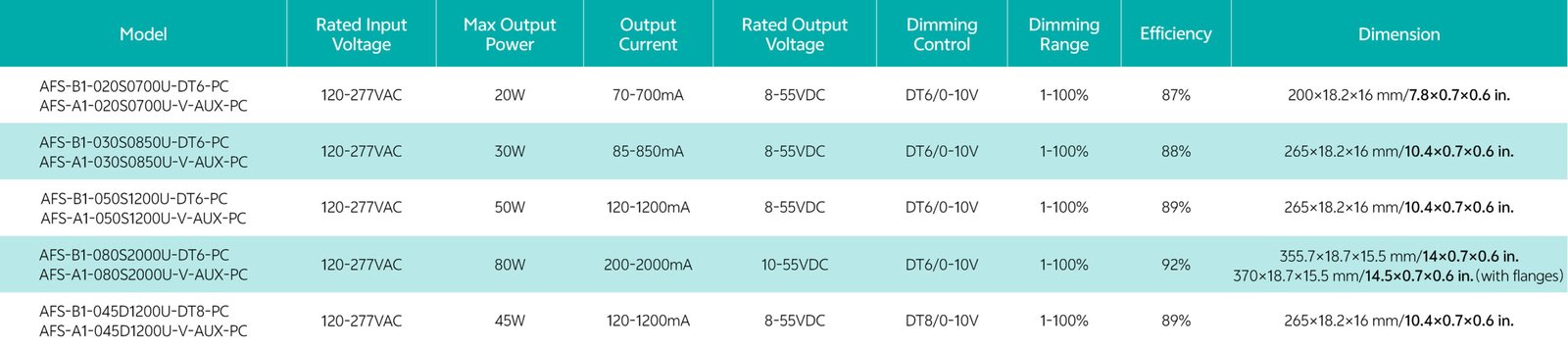

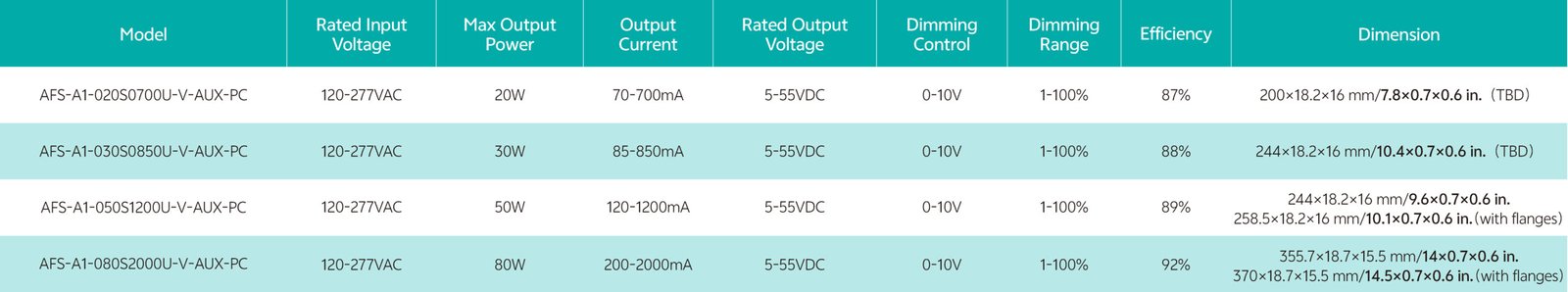

AFS-A1-20W|30W|45W|50W|80W

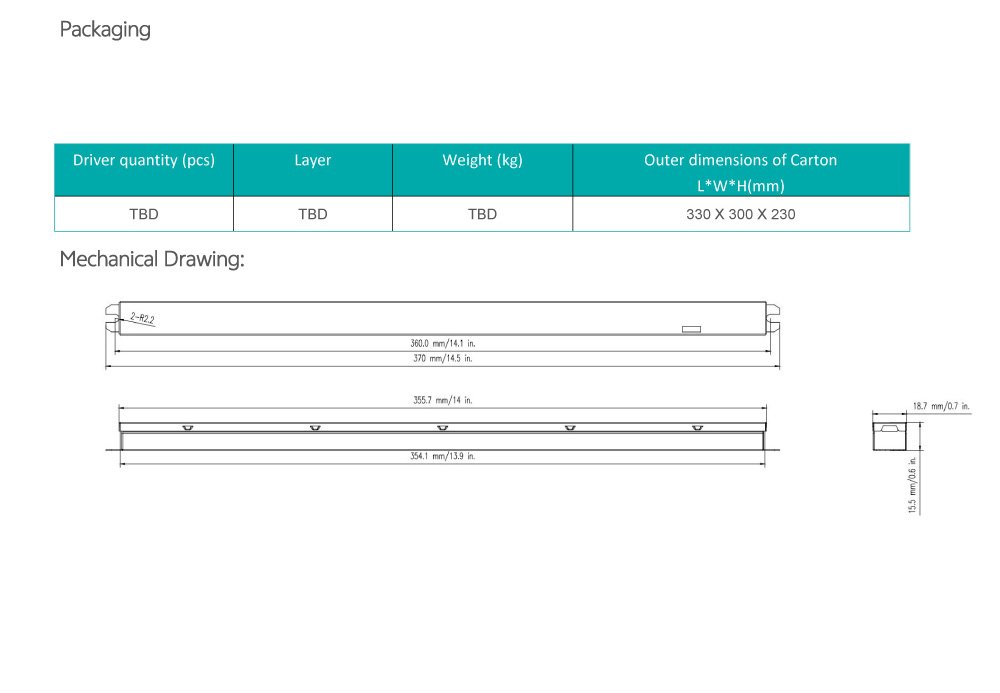

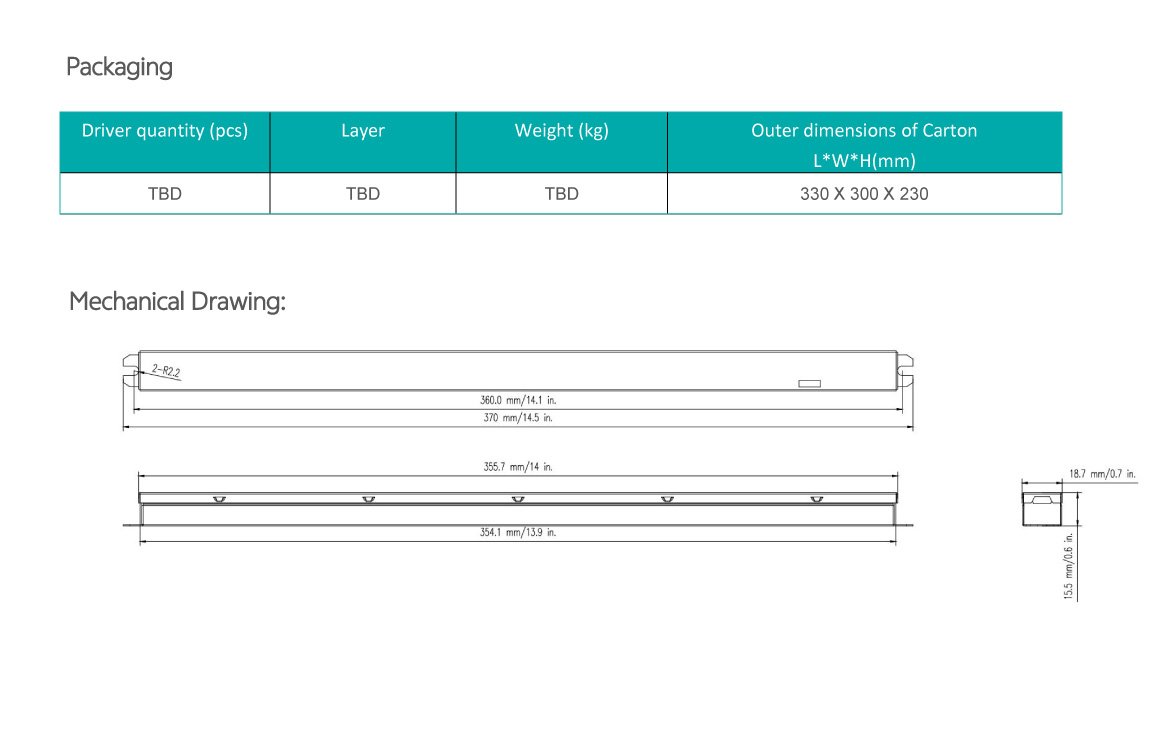

• 0.7 inches wide×0.6 inches high
• True 1% dimming over full output current range

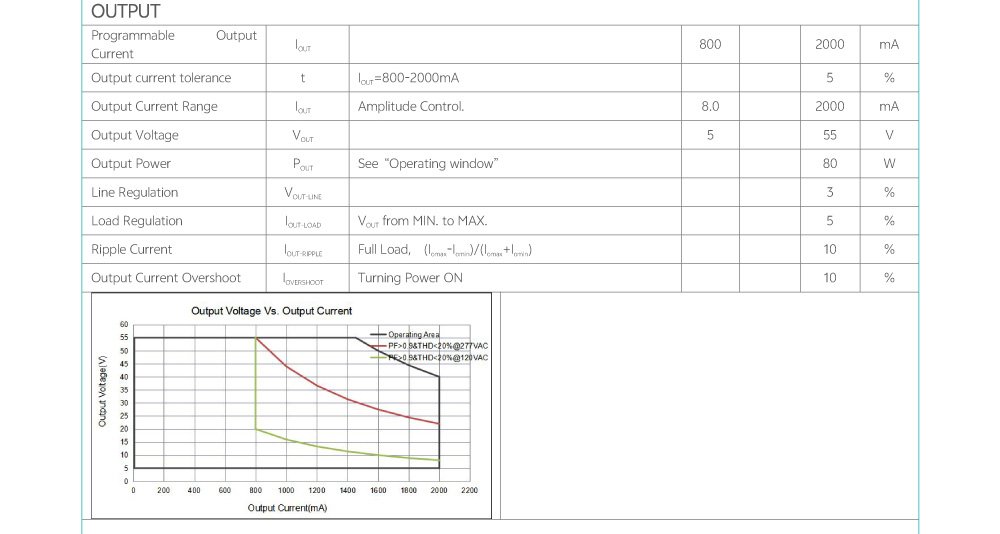

• Wide current range coverage: 70-2000 mA
• Wide power range coverage: 20-80 W
• Linear form factor, metal sheet case(white), side feed

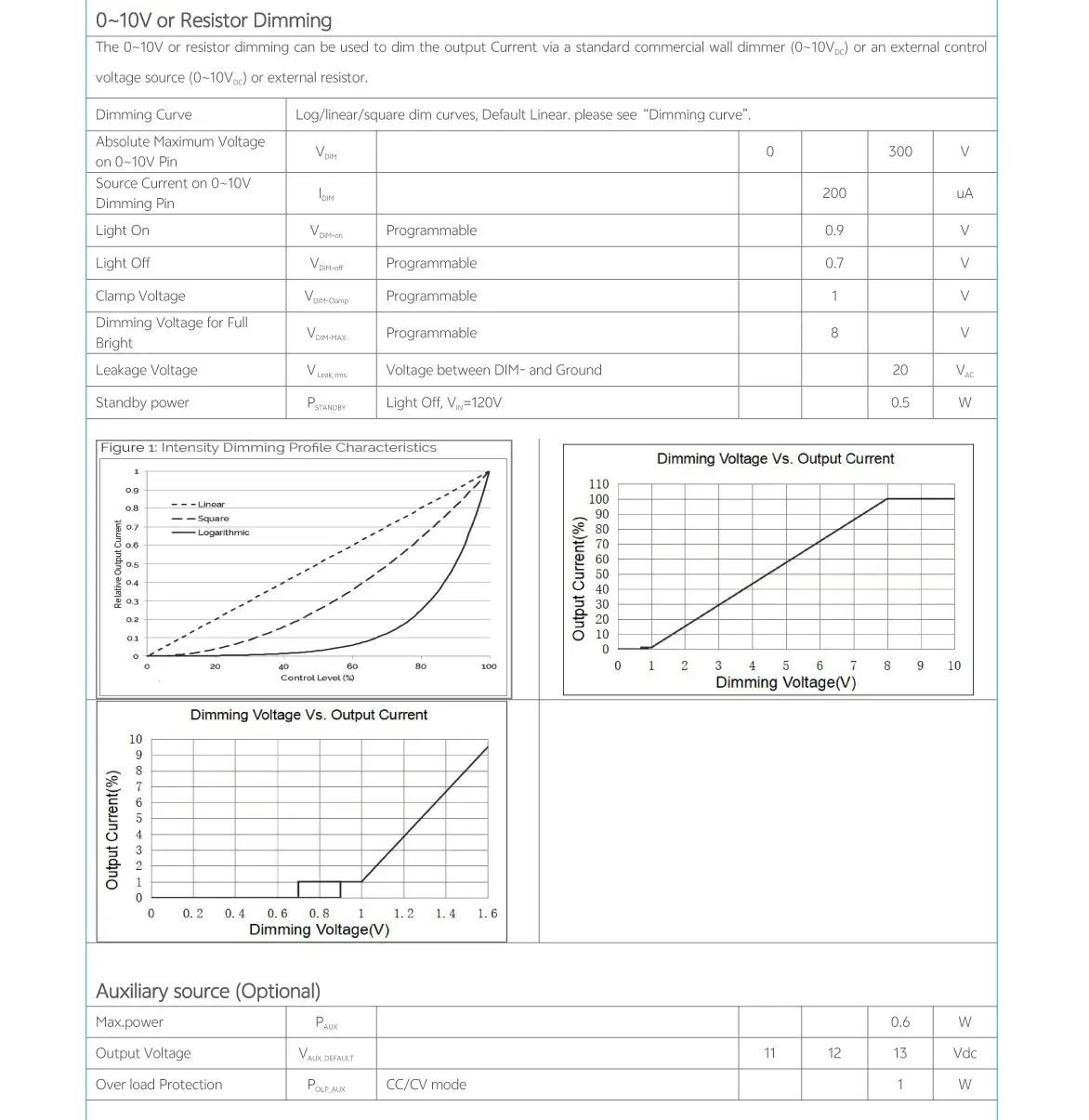

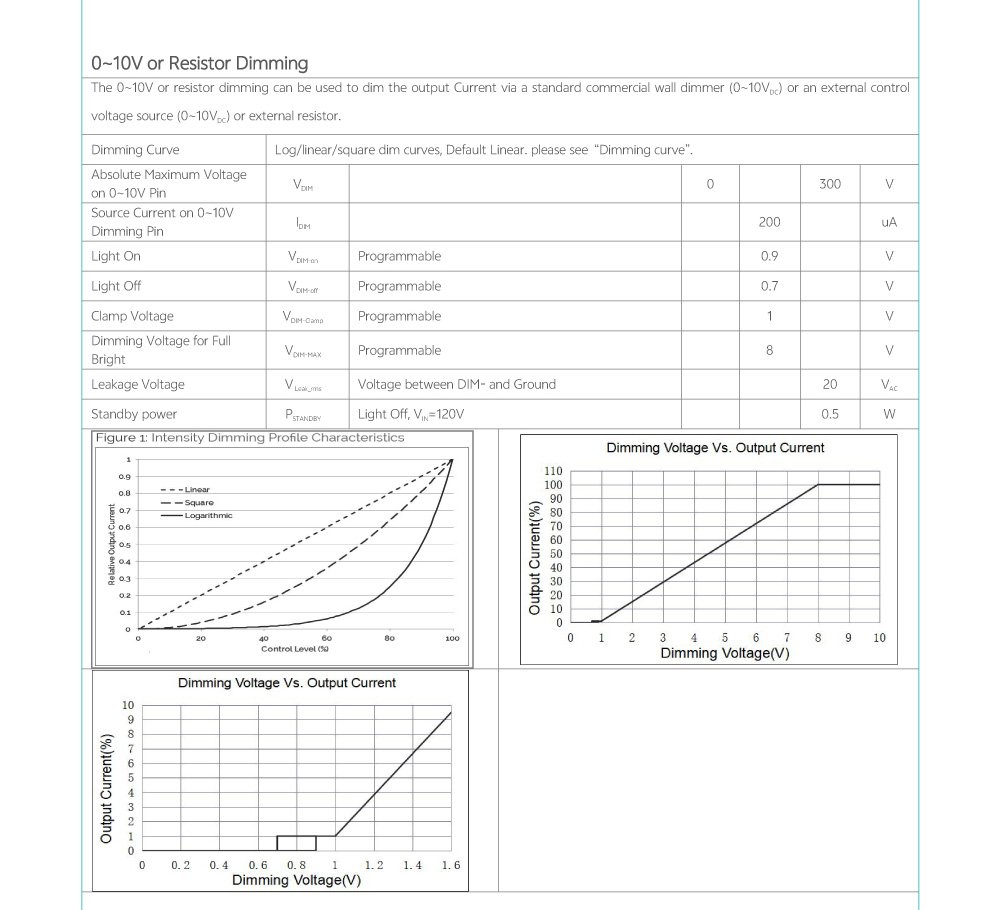

• Isolated 0-10V dimming interface

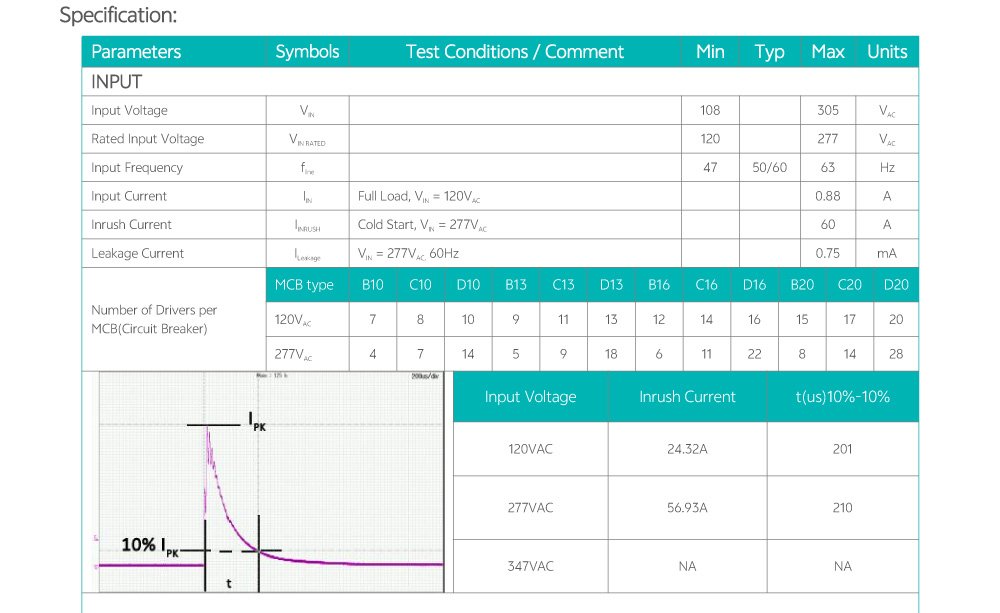

• Low standby power: <0.5W@120VAC
• Suitable for indoor use
• Flicker‐free, excellent camera compatibility,spec‐grade smoothness

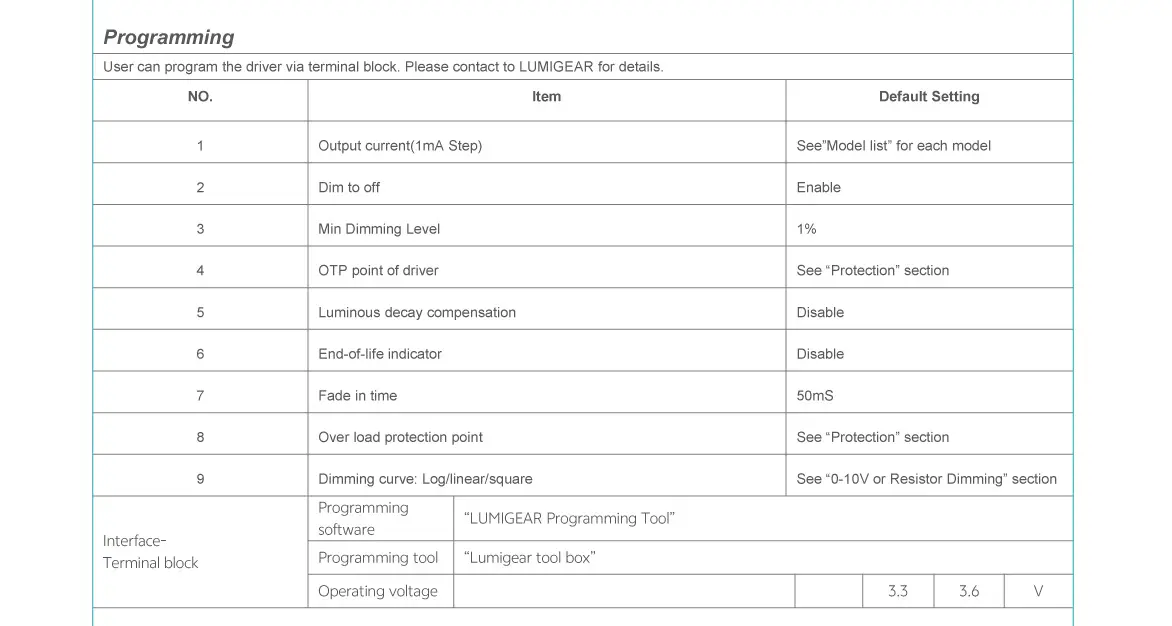

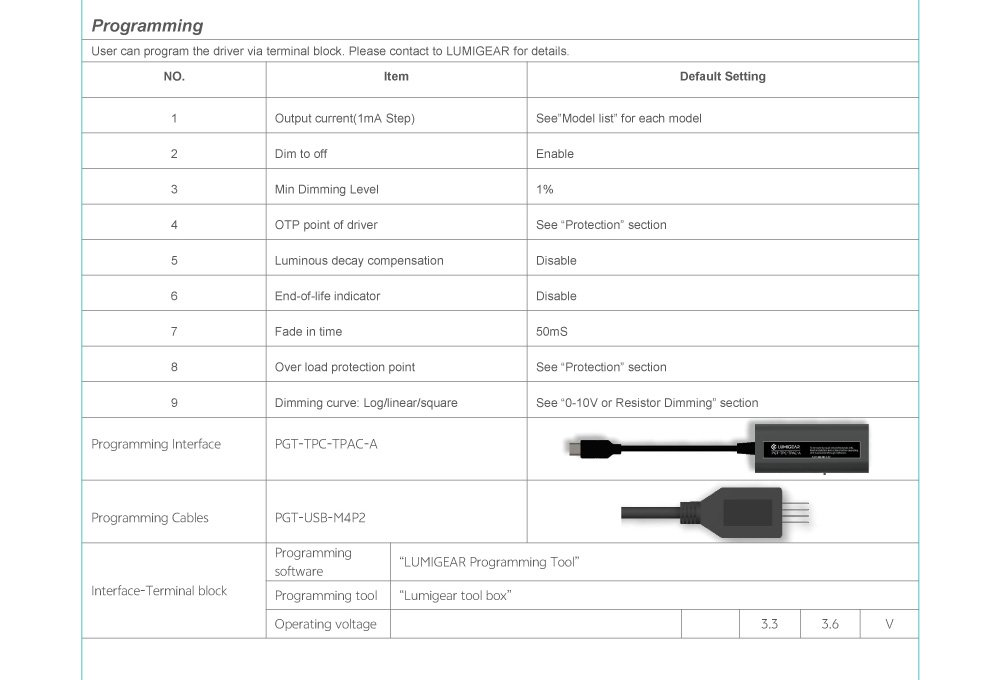

• Programmable Features
• Output current, dim to off, min dimming level
• OTP point of driver, luminous decay compensation,
• End‐of‐life indicator, fade in time,

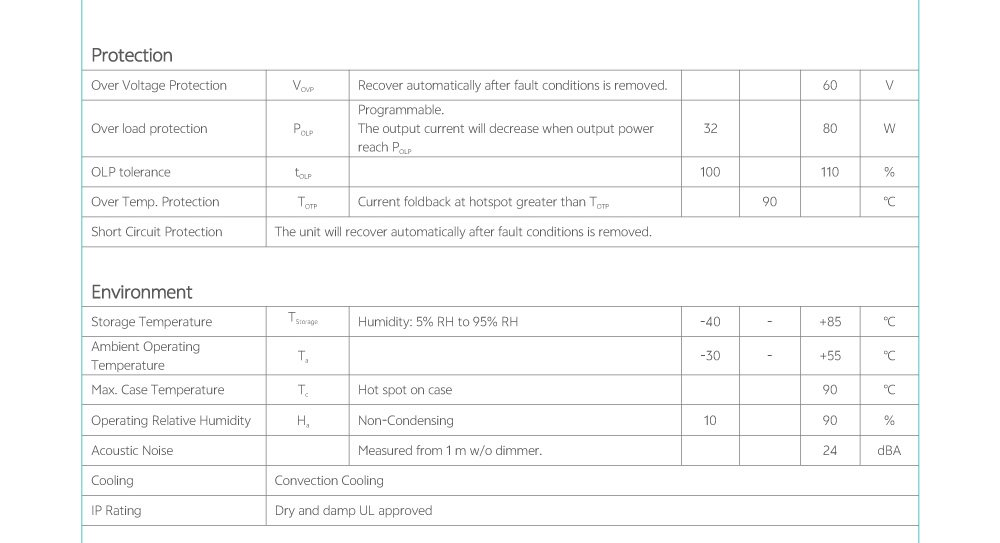

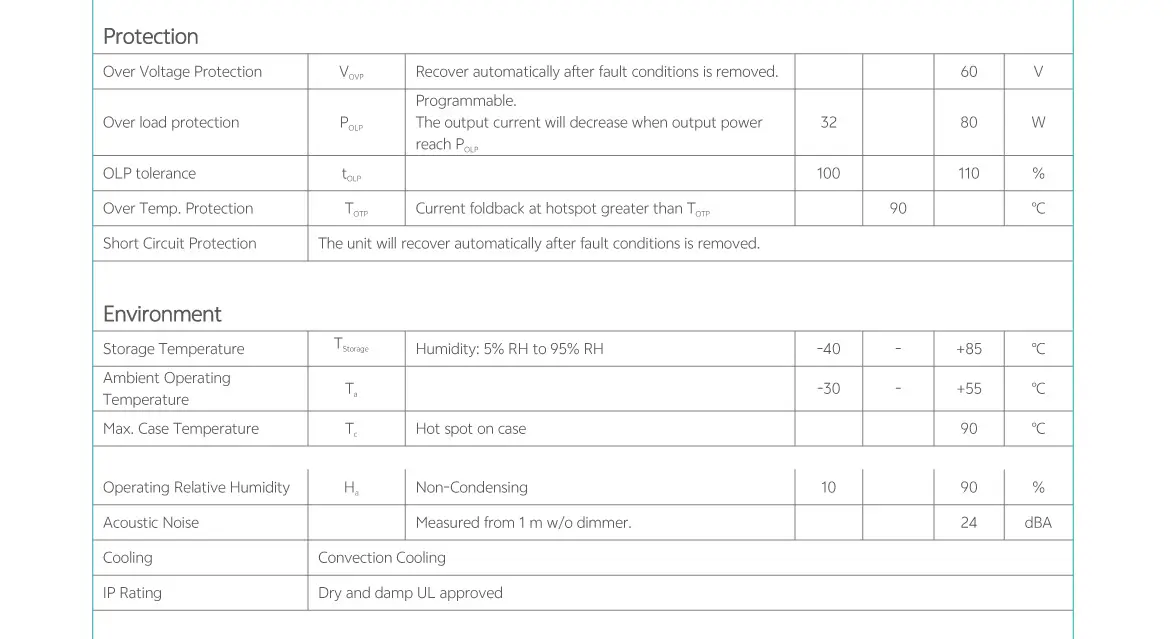

• over load protection point
• Dimming curve: log/linear/square dimming curves

             .           .
