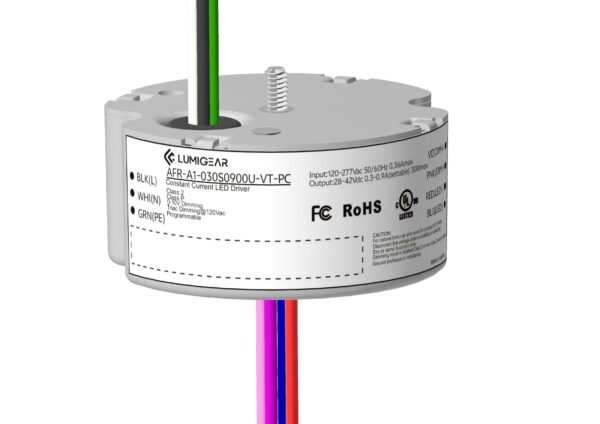

AFR-A1 Family: 15W 30W

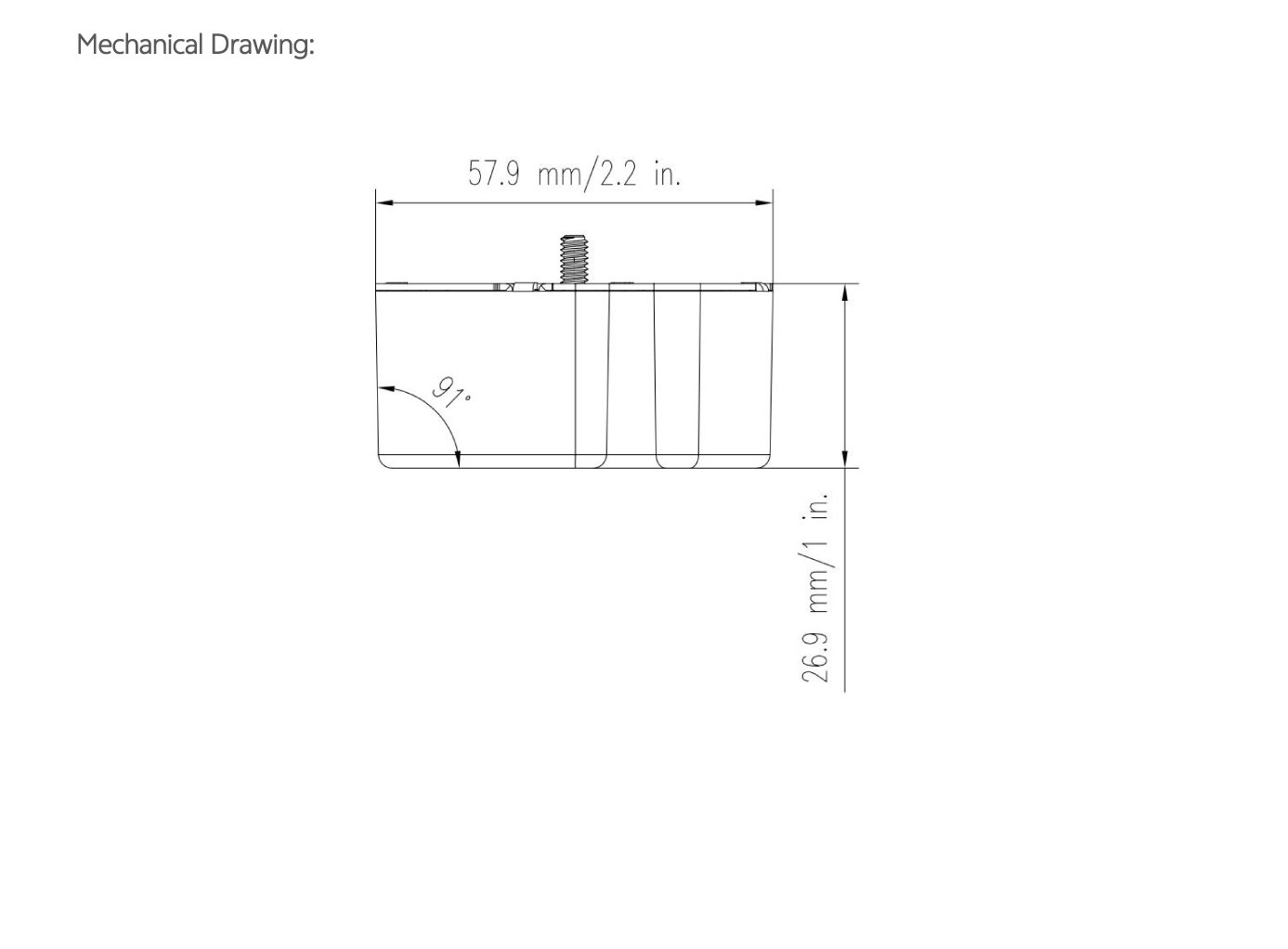

• Extreme compact form factor

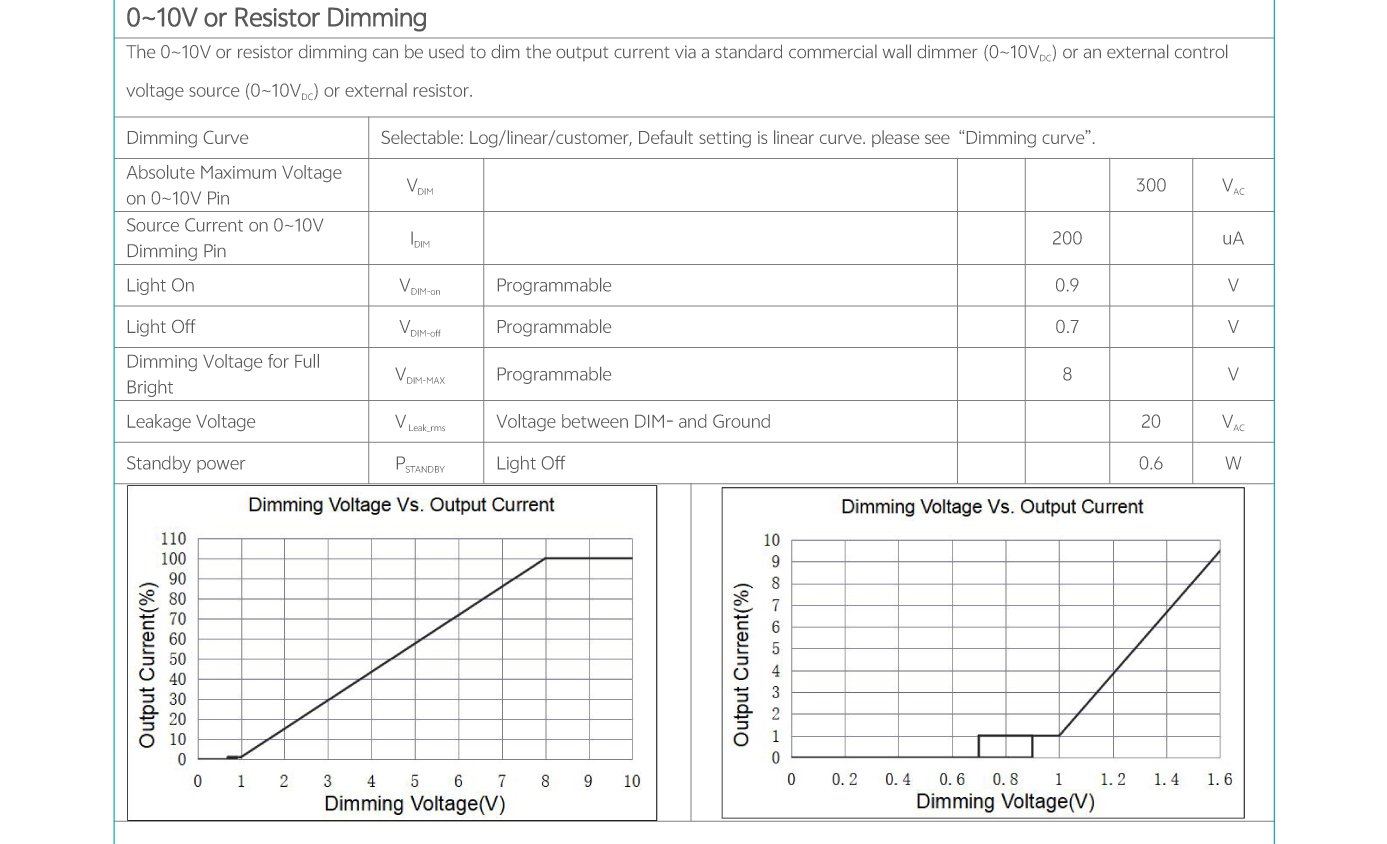

• Five‐in‐one dimming: 0-10V,1-10V,MLV,ELV,TRIAC
• True 1% dimming over full output current range
• High power density design, white aluminum sheet metal case
• Complies with phase cut dimming and isolated 0-10V dimming,dim down to true 1%

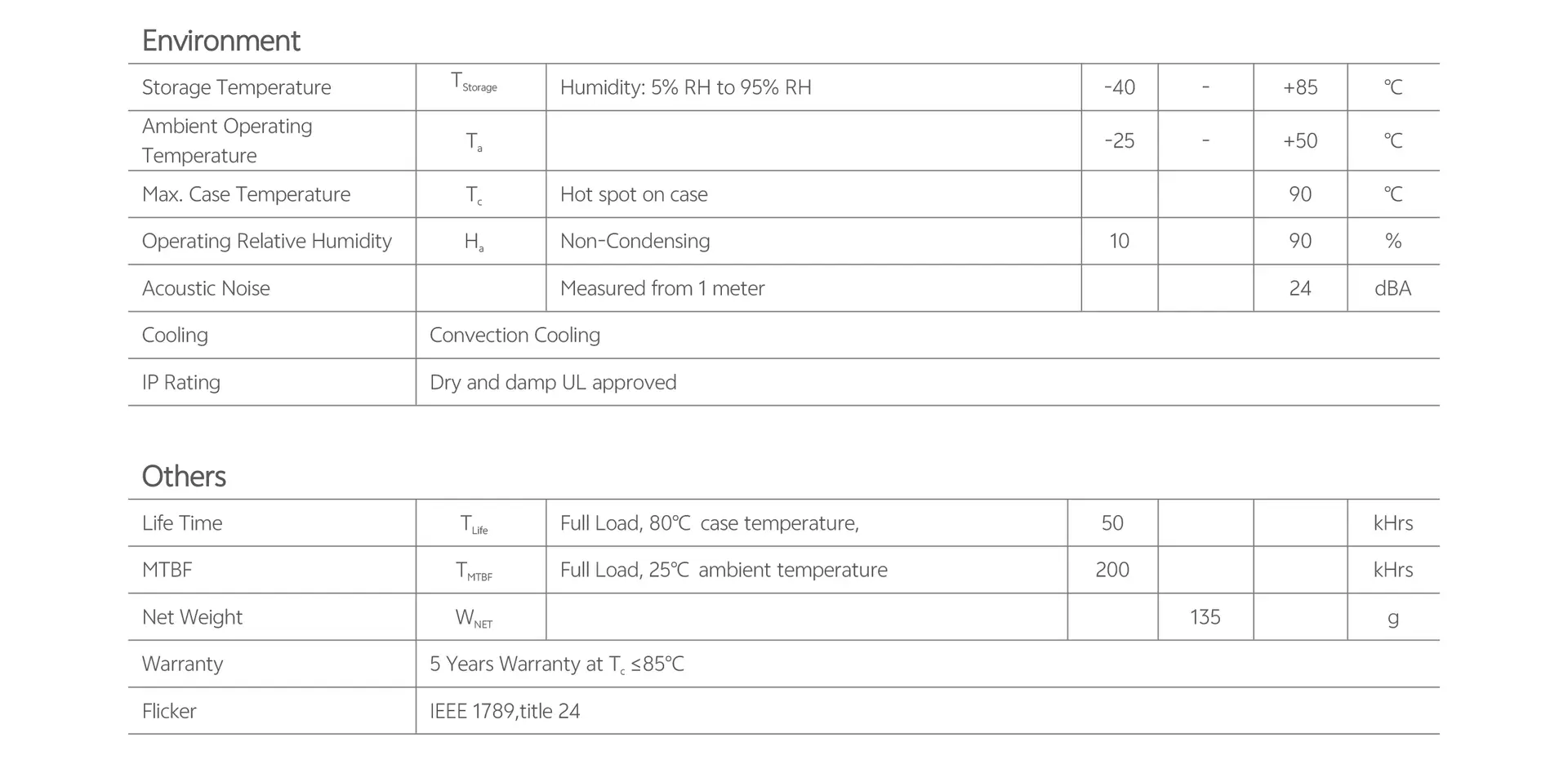

• Suitable for indoor use
• Flicker‐free, excellent camera compatibility

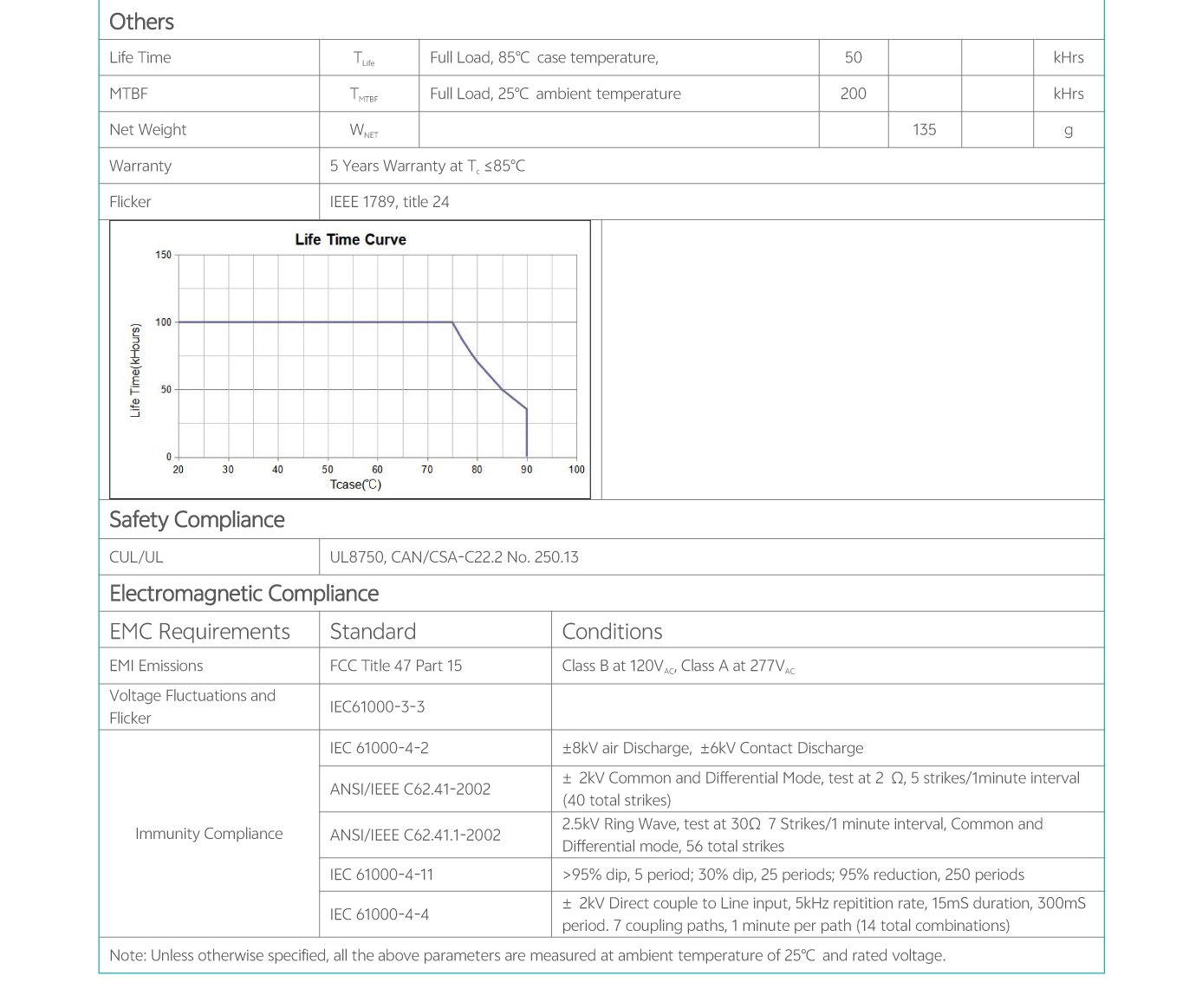

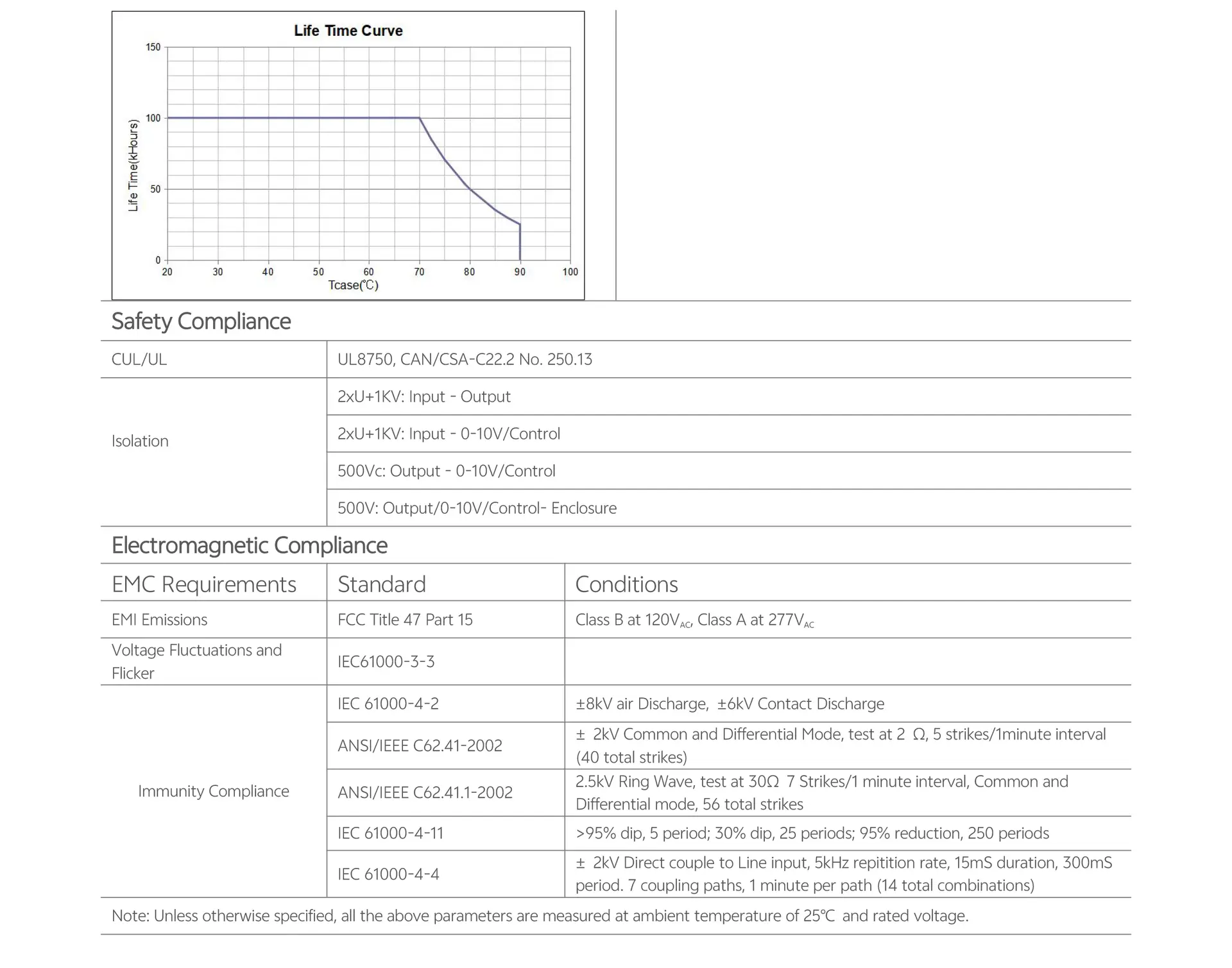

• Nominal lifetime up to 50,000 hours
• 5‐year warranty

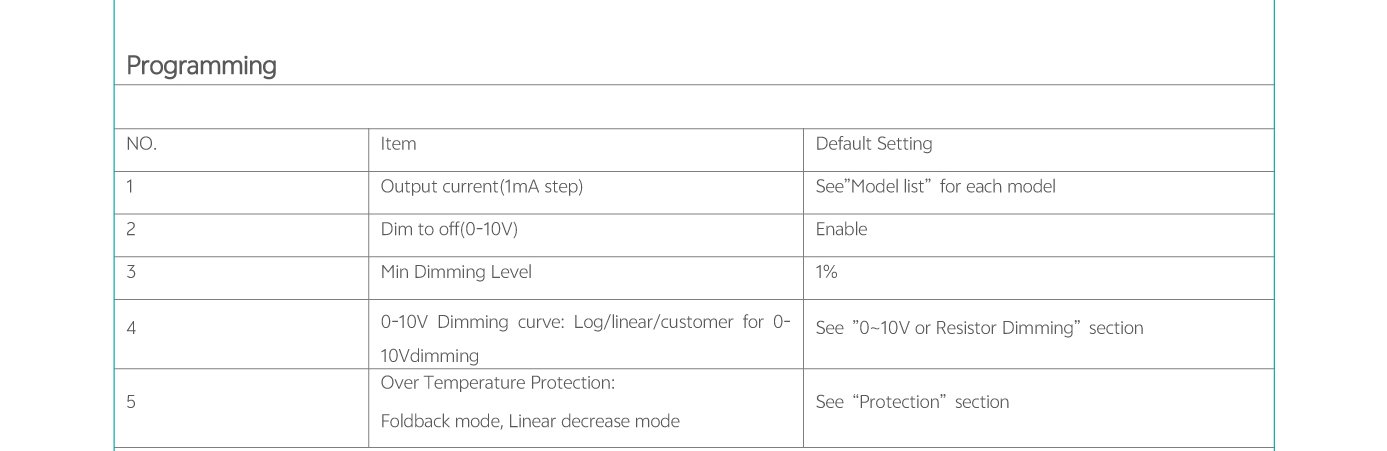

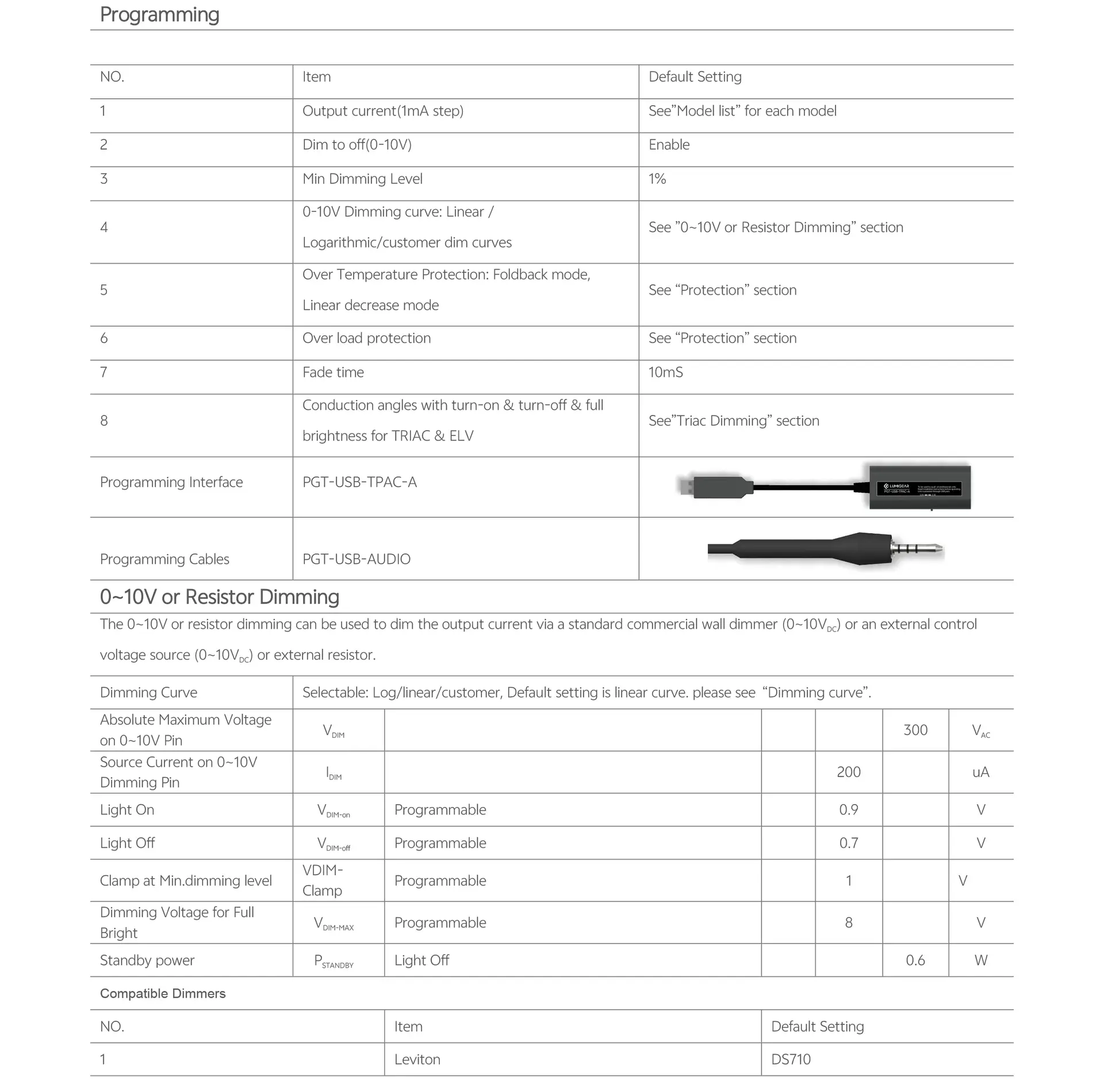

• Programmable Features：

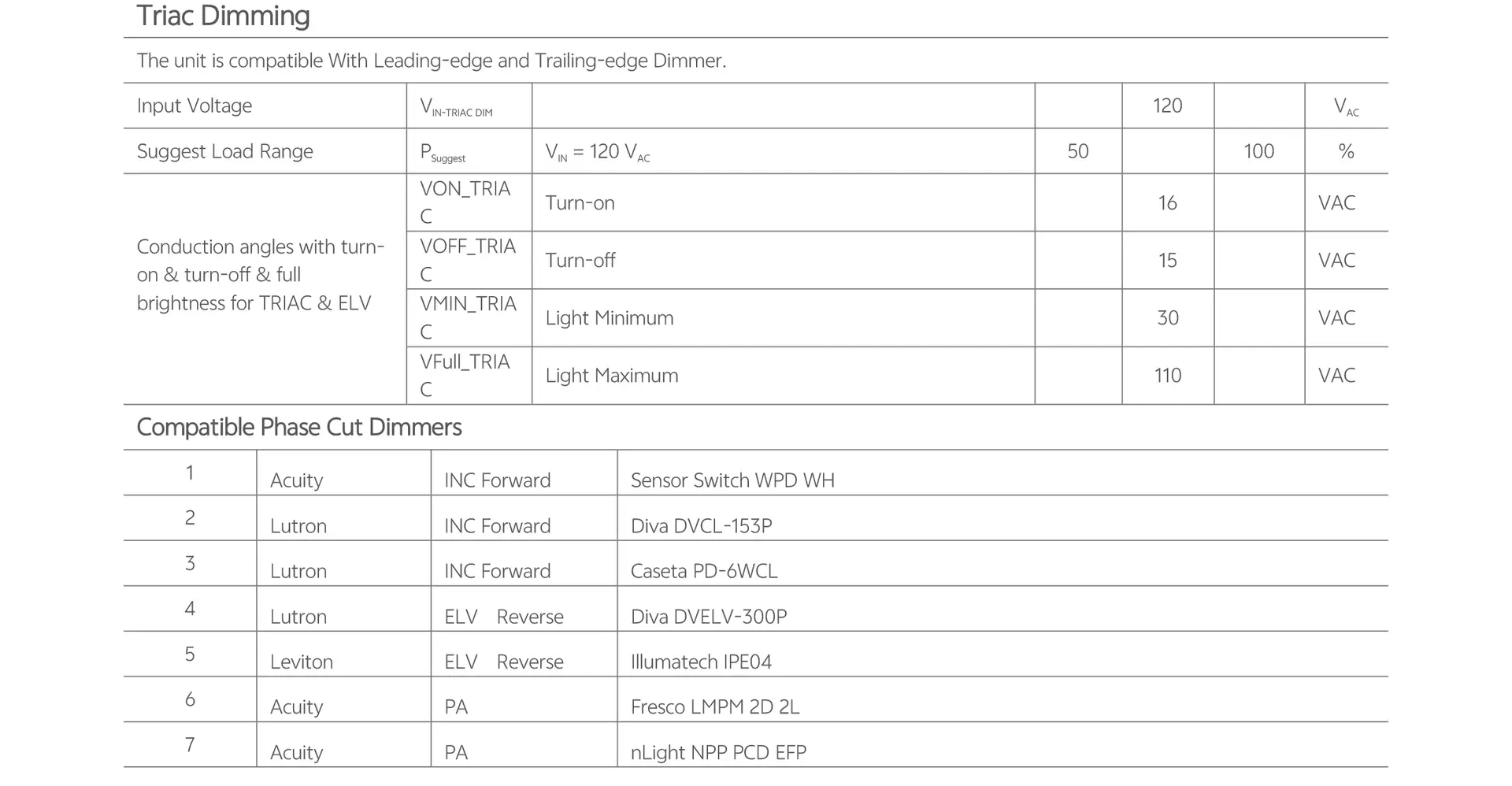

• Programmable conduction angles with turn‐on& turn‐off for TRIAC & ELV
• Dim to off, min dimming level

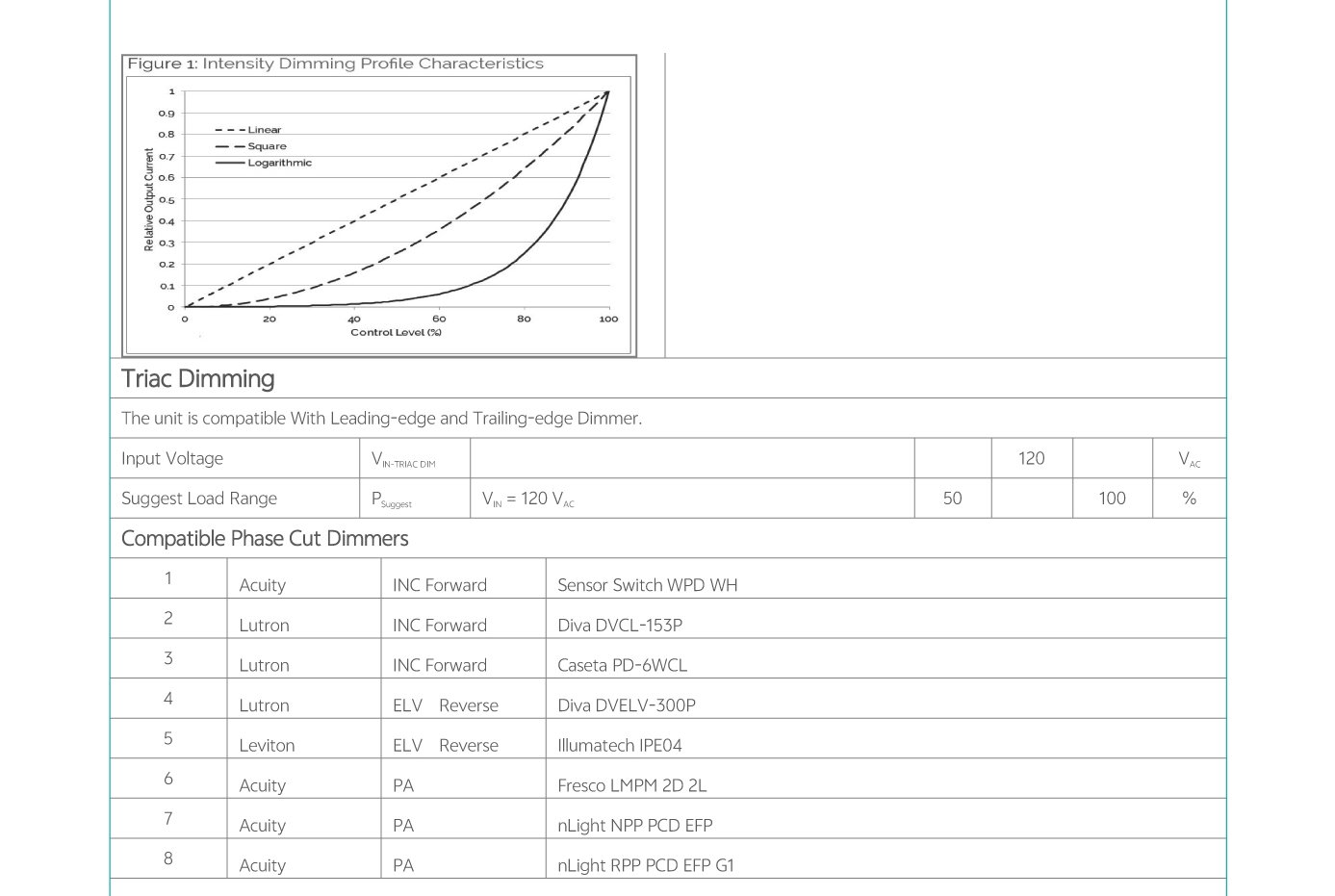

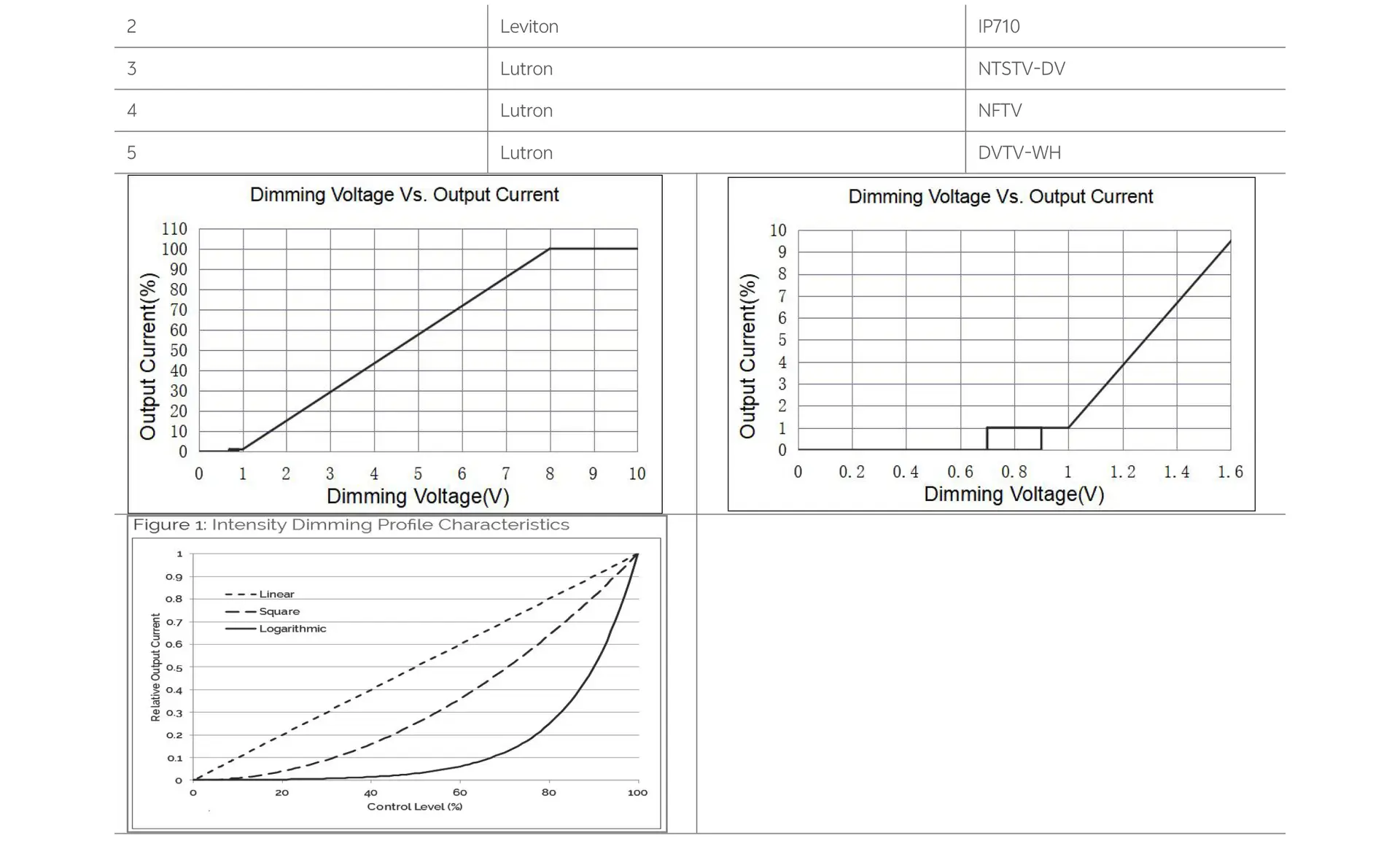

• Dimming curve: log/linear/customized

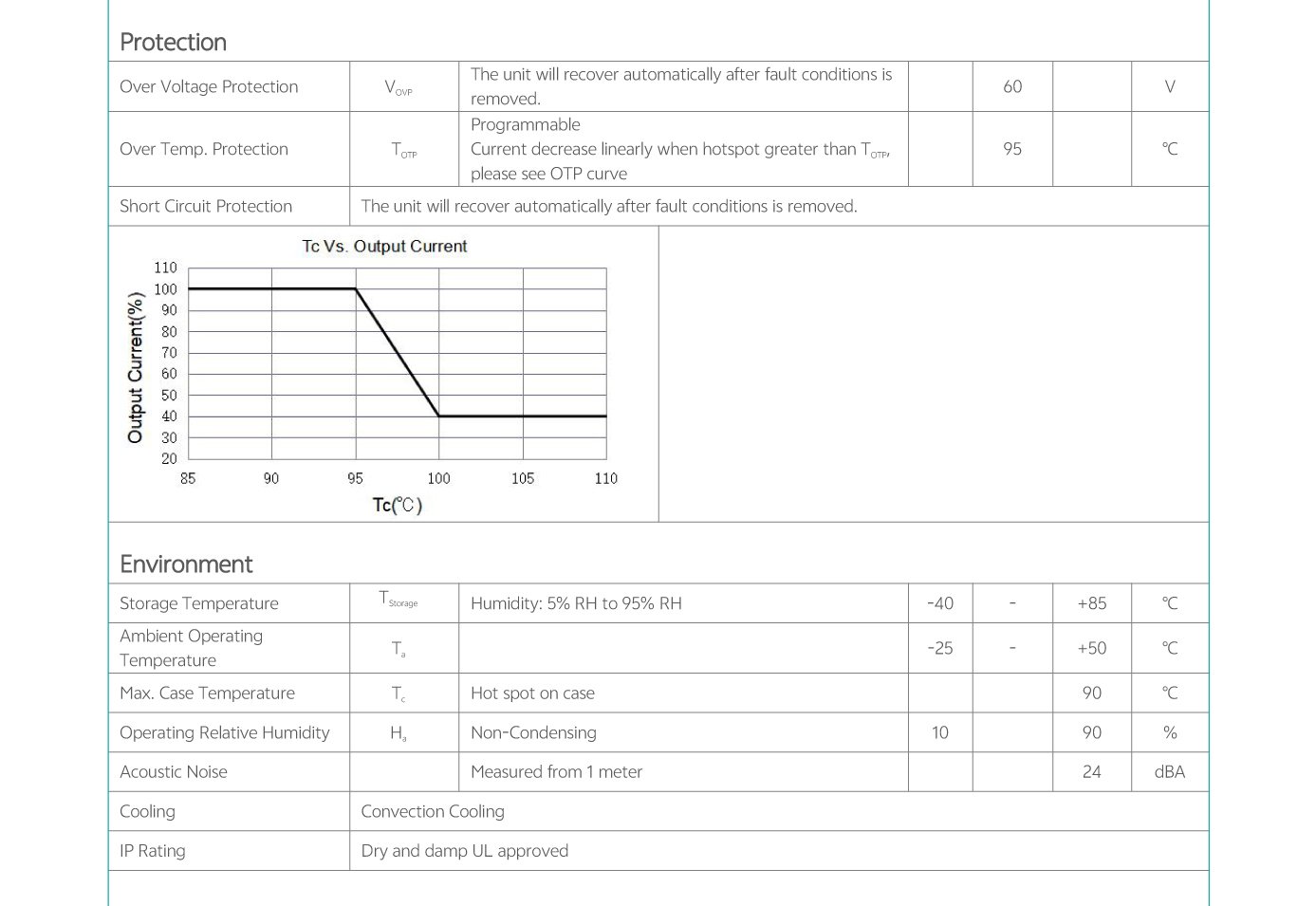

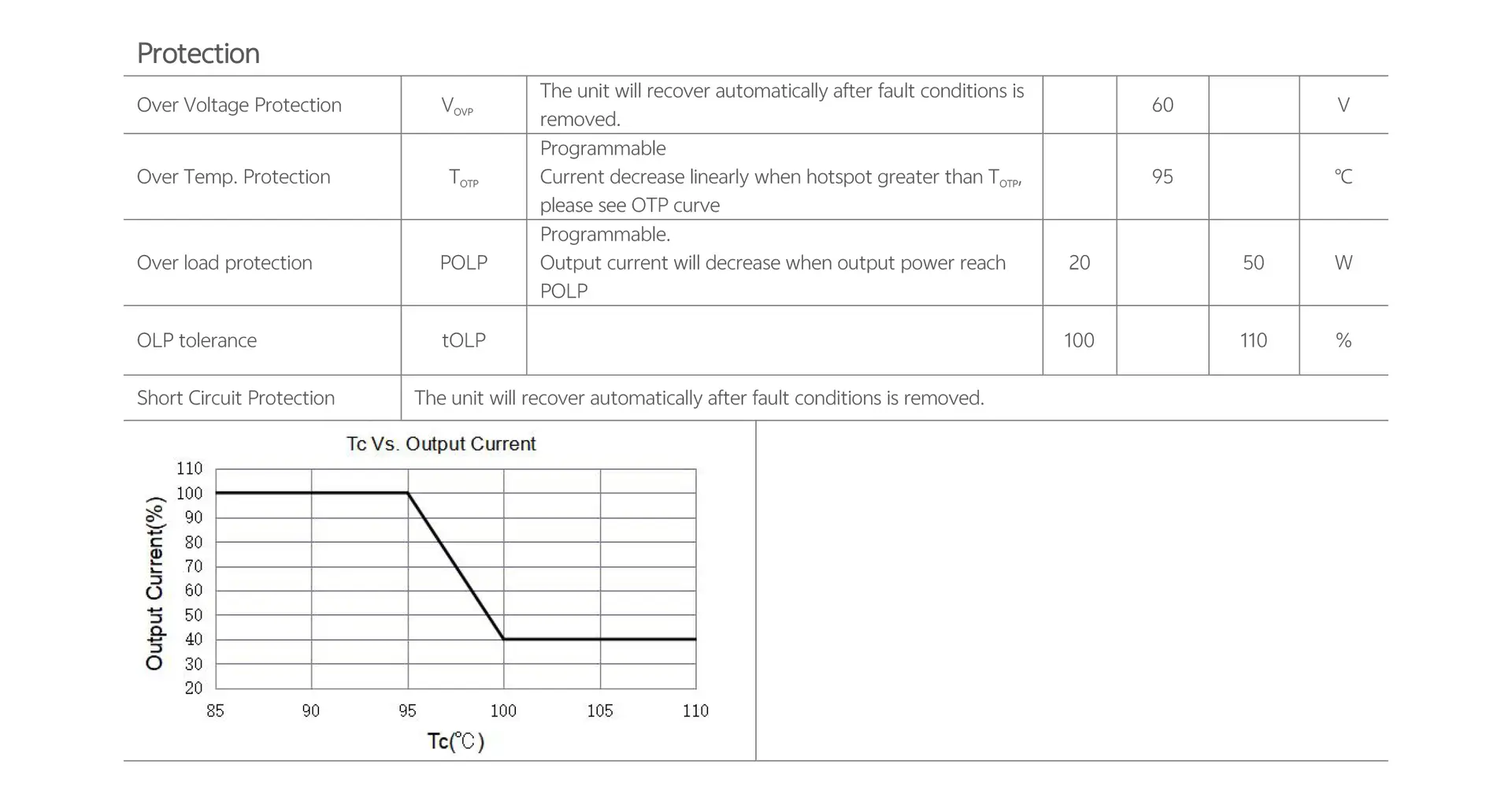

• OTP mode: foldback mode, linear decrease mode
• Dimming fade time
• Overload protection
• Output current(1mA step)

             .           .
