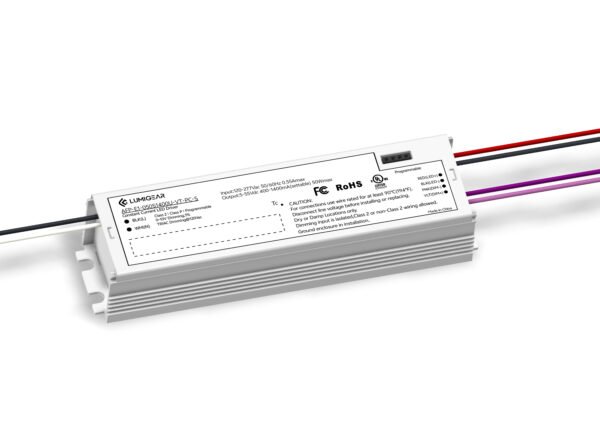

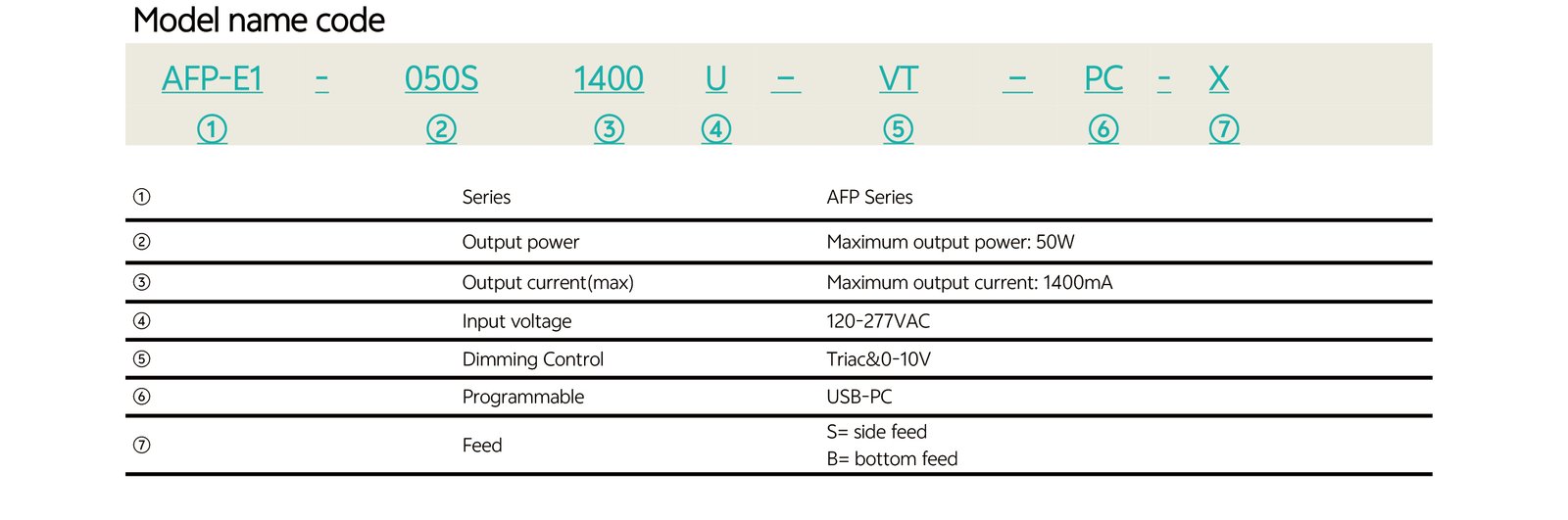

AFP-E1-50W

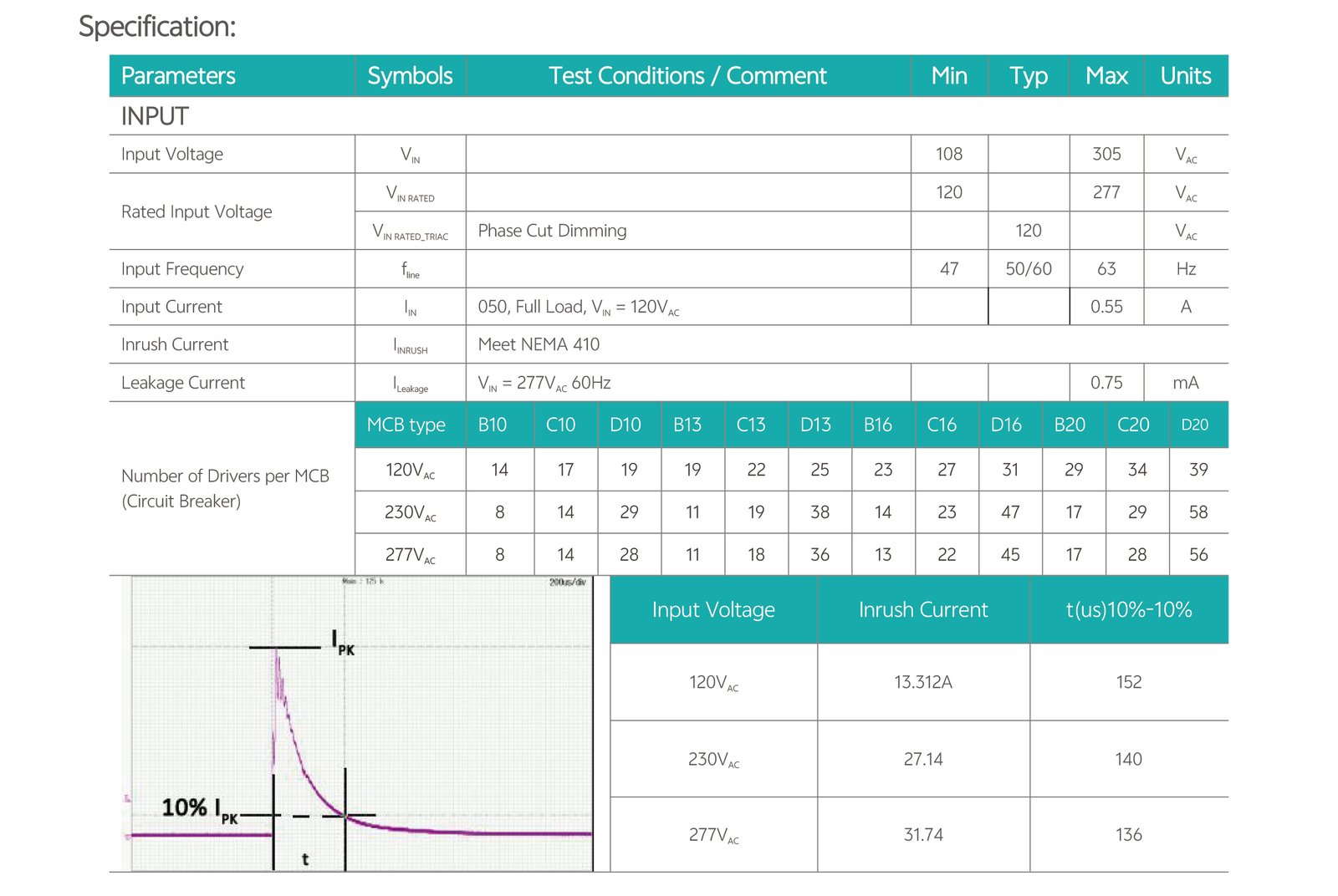

• Universal AC Input Voltage(120-277VAC)
• High Power Density Design, Black aluminum sheet metal case

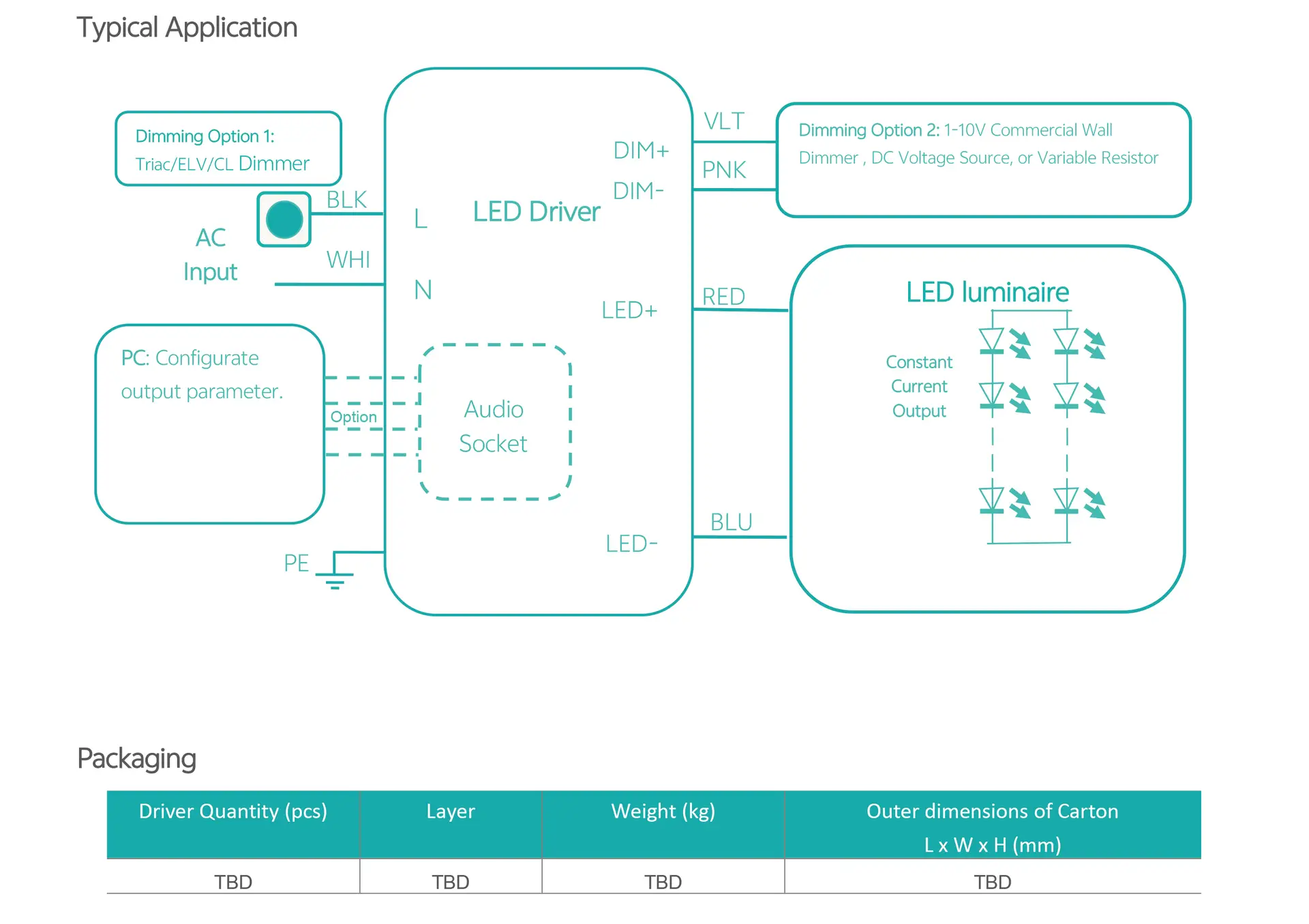

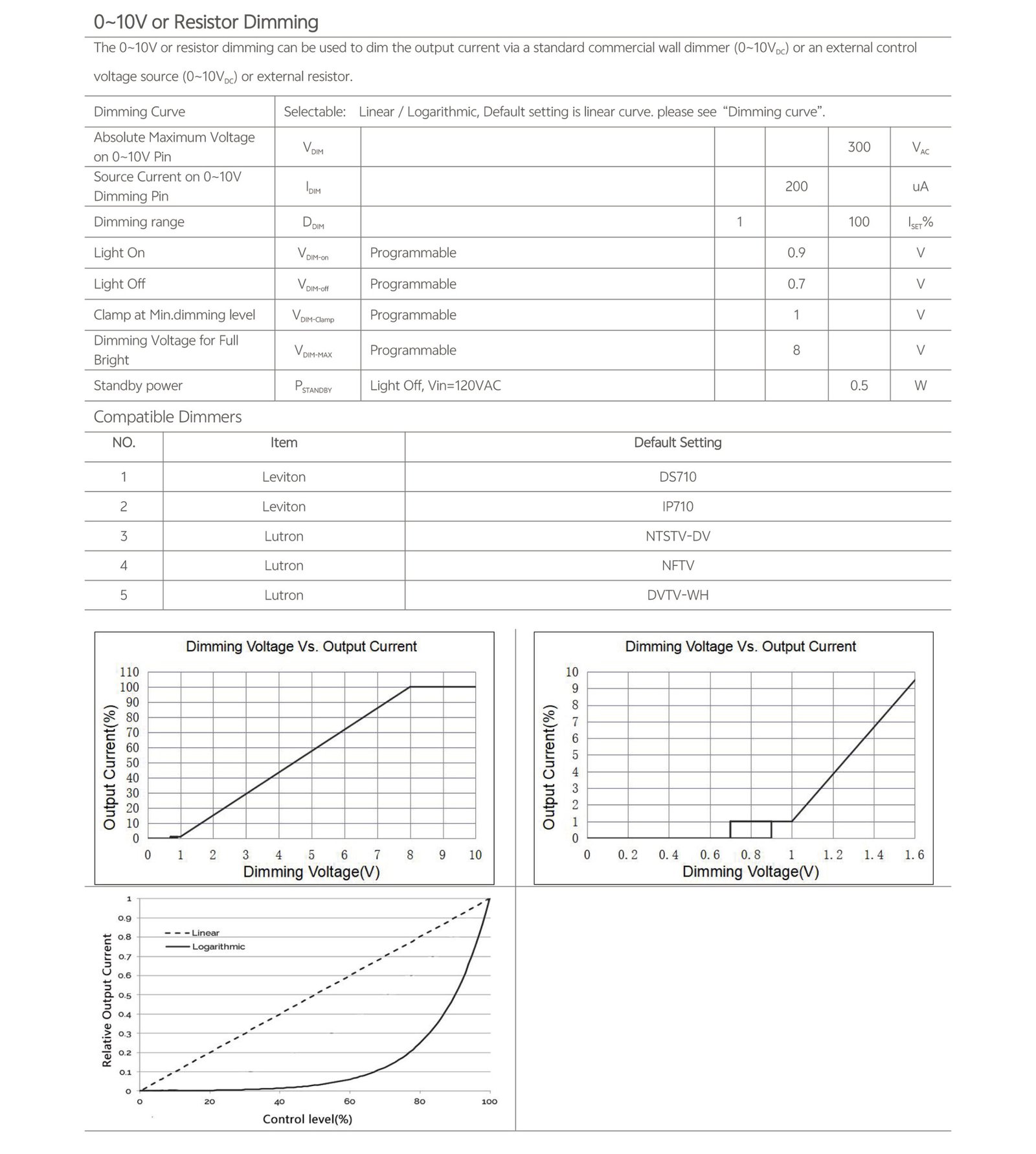

• Comply with phase cut dimming and isolated 0-10V dimming, dim down to true 1%
• Silicon potted for good thermal performance
• Suitable for indoor use
• Flicker free, excellent camera compatibility
• UL Class2, Class P
• Combination Wave 2kV, Ring Wave 2.5kV

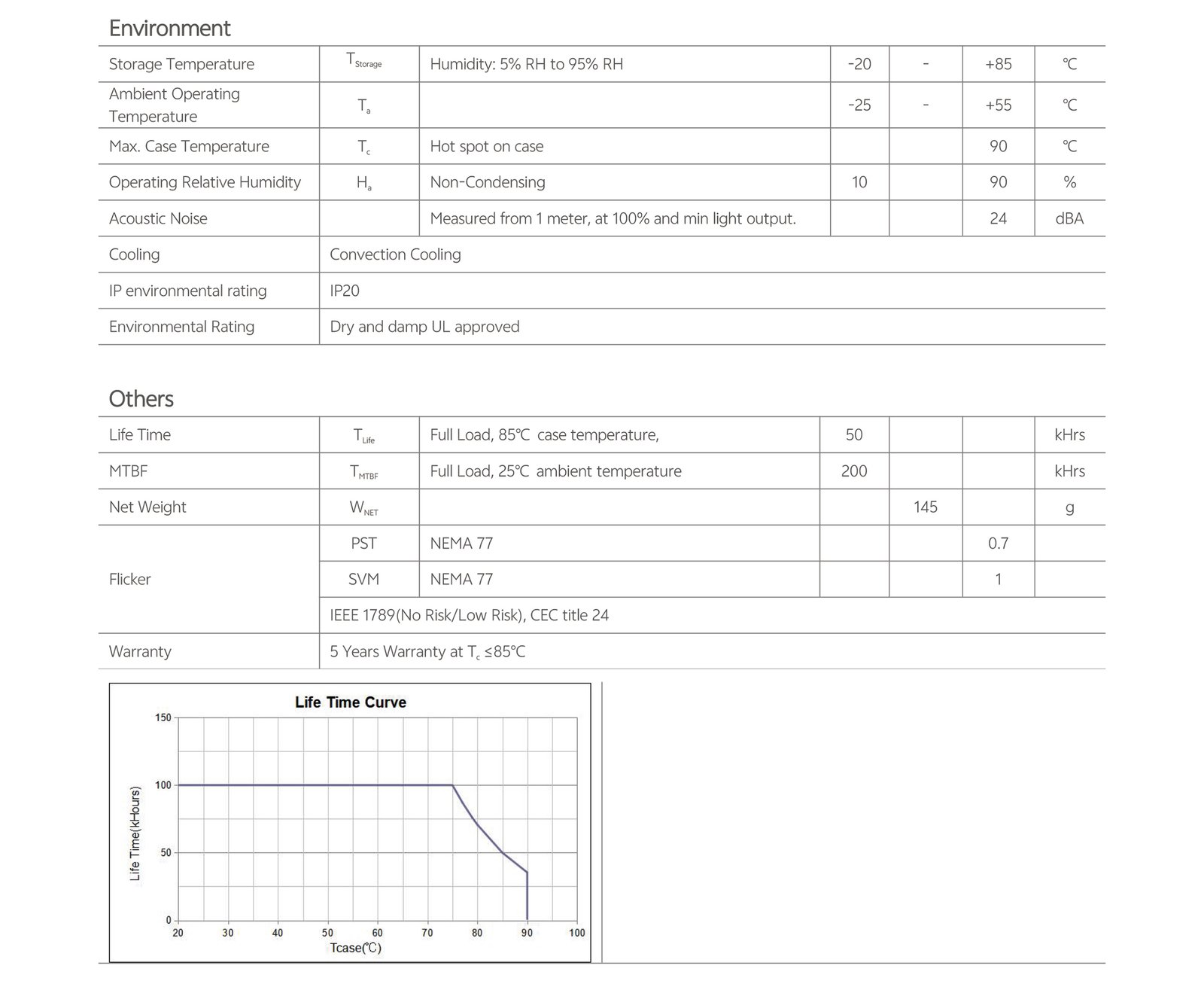

• Operating temperature: -25℃~+55℃

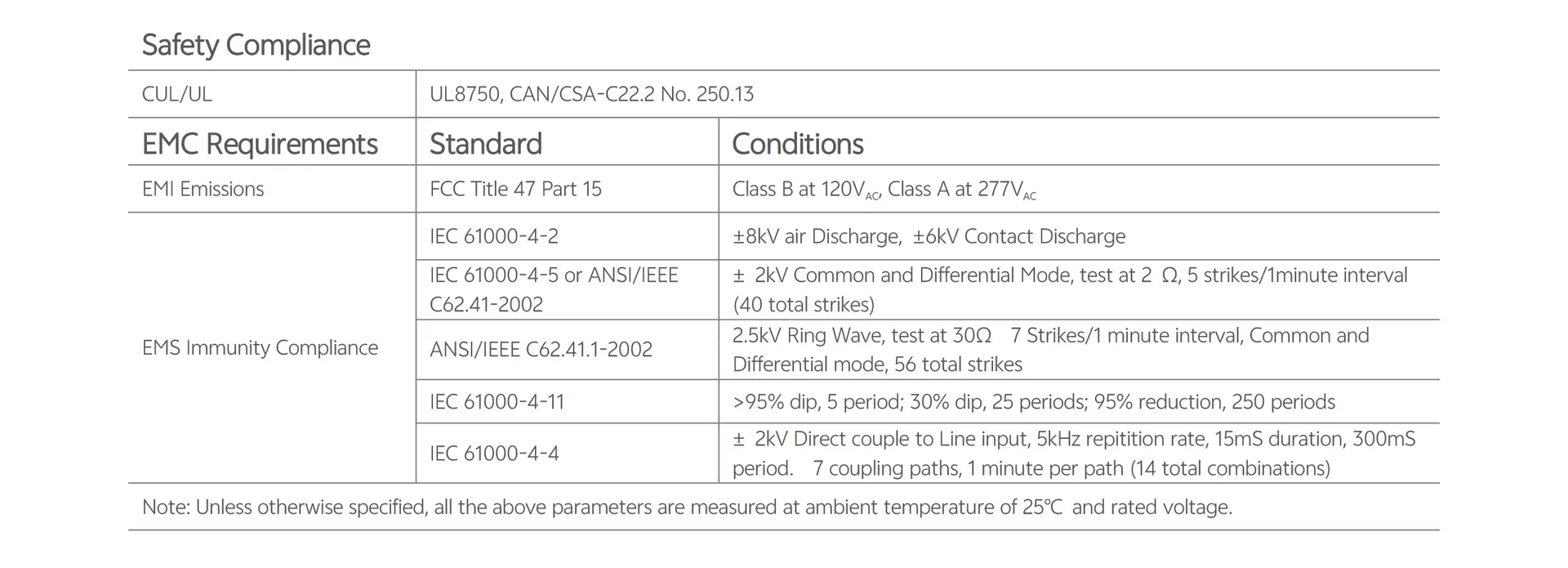

• Comply with UL8750, IEEE1789

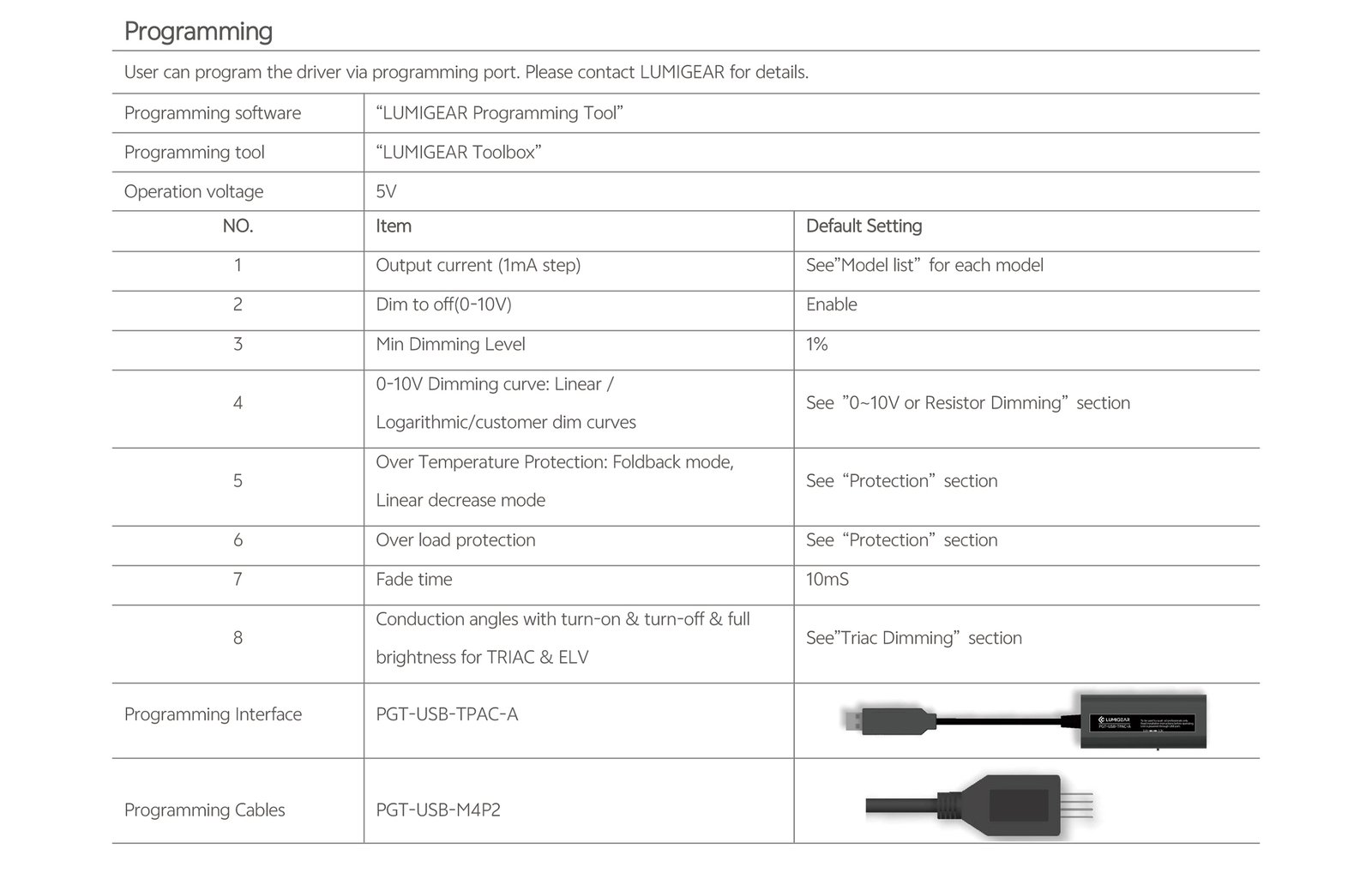

Programmable Features：

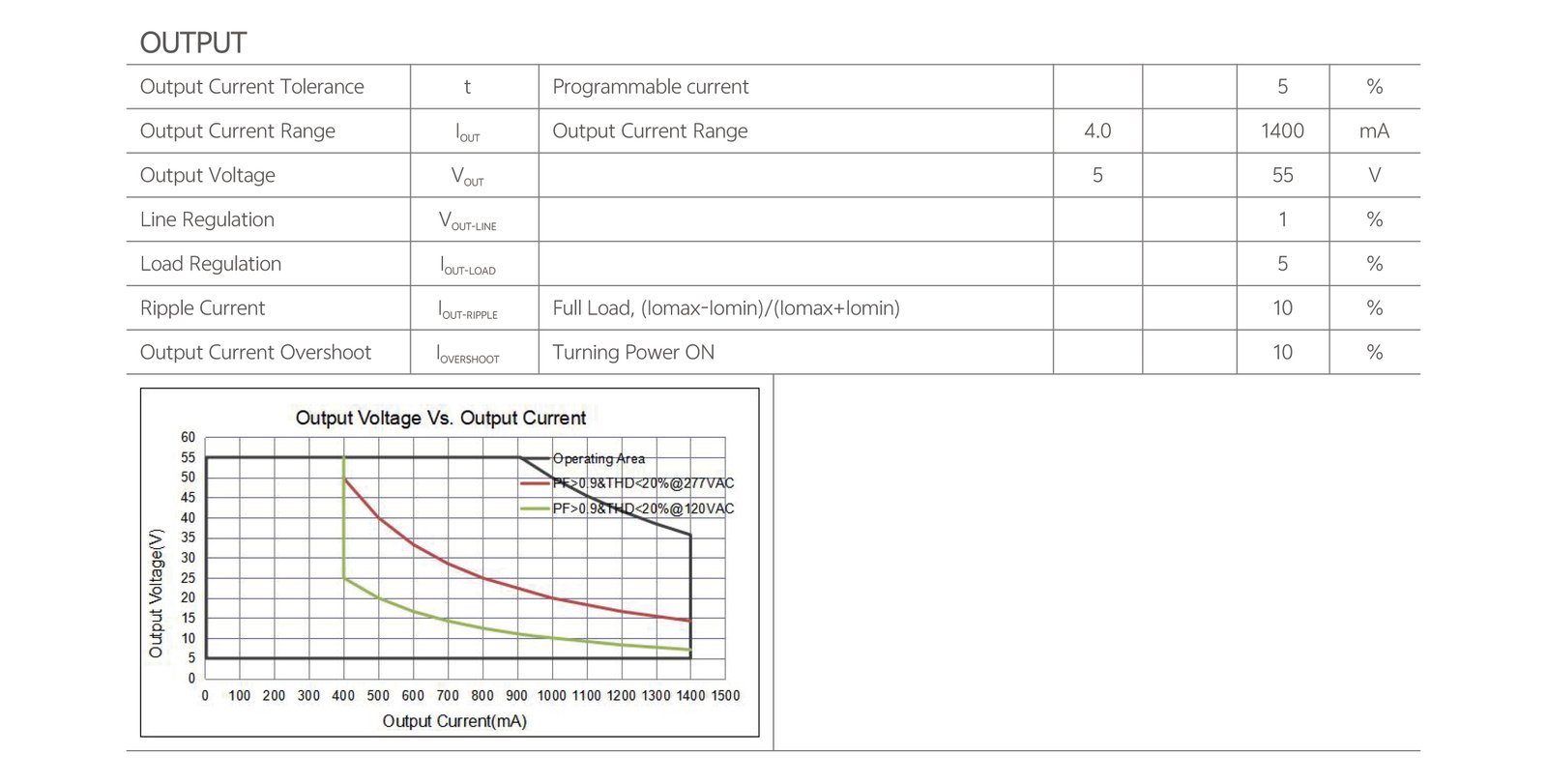

• Output current (1mA step)
• Dim to off, Min Dimming Level

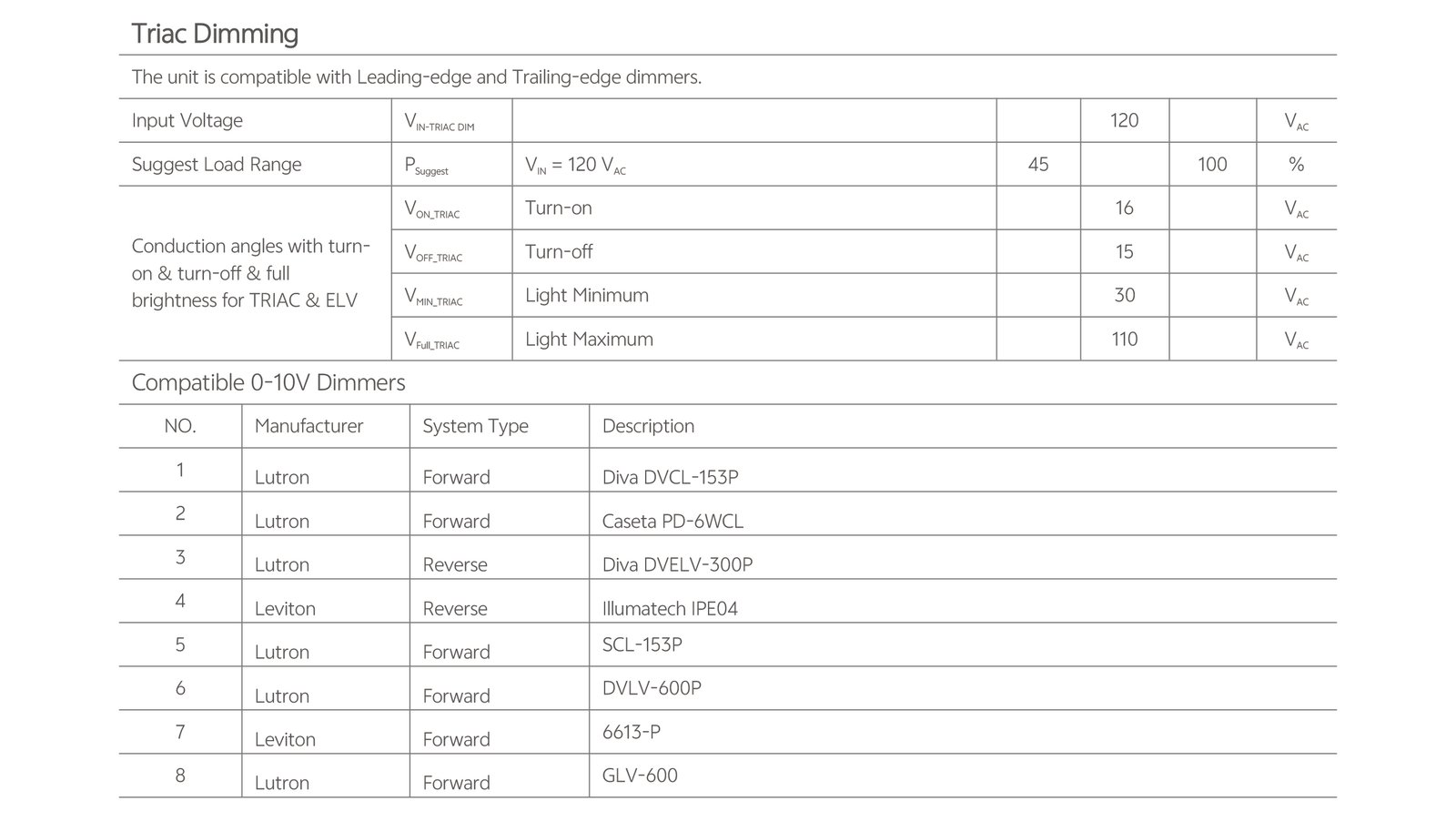

• Programmable conduction angles with turn-on & turn-off for TRIAC & ELV
• Dimming curve: Selectable Linear / Logarithmic
• OTP mode: Foldback mode, Linear decrease mode
• Dimming fade time(Soft start)

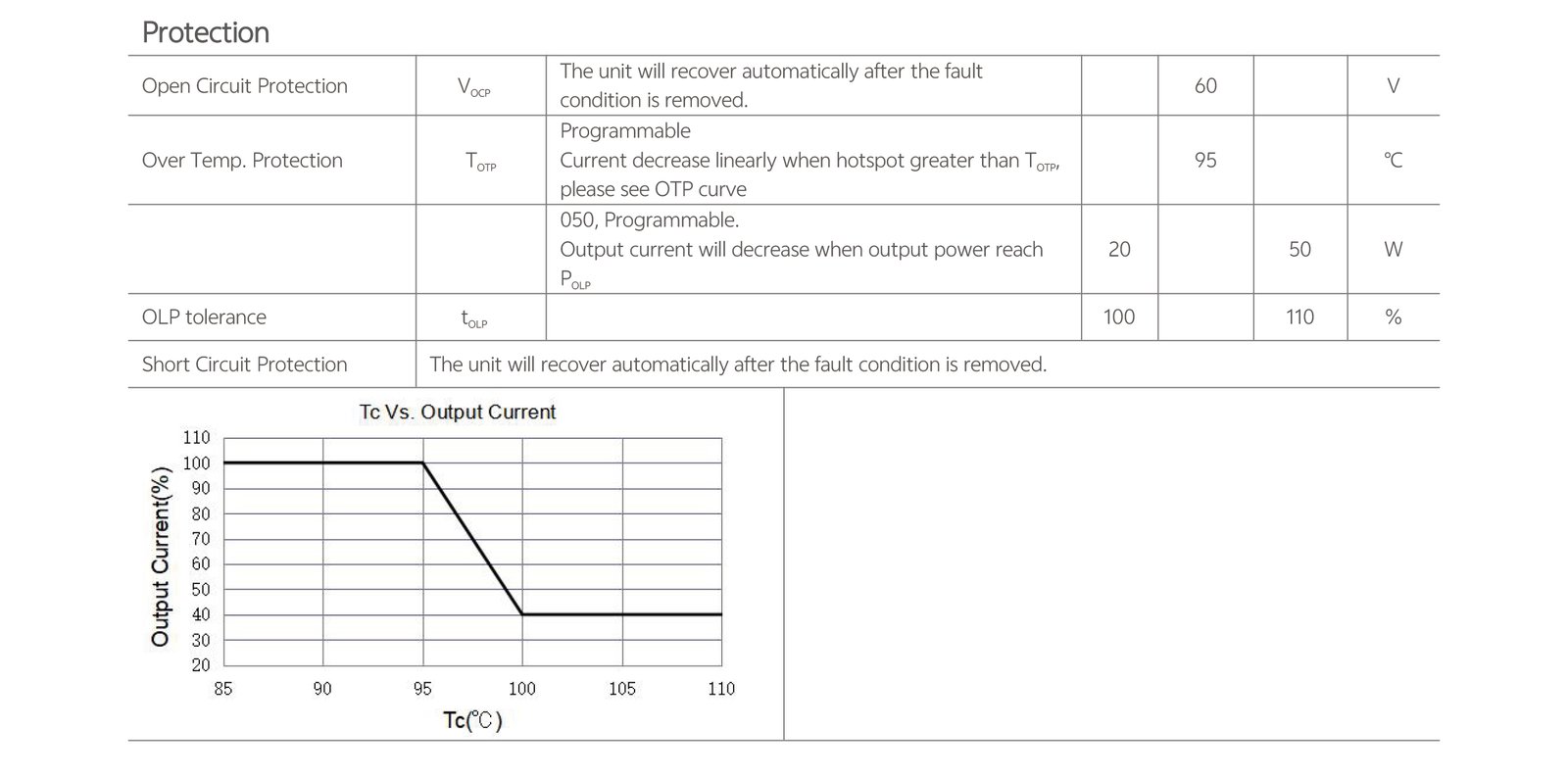

• Over load protection

             .           .
