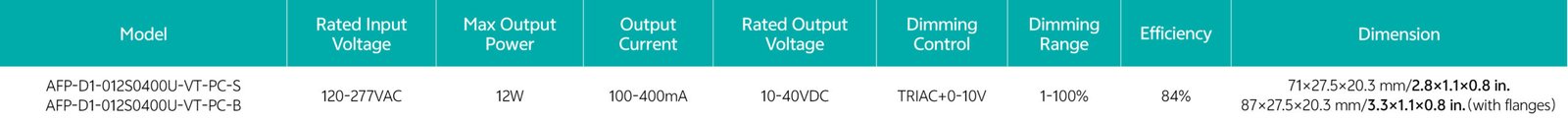

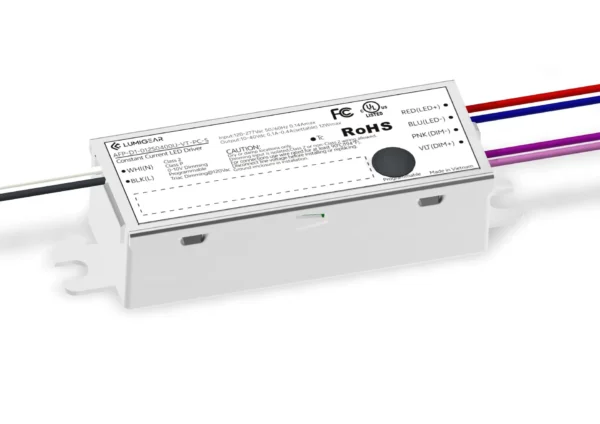

AFP-D1-12W

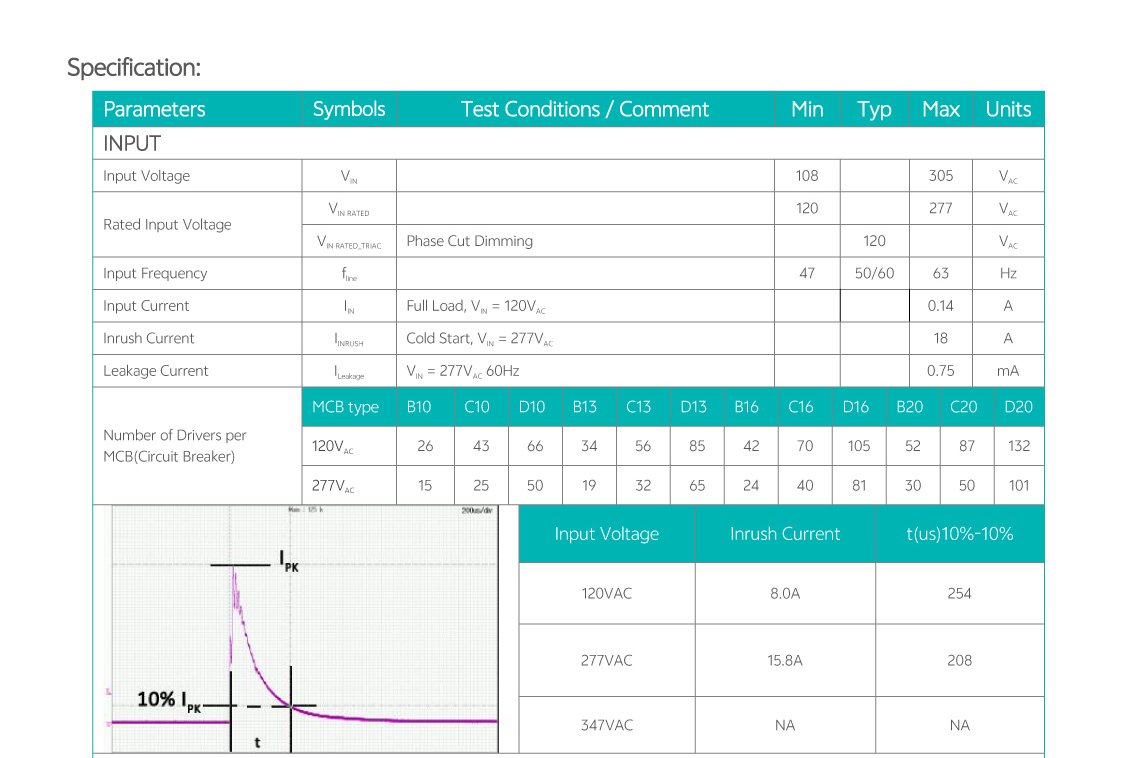

• Universal AC Input Voltage(120-277VAC)
• High Power Density Design, white aluminum sheet metal case

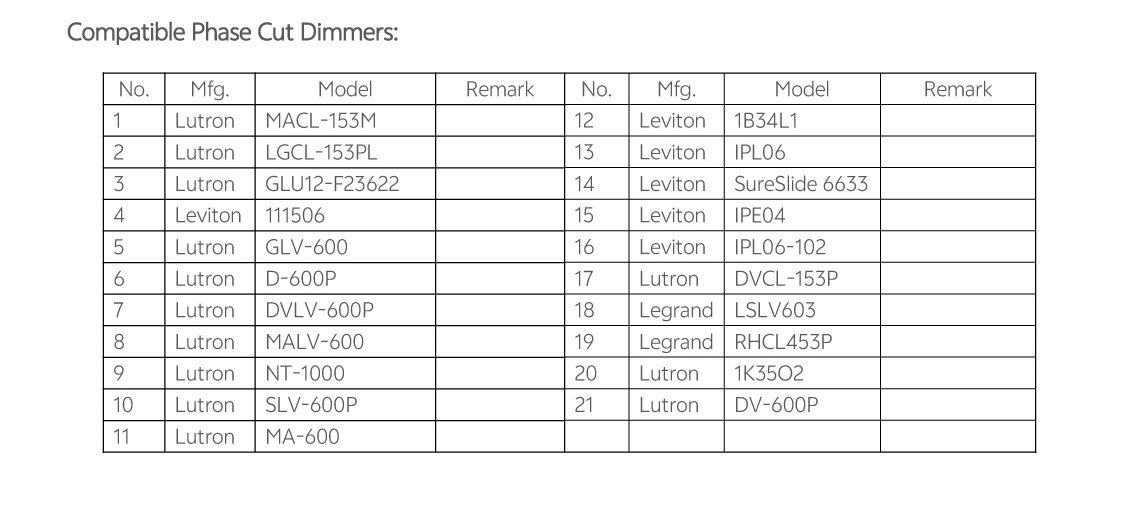

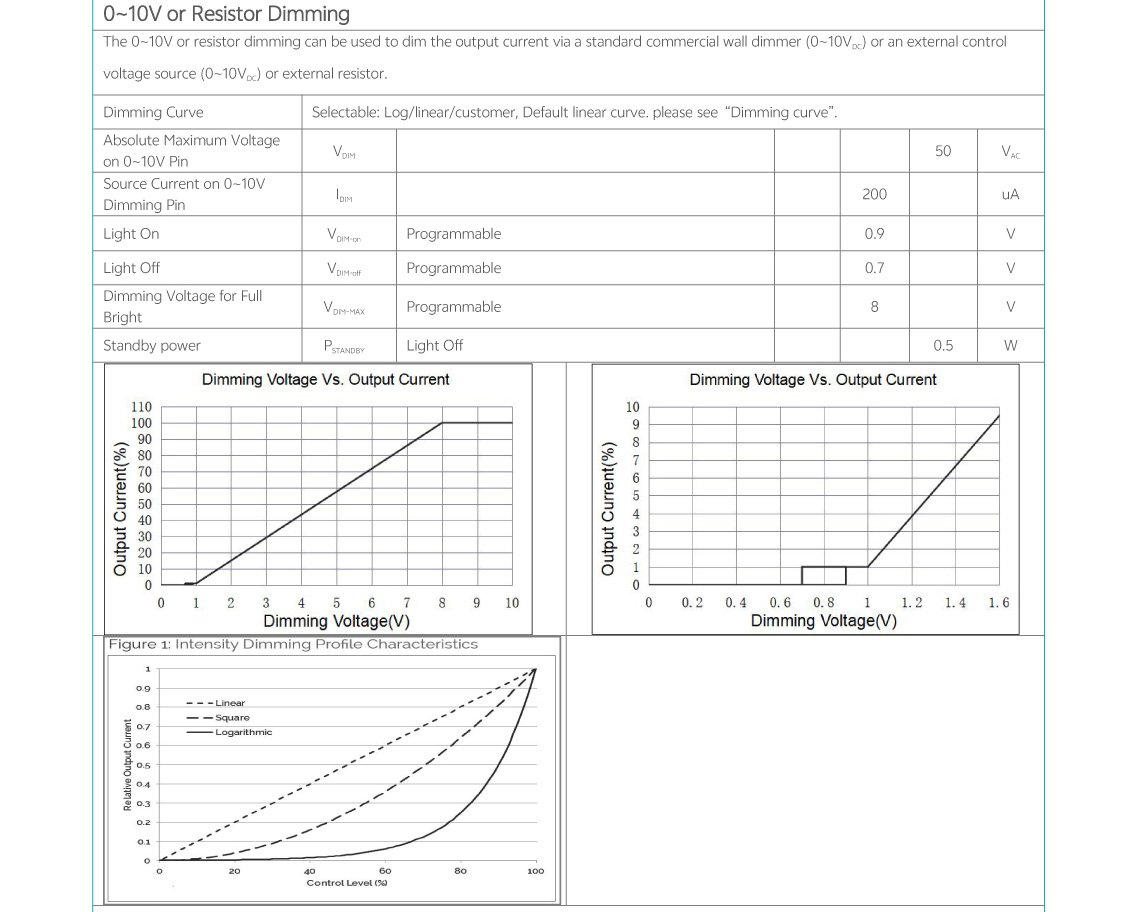

• Comply with phase cut dimming and isolated 0-10V dimming, dim down to true 1%
• Suitable for indoor use
• Flicker free, excellent camera compatibility

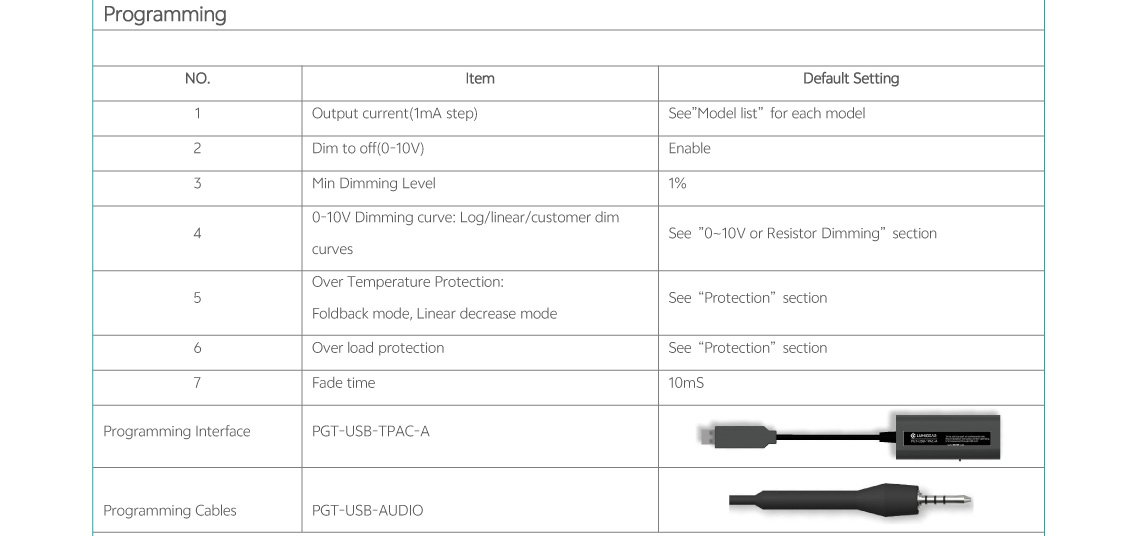

• Programmable Feature:
• Output current(1mA step)
• Dim to off, Min Dimming Level
• Programmable conduction angles with turn-on & turn-off for TRIAC & ELV
• Dimming curve: Log/linear/square dim curves

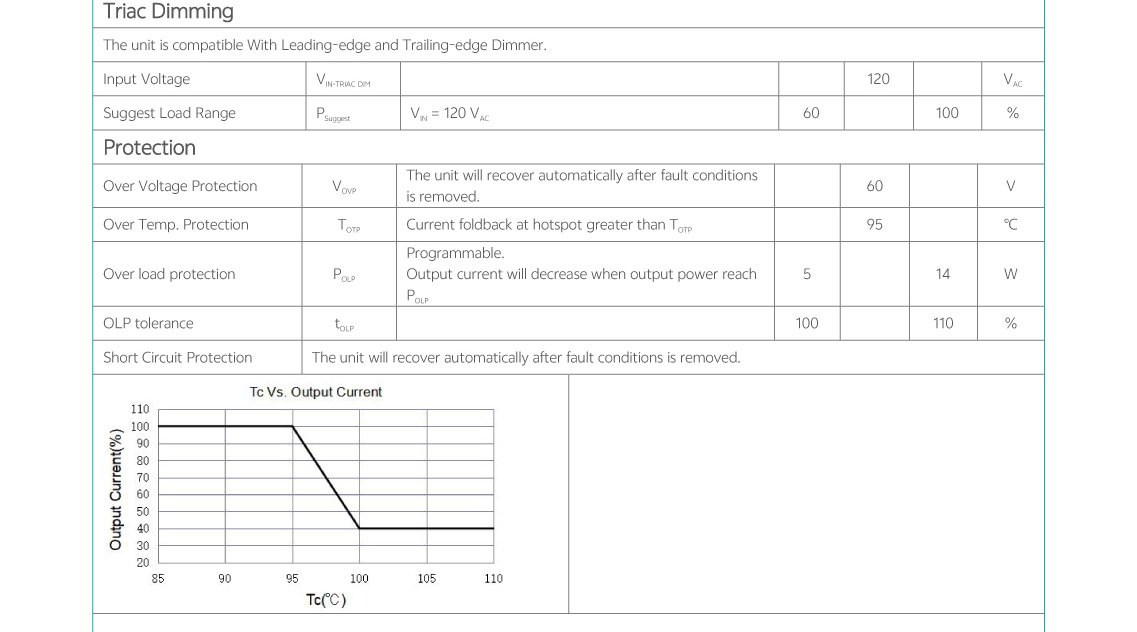

• OTP Mode: Foldback mode, Linear decrease mode
• Dimming fade time
• Over load protection

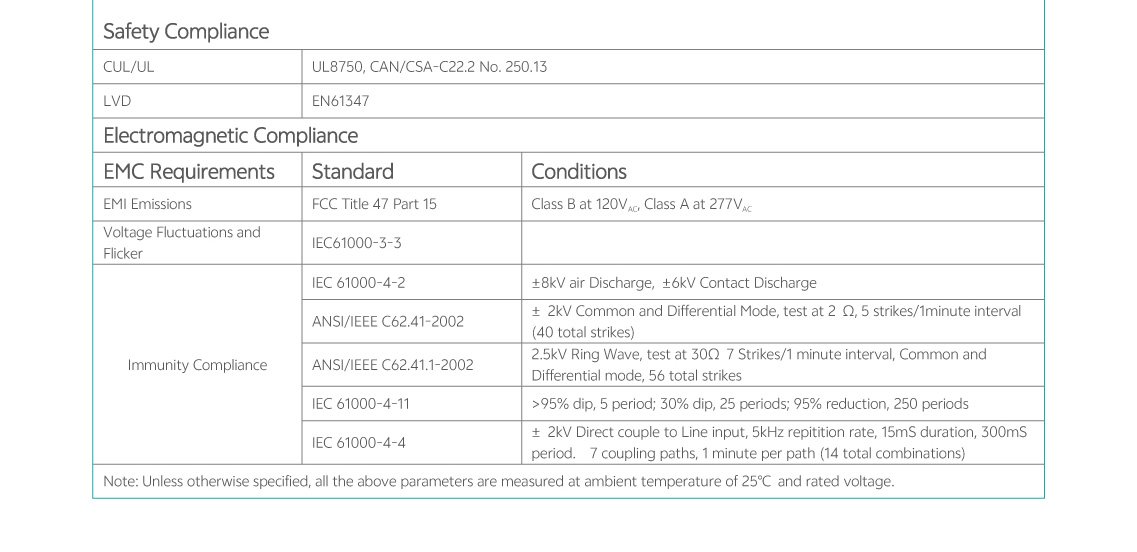

• UL Class2, Class P
• Combination Wave 2KV, Ringwave 2.5KV

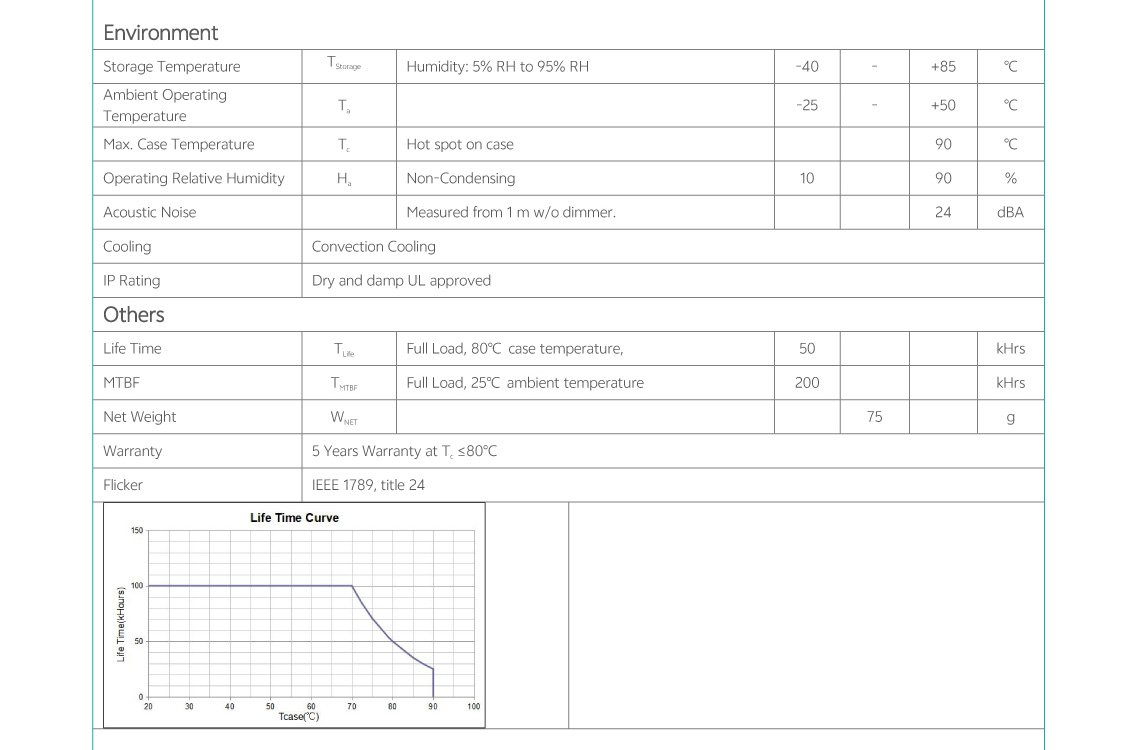

• Operating temperature: -25℃~+50℃
• Comply with IEEE1789, UL8750

             .           .
