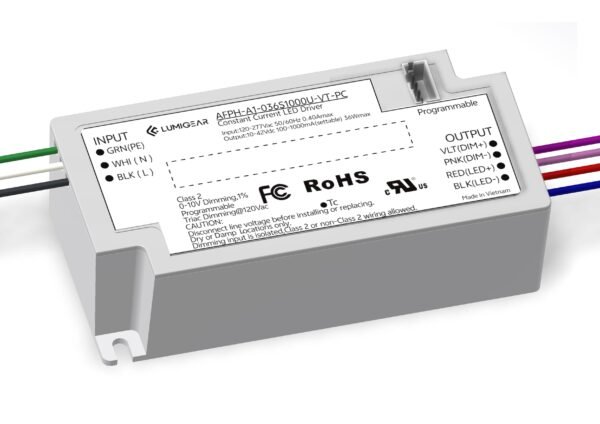

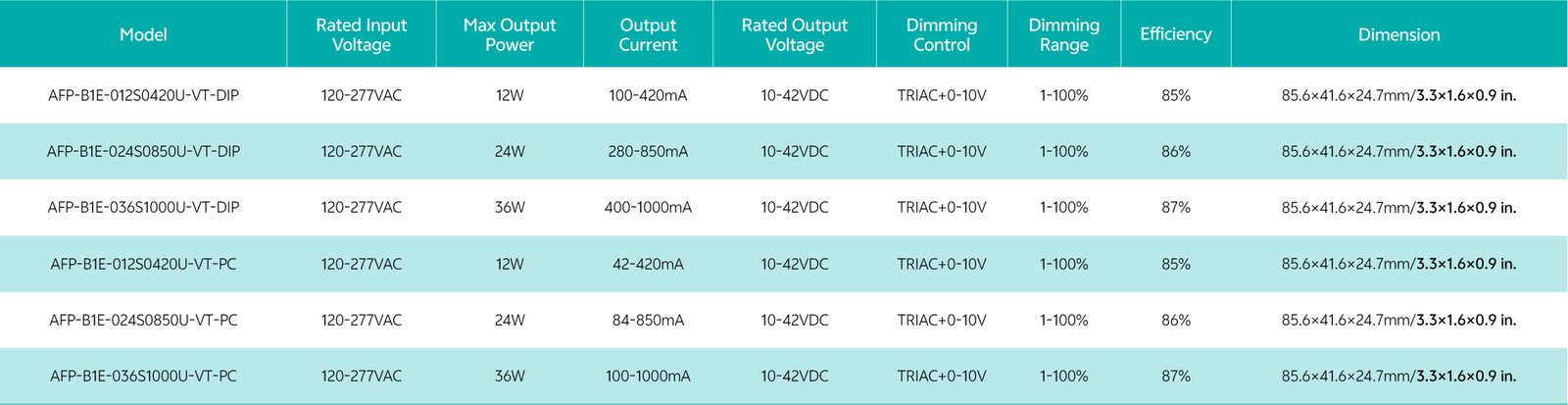

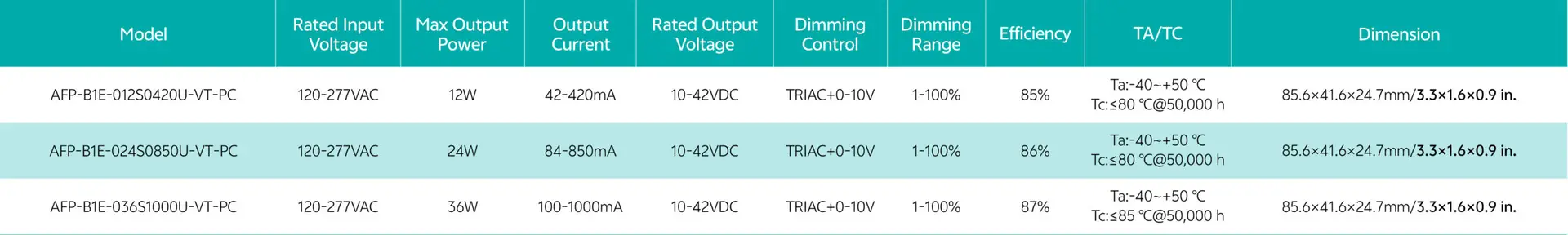

AFP-B1E-12W|24W|36W

• Extreme compact form factor

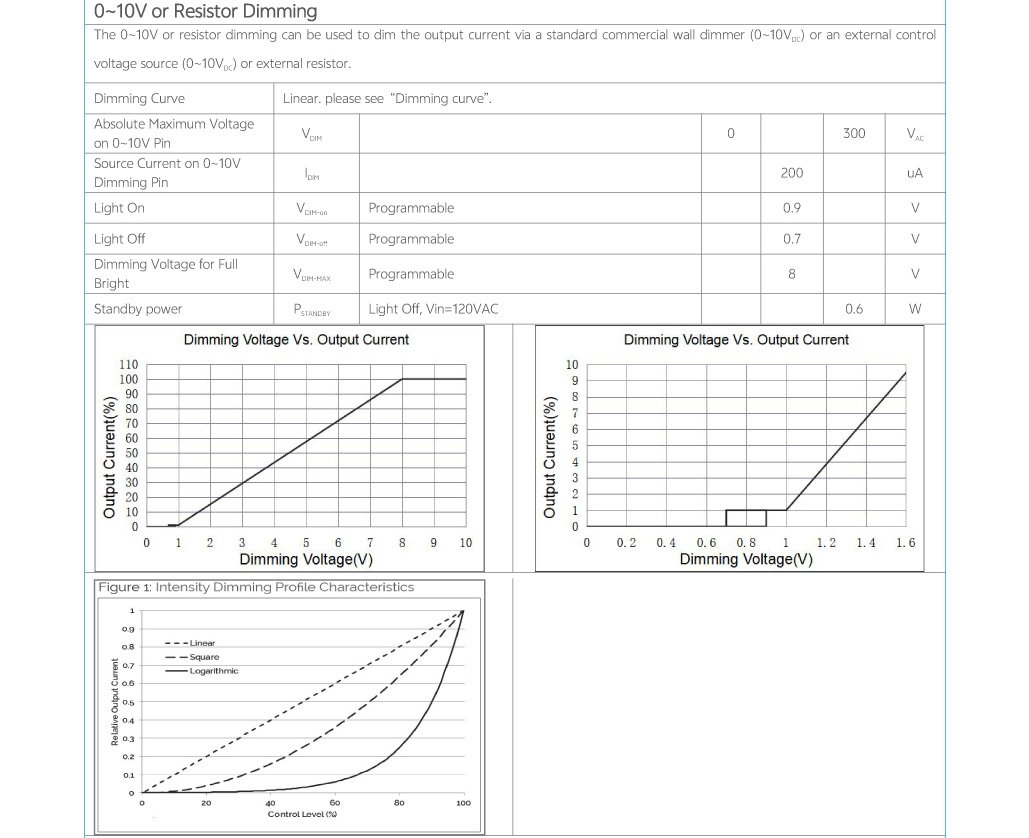

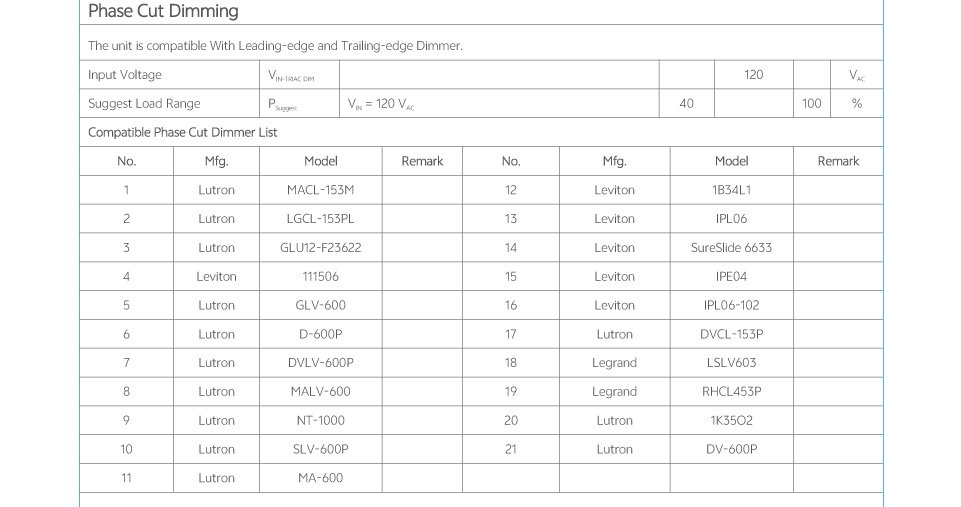

• Five‐in‐one dimming: 0-10V,1-10V,MLV,ELV,TRIAC
• Compact design, Gray PC case

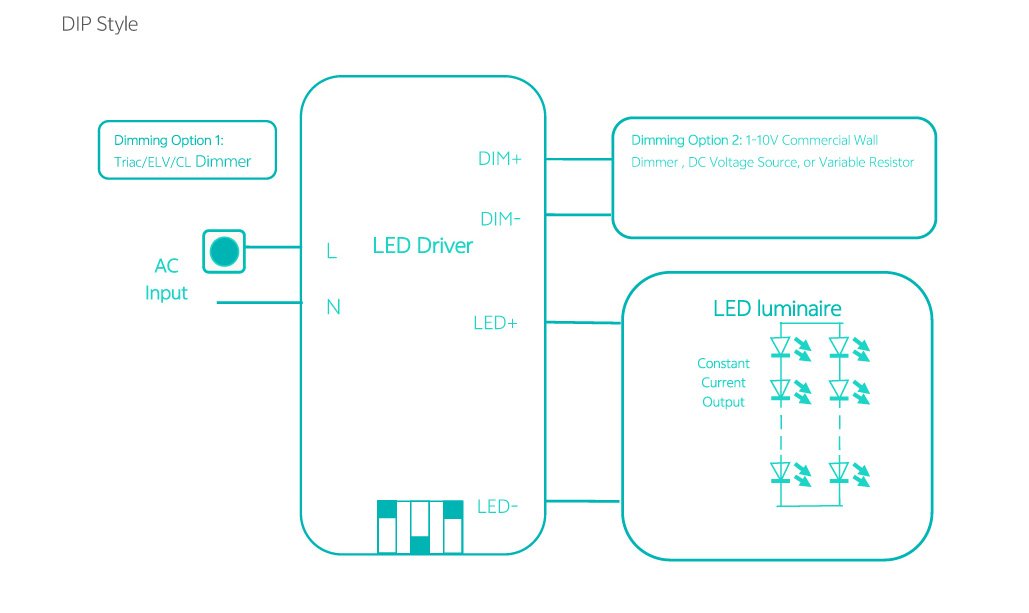

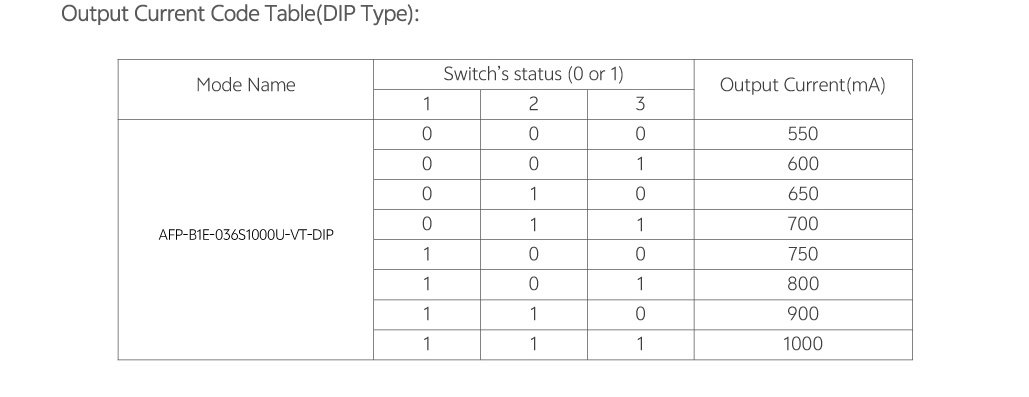

• Selectable output current by 8 positions DIP switch(DIP Style)

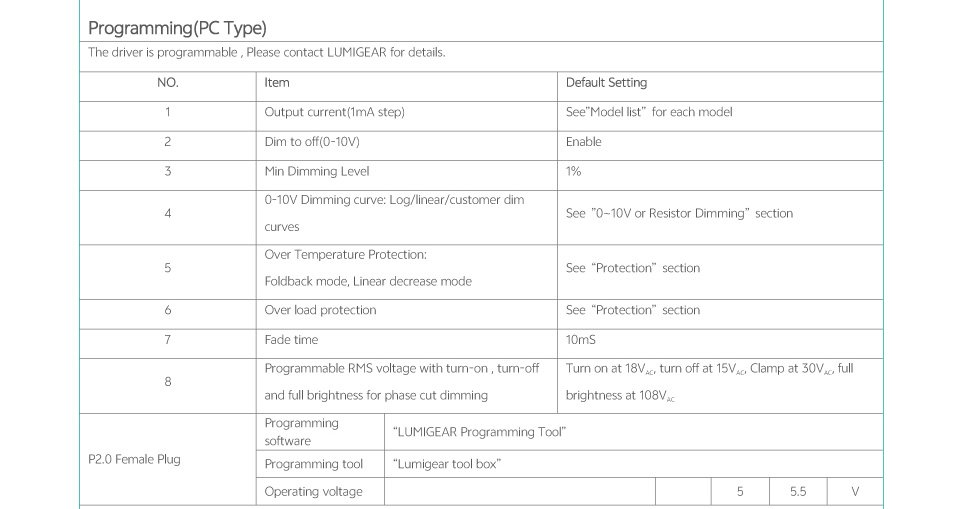

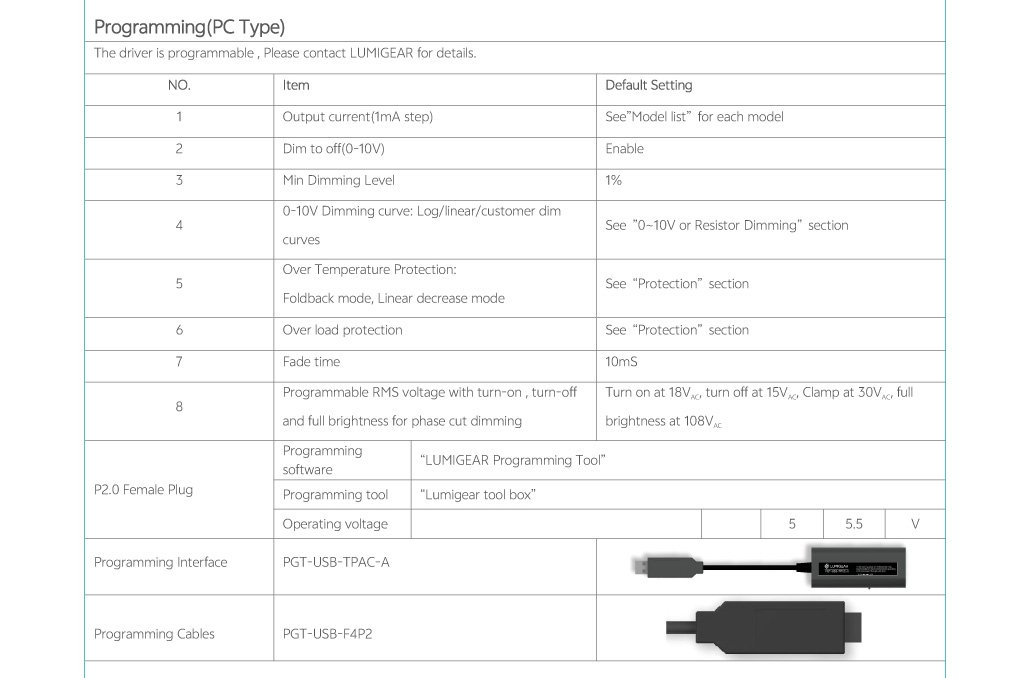

• External current select switch with programming feature, please contact LUMIGEAR for details(PC Style)

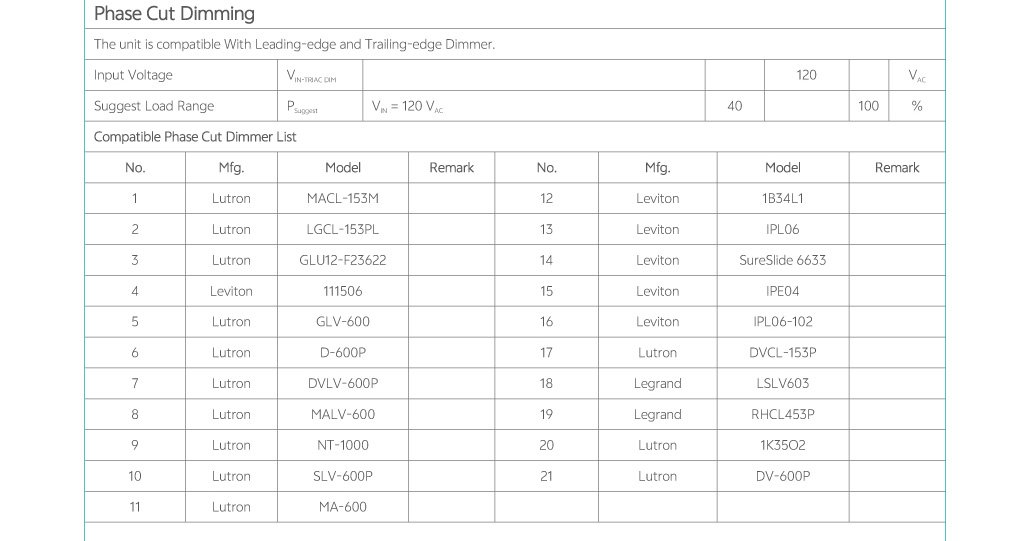

• Comply with phase cut dimming and isolated 0-10V dimming, dim down to true 1%
• Suitable for indoor use
• Flicker free, excellent camera compatibility

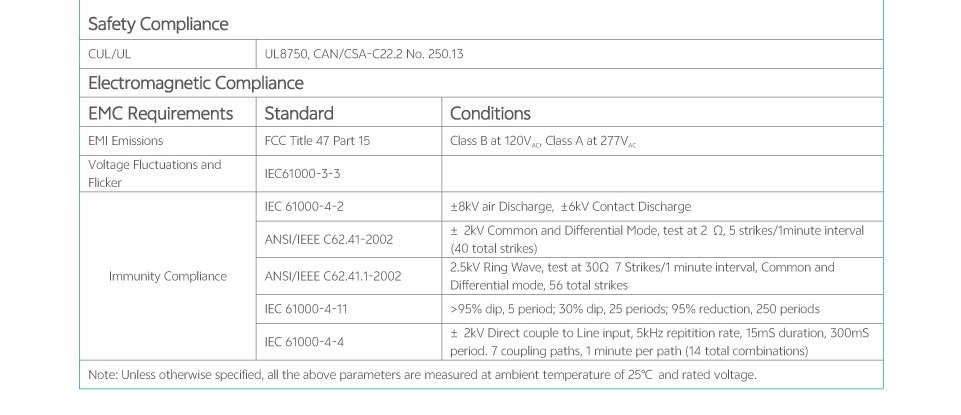

• UL Class2,Class P
• Combination Wave 2KV, Ringwave 2.5KV

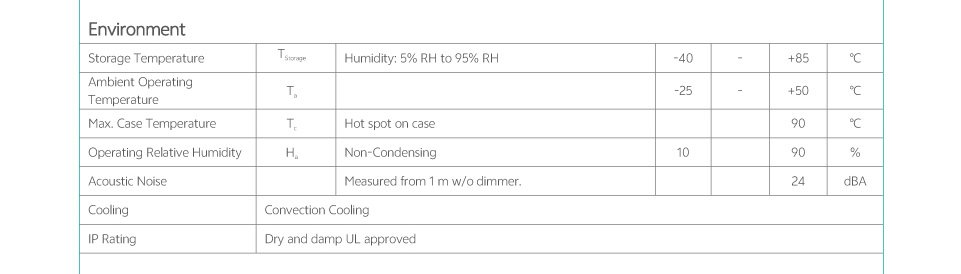

• Operating temperature: -25℃~+50℃
• Comply with IEEE1789, UL8750

             .           .
