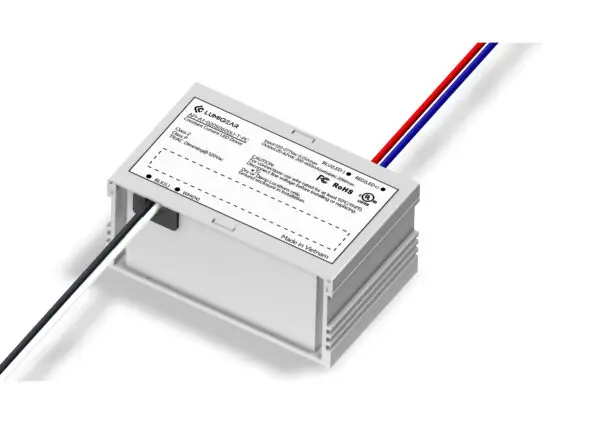

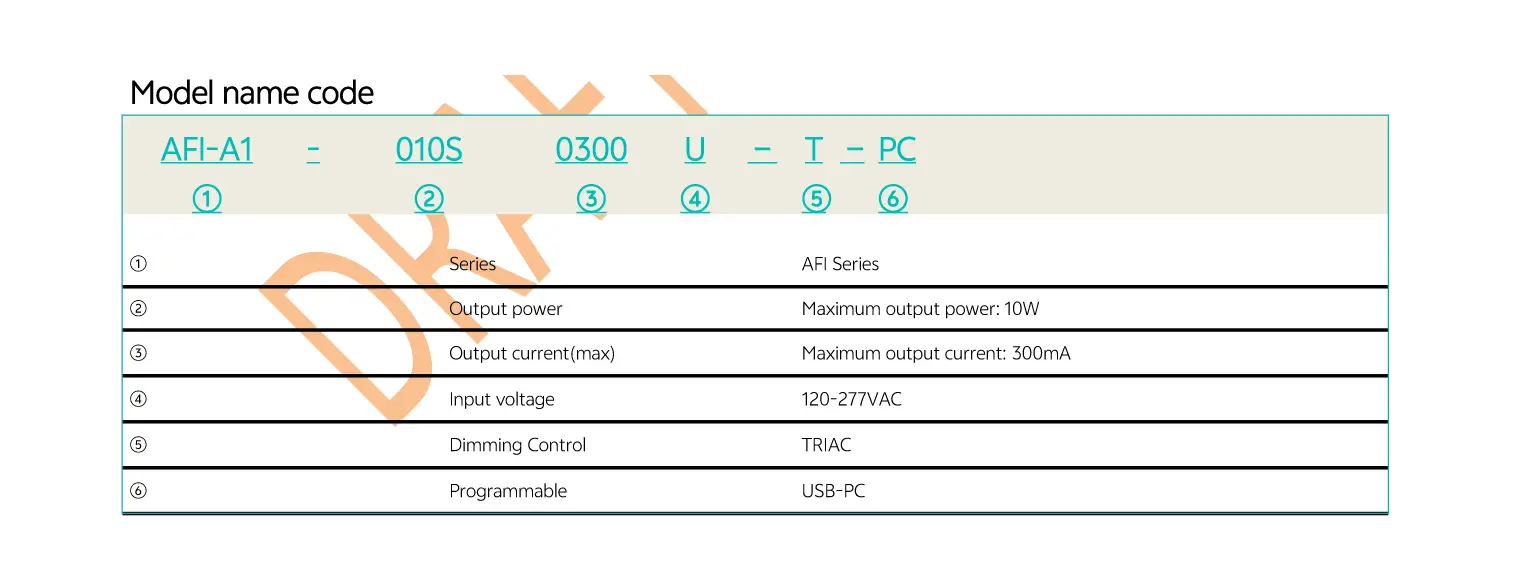

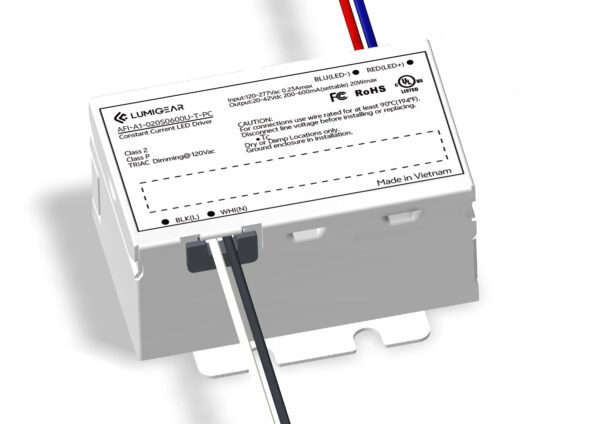

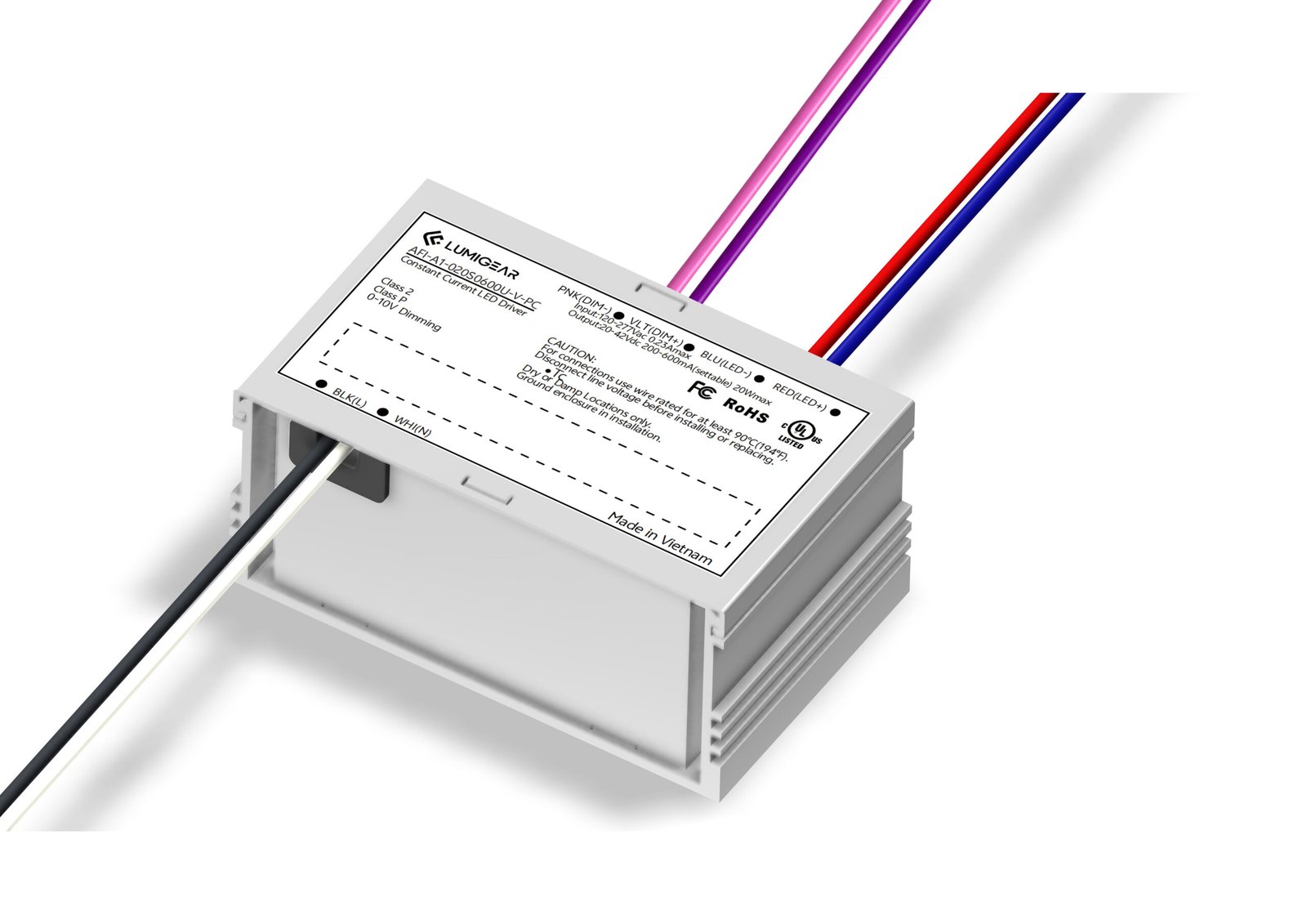

AFI-A1-10W|20W

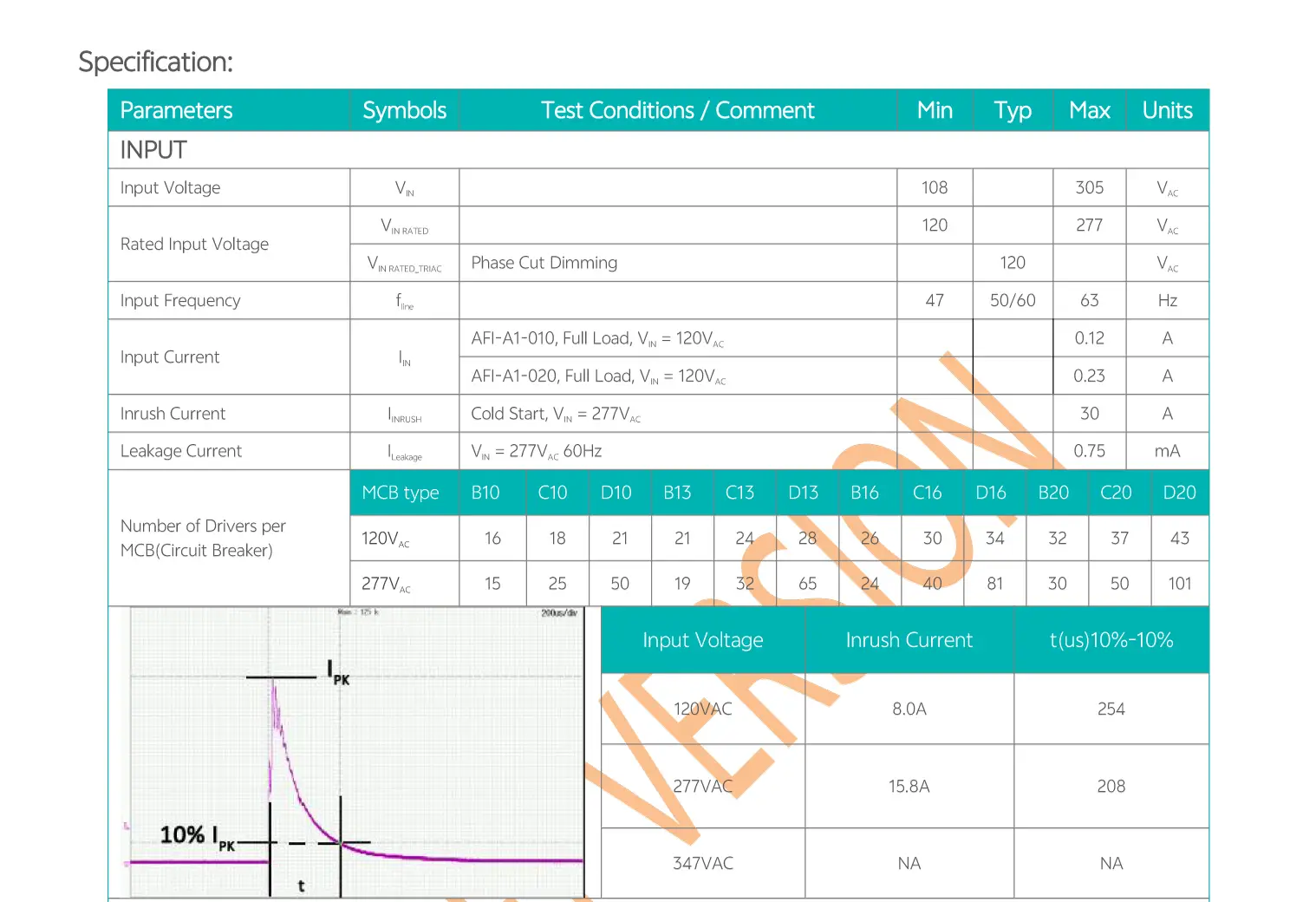

• Universal AC Input Voltage(120-277VAC, Triac dimming@120VAC)
• Compact design, silicone potted for better thermal performance

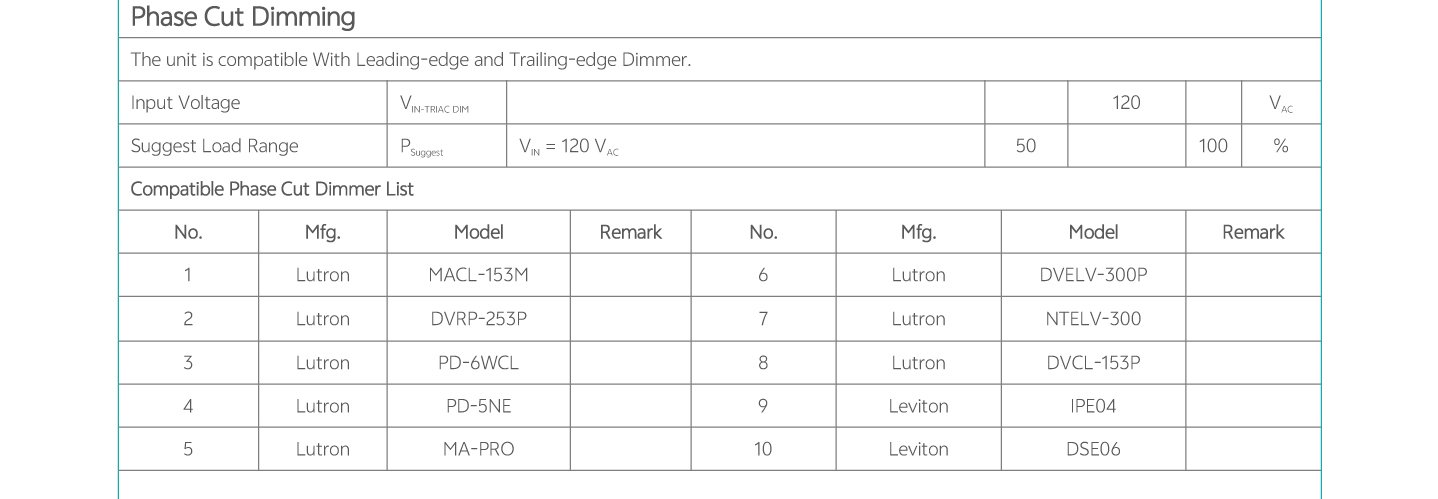

• Phase cut dimming, dim down to 1%
• Suitable for indoor use

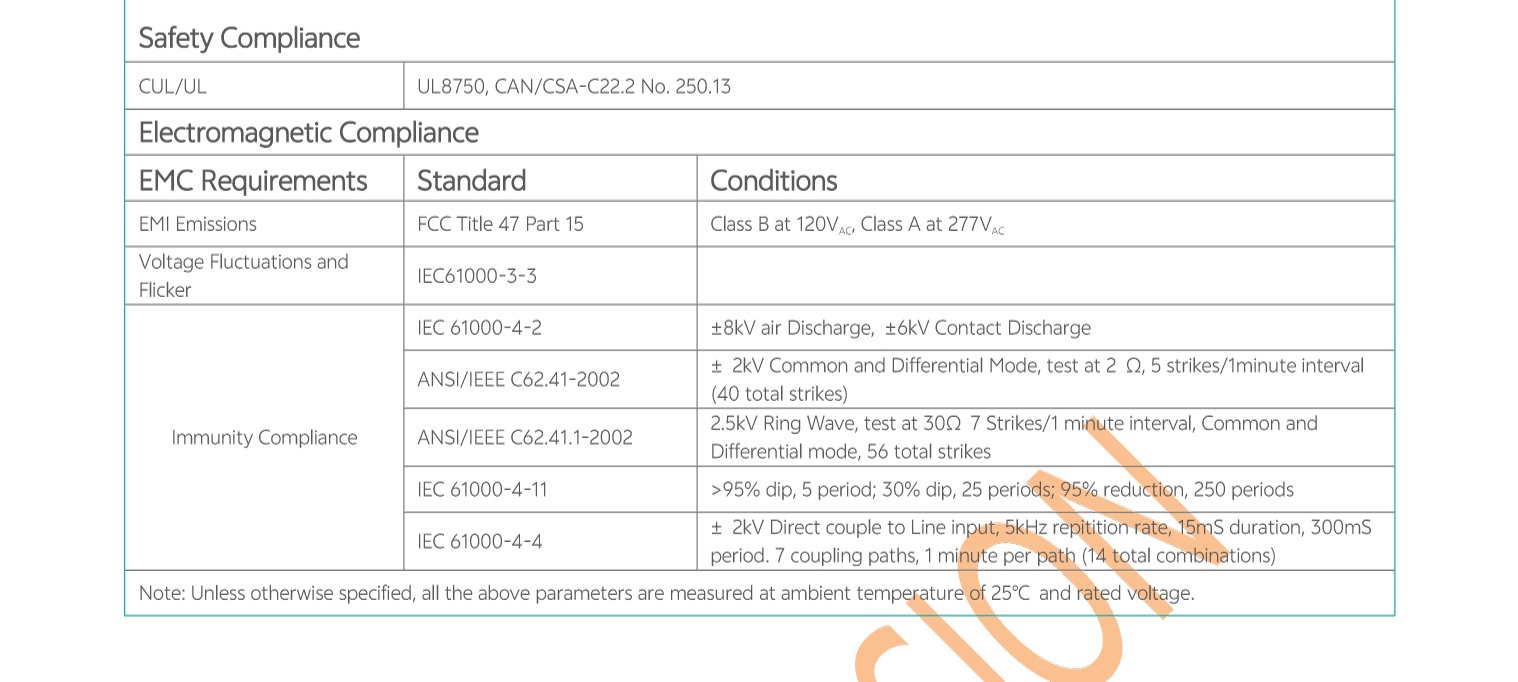

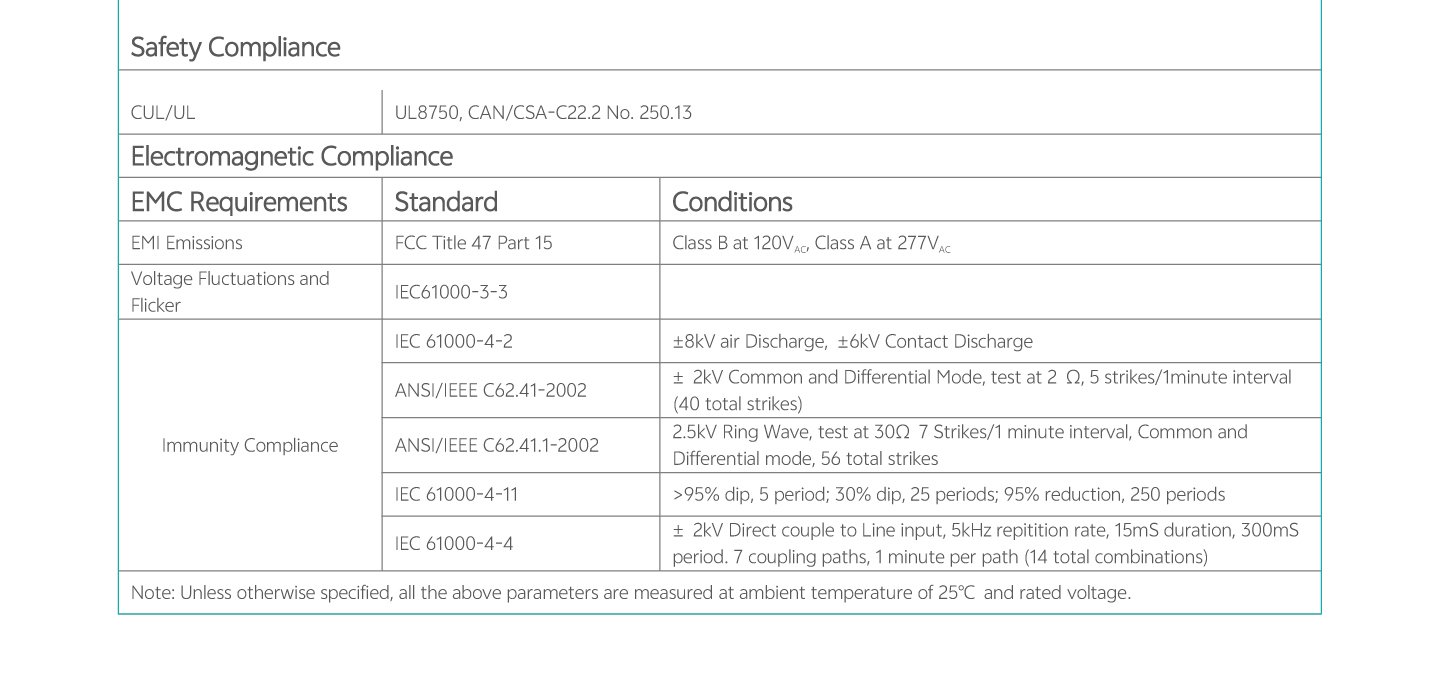

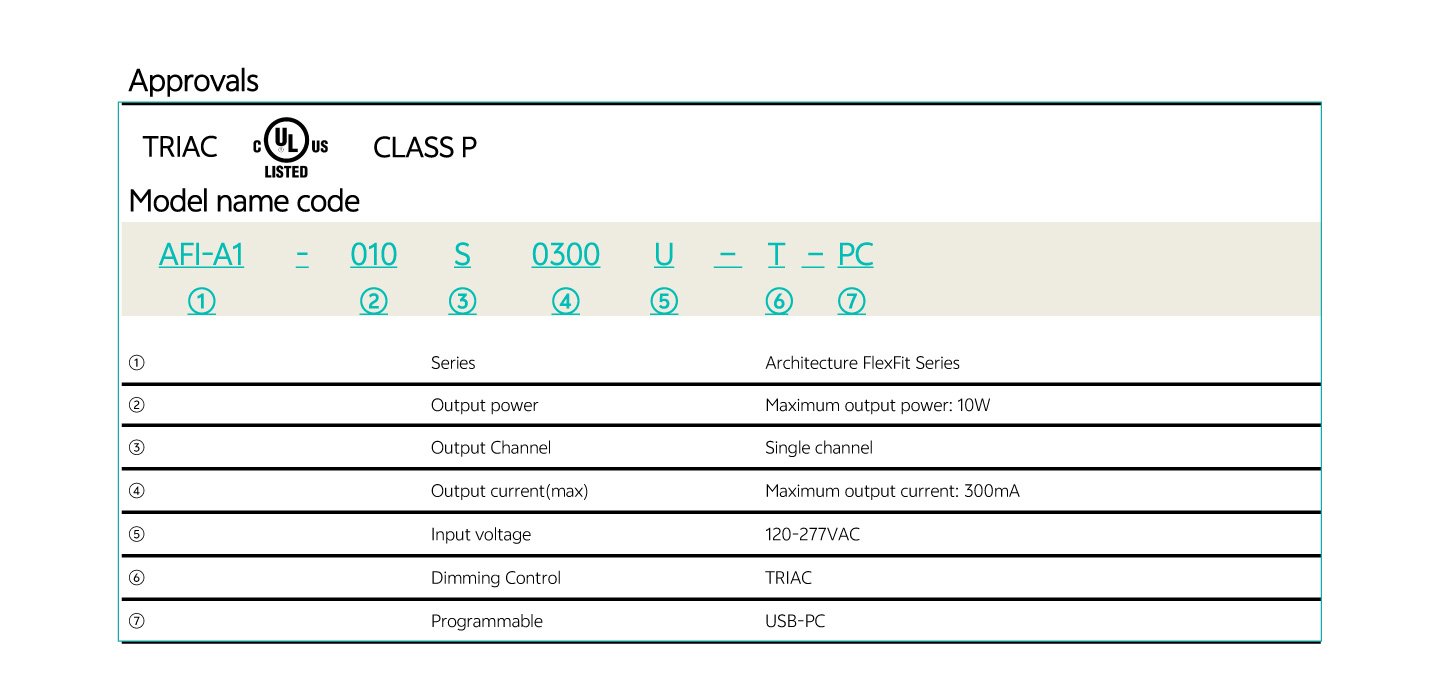

• UL Class2, Class P
• Combination Wave 2KV, Ringwave 2.5KV

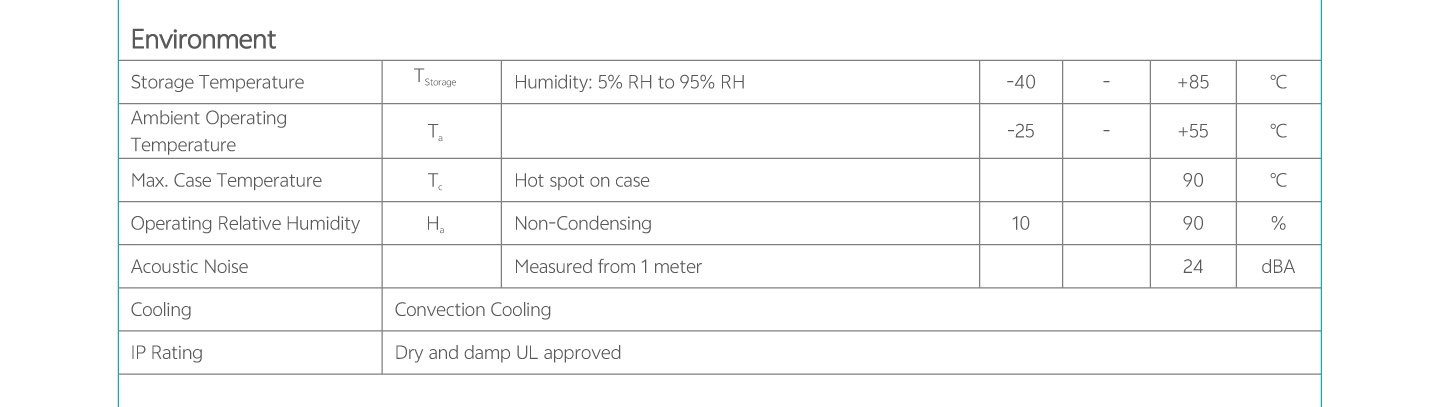

• Operating temperature: -25℃~+55℃
• Comply with Title 24, UL8750

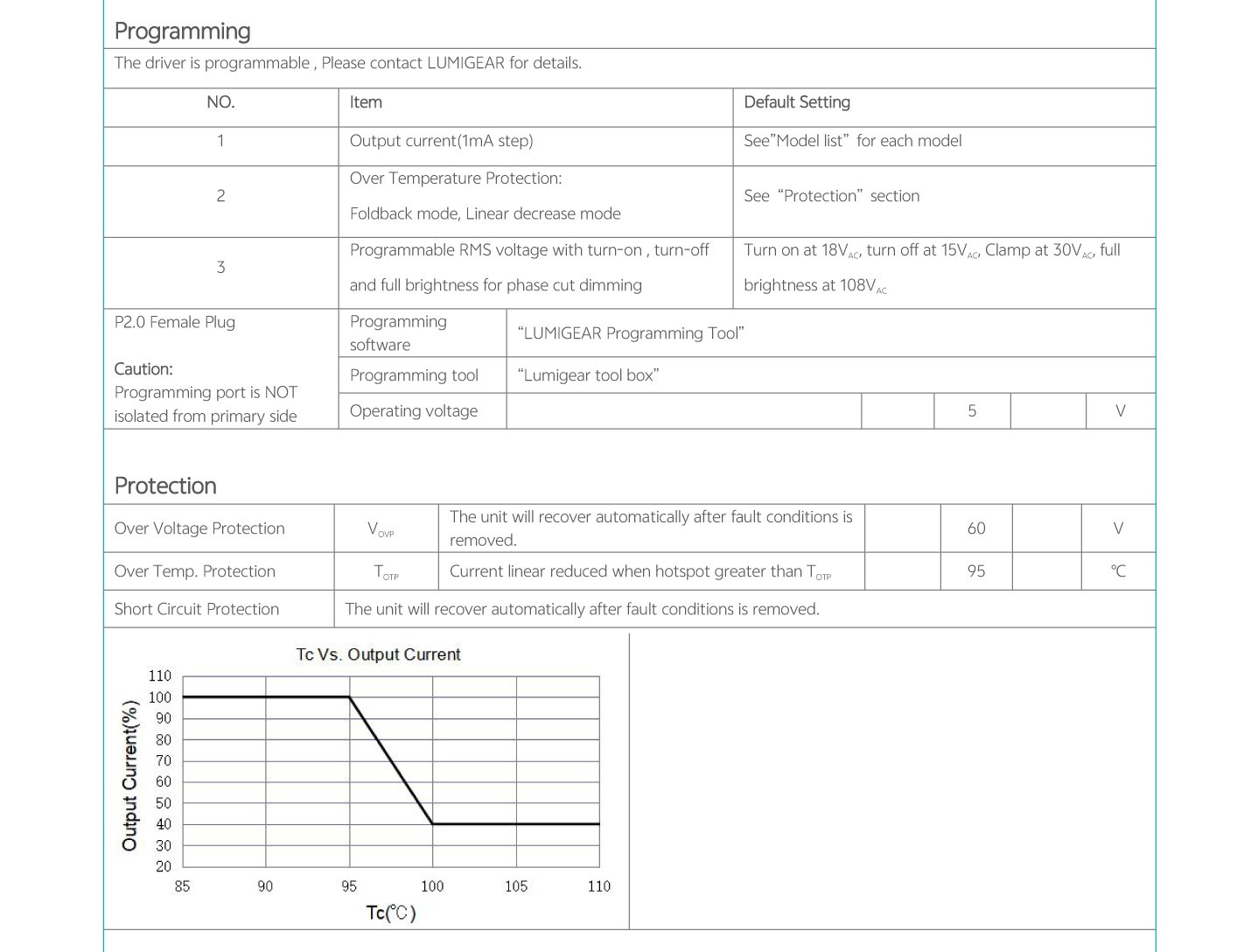

Programmable features:

• Output current(1mA step)
• Over Temperature Protection: Foldback mode, Linear decrease mode
• Programmable RMS voltage with turn-on , turn-off and full brightness
