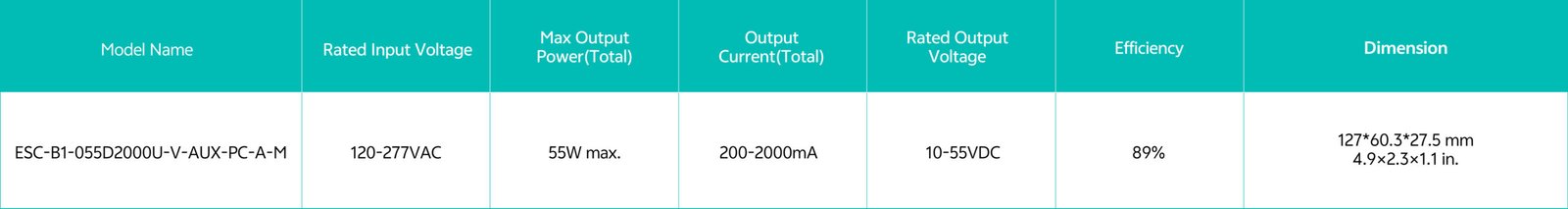

ESC-B1-050D2000U-V-AUX-PC-A-M

• Universal AC input voltage(120-277VAC)
• Compact form factor, metal sheet case

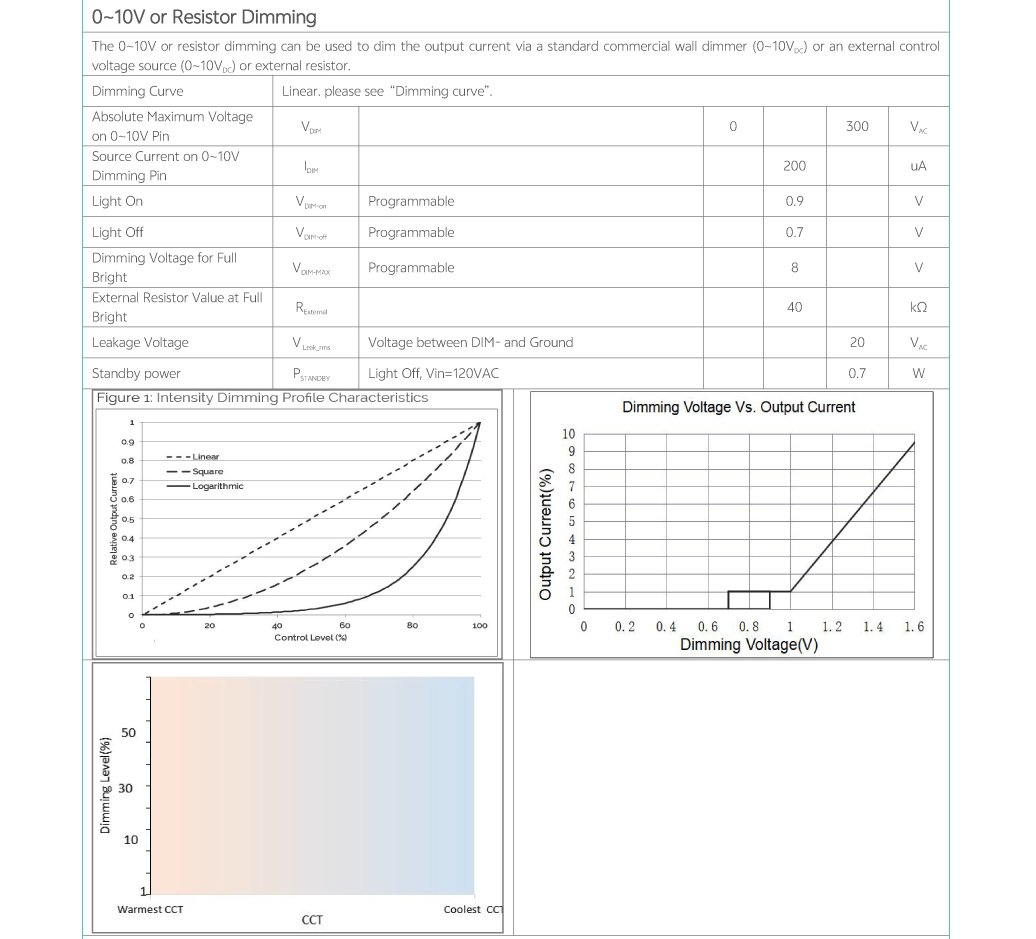

• Two Isolated 0-10V dimming Interfaces, dim down to true 1%
• Suitable for indoor use
• Flicker free, excellent camera compatibility

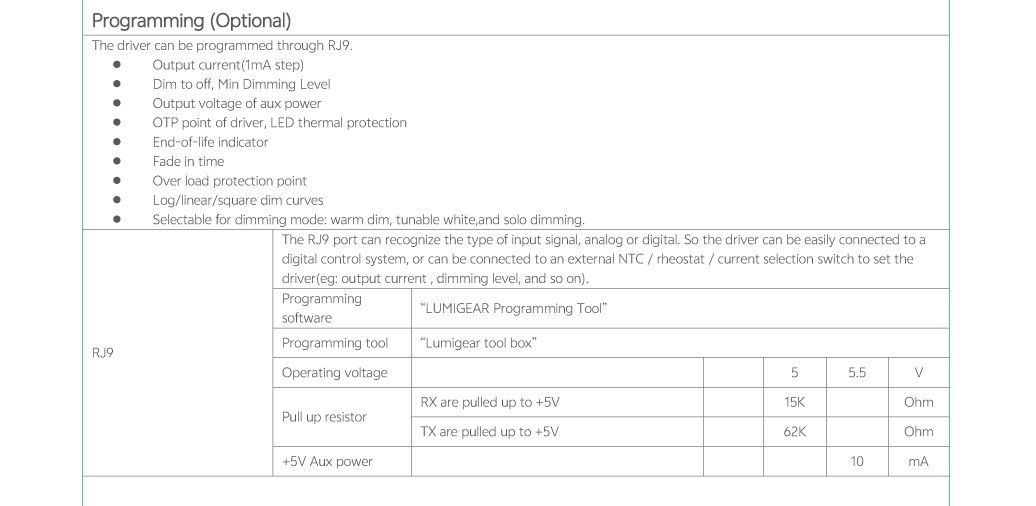

• Programmable feature:
• Output current, dim to off, min dimming level, output voltage of aux power

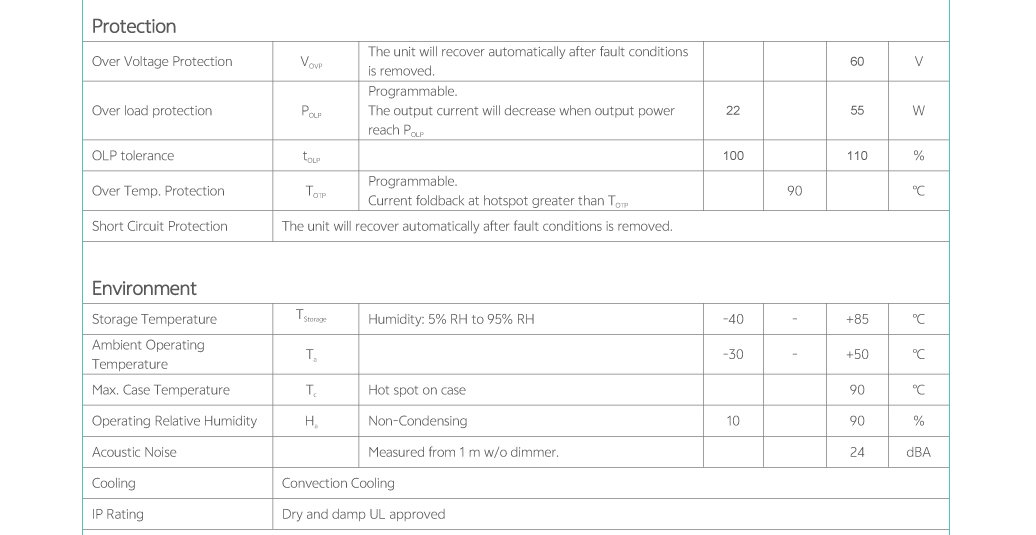

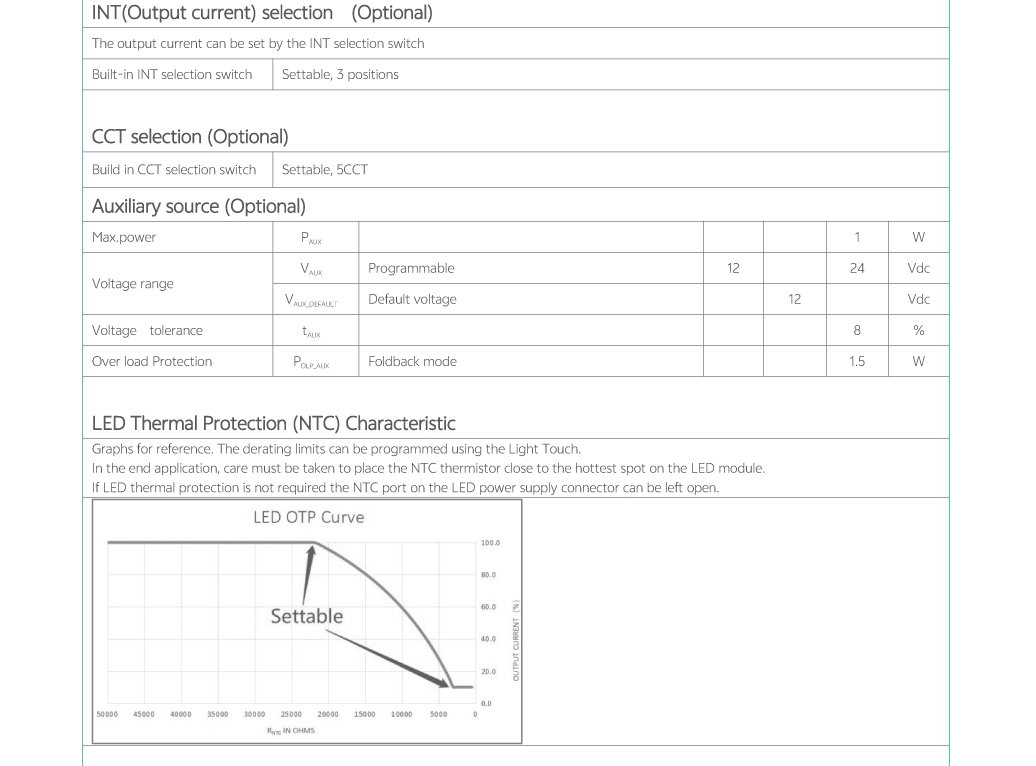

• OTP point of driver , LED thermal protection
• End-of-life indicator, fade in time, over load protection point
• Log/linear/square dim curves
• Selectable for dimming mode: warm dim, tunable white, and solo dimming.

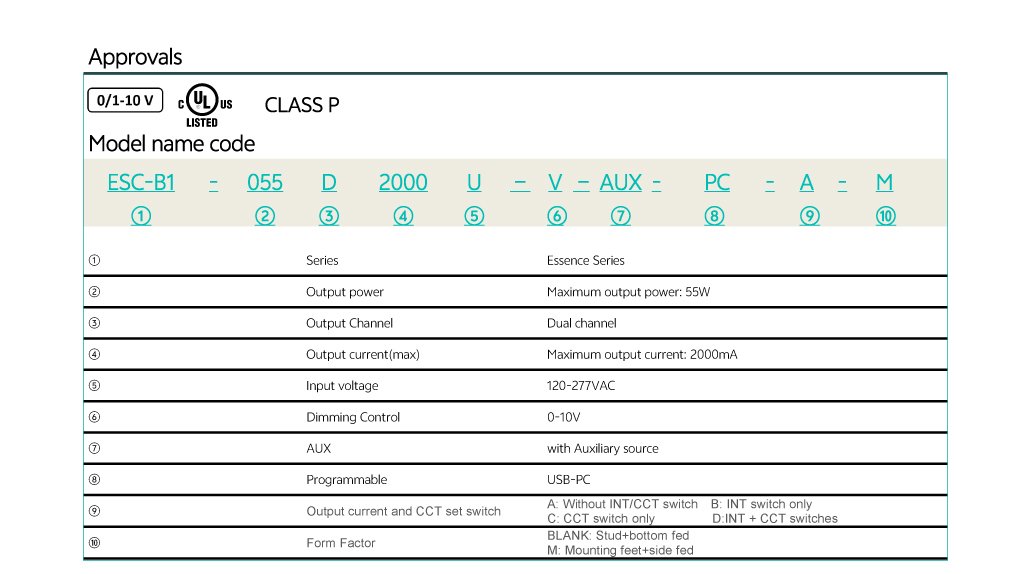

• UL Class2, Class P
• Operating temperature: -30℃~+50℃

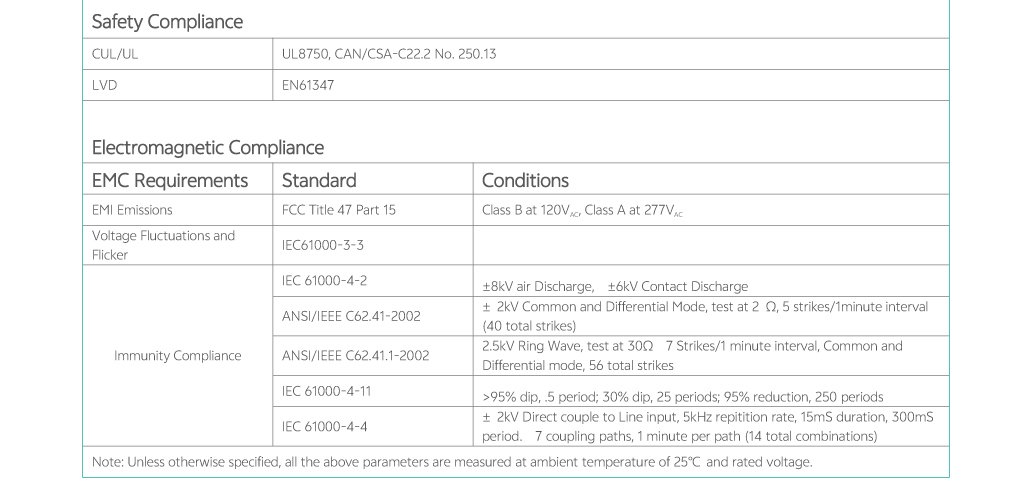

• Comply IEEE1789, UL8750

             .           .
